Product Description:

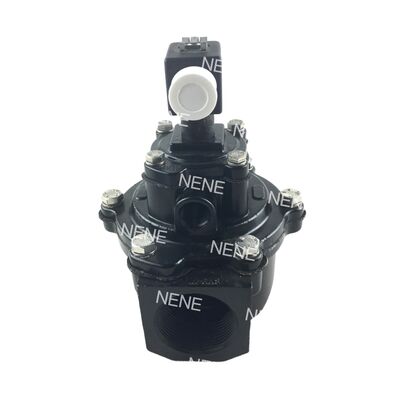

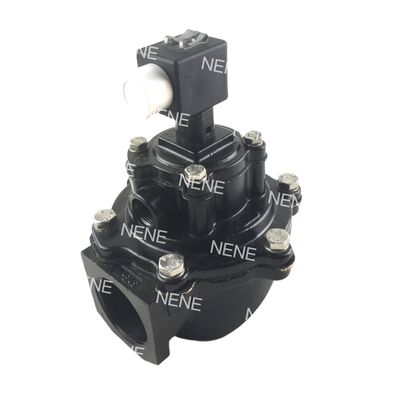

The MECAIR 200 Series is a collection of diaphragm valves engineered specifically for dust collector systems. These valves are particularly suited for reverse pulse-jet cleaning methods used on filter bags, cartridges, ceramic filters, and sintered metal fiber filters. Their design incorporates a 90° angle between the inlet and outlet ports, which allows for a compact installation and ensures efficient operation.
This series is available in various sizes ranging from 3/4” to 2½” and features female threaded Gas connections. The MECAIR 200 Series is offered in two primary types to meet different operational needs:
- VNP Type: Comes with an integrated solenoid pilot for streamlined control.
- VEM Type: Equipped with a remote pneumatic connection for flexible installation options.
These valves are an excellent choice for applications that demand rapid opening, high flow capacity, and reliable performance even in challenging and harsh environments.
Features:
Fast Opening Time: The optimized design guarantees a quick response, enabling efficient and effective cleaning processes.
High Flow Capacity: With elevated Kv values, the system enhances pulse efficiency while minimizing air consumption.
Corrosion Resistant: Constructed with a die-cast aluminum body featuring anodized protection, complemented by stainless steel bolts and screws for extended durability.
Flexible Diaphragm Options: Standard diaphragms are made from NBR, with optional Viton or Nitrile materials available to accommodate different temperature ranges and media types.
Compact Design: The product's small footprint allows for easy installation even in confined or limited spaces.
ATEX Certified Options Available: Suitable for use in explosive atmospheres, ensuring safety and compliance with industry standards.
Technical Parameters:
| Diaphragm Material |
Standard NBR |
| Operating Pressure |
0.5 – 7.5 Bar |
| Body Material |
Die-cast Aluminum, Anodized |
| Medium |
Filtered Compressed Air, Oil-free |
| Color |
Black |
| Protection Class |
IP65 |
Applications:
Pulse-jet Baghouse Dust Collectors
Pulse-jet baghouse dust collectors are advanced filtration systems designed to effectively remove dust and particulate matter from industrial air streams. They utilize a pulse of compressed air to clean the filter bags, ensuring continuous operation and high efficiency without interrupting the airflow.
Cartridge Filter Cleaning Systems
Cartridge filter cleaning systems provide a reliable solution for maintaining the performance of cartridge filters used in various industrial applications. These systems employ different cleaning mechanisms, such as reverse air or pulse-jet cleaning, to prevent filter clogging and extend filter life.
Ceramic or Metal Fiber Filter Cleaning
Cleaning technologies for ceramic or metal fiber filters focus on preserving filter integrity while removing accumulated dust and debris. These filters, known for their durability and high-temperature resistance, require specialized cleaning methods to maintain optimal filtration performance.
Industrial Air Pollution Control Systems
Industrial air pollution control systems encompass a variety of technologies and equipment designed to reduce emissions and improve air quality in manufacturing and processing facilities. These systems include dust collectors, scrubbers, and filters that comply with environmental regulations and protect worker health.
Support and Services:
Our Pulse Jet Valves are designed to deliver reliable and efficient performance in a variety of industrial applications. For technical support, please ensure you have the model number and specifications of your valve ready when seeking assistance.
We offer comprehensive services including installation guidance, maintenance tips, troubleshooting, and repair services to maximize the lifespan and efficiency of your Pulse Jet Valves.
Regular maintenance is recommended to prevent common issues such as diaphragm wear or solenoid coil failure. Replacement parts are available to ensure minimal downtime.
For detailed technical documentation, including installation manuals, wiring diagrams, and performance data, please refer to our online resources or contact our support team.
Our experts are committed to providing prompt and professional support to help you optimize your system's performance using our Pulse Jet Valves.
Packing and Shipping:
Our Pulse Jet Valves are carefully packaged to ensure maximum protection during transit. Each valve is securely wrapped in anti-static foam and placed inside a sturdy, corrugated cardboard box. Additional cushioning materials are used to prevent movement and absorb shocks, ensuring the product arrives in perfect condition.
For shipping, we offer multiple options including standard ground, expedited, and international delivery. All shipments are tracked and insured for your peace of mind. Our logistics partners are selected based on reliability and speed to guarantee timely and safe delivery of your Pulse Jet Valves.
Before dispatch, each Pulse Jet Valve undergoes a thorough quality inspection to ensure it meets our strict standards. Packaging is labeled with handling instructions and product details to facilitate smooth processing through customs and warehouses.
If you have any special packaging or shipping requirements, please contact our customer service team, and we will be happy to accommodate your needs.
