Product Description:

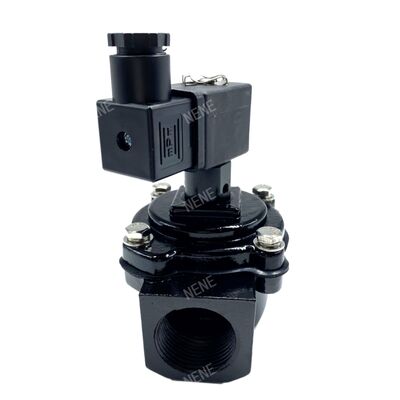

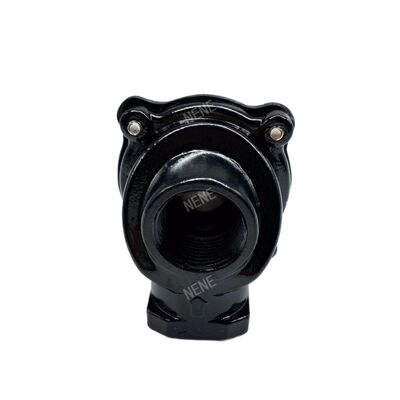

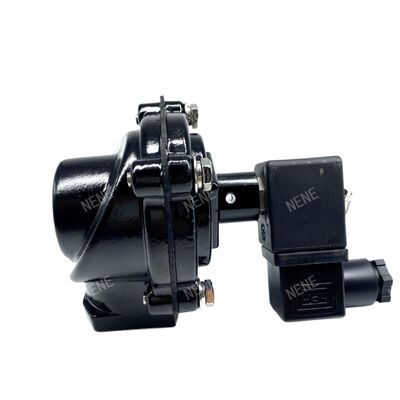

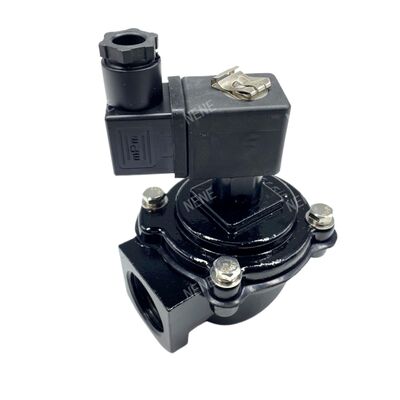

The MECAIR 200 Series comprises a collection of diaphragm valves engineered specifically for dust collector systems. These valves are particularly suited for reverse pulse-jet cleaning applications involving filter bags, cartridges, ceramic filters, and sintered metal fiber filters. One of the key design features is the 90° angle between the inlet and outlet ports, which enables a compact setup while ensuring efficient functionality.
This series is available in various sizes, ranging from 3/4” to 2½”, all equipped with female threaded Gas connections. Within the 200 Series, there are two primary versions designed to meet different operational needs:

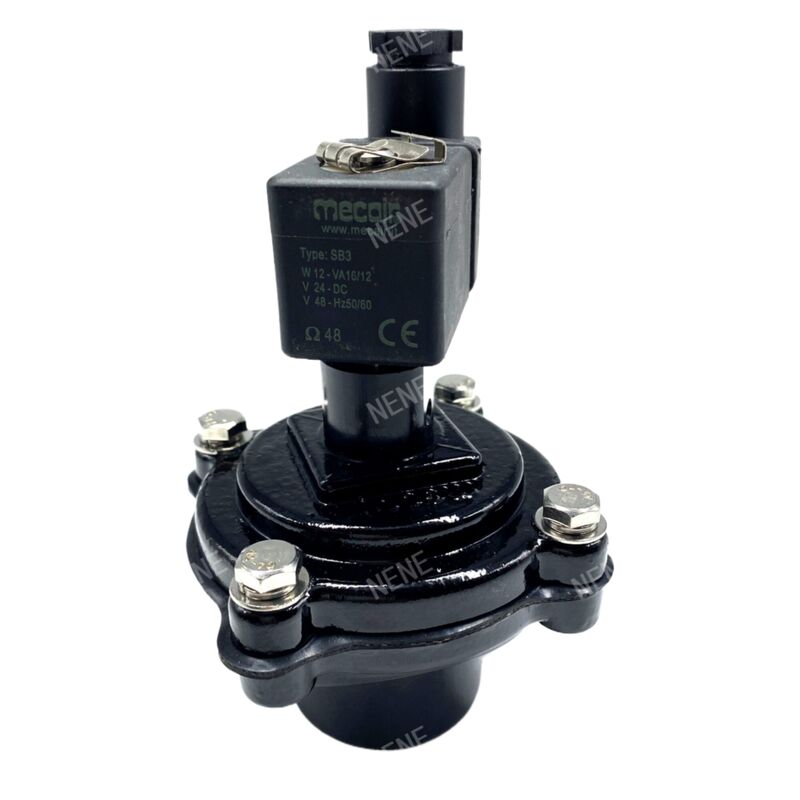

- VNP Type: Comes with an integrated solenoid pilot.
- VEM Type: Features a remote pneumatic connection.
These valves are particularly well-suited for scenarios that demand rapid opening, high flow capacity, and dependable performance, even in challenging and harsh environmental conditions.
Features:
Fast Opening Time: The optimized design guarantees a quick response, allowing for efficient and effective cleaning processes.
High Flow Capacity: Featuring high Kv values, this design enhances pulse efficiency while minimizing air consumption for improved performance.
Corrosion Resistant: Constructed with a die-cast aluminum body that includes anodized protection, complemented by stainless steel bolts and screws to ensure durability.
Flexible Diaphragm Options: Comes standard with NBR, while optional Viton or Nitrile materials are available to accommodate various temperature ranges and media types.
Compact Design: Its space-saving form factor makes it easy to install even in confined or tight areas.
ATEX Certified Options Available: Suitable for installation in explosive atmospheres, meeting strict safety certifications.
Technical Parameters:
| Diaphragm Material |
Standard NBR |
| Color |
Black |
| Medium |
Filtered Compressed Air, Oil-free |
| Operating Pressure |
0.5 – 7.5 Bar |
| Protection Class |
IP65 |
| Body Material |
Die-cast Aluminum, Anodized |
Applications:
Pulse-Jet Baghouse Dust Collectors
Pulse-jet baghouse dust collectors are highly efficient filtration devices used in industrial settings to remove dust particles from the air. These systems utilize a series of fabric filter bags that capture dust, while periodic pulses of compressed air clean the bags to maintain optimal performance.
Cartridge Filter Cleaning Systems
Cartridge filter cleaning systems are designed to maintain the cleanliness and functionality of cartridge filters. These systems often employ methods such as reverse air or pulse-jet cleaning to dislodge accumulated dust, ensuring continuous filtration and reducing maintenance downtime.
Ceramic or Metal Fiber Filter Cleaning
Filters made from ceramic or metal fibers are robust options for high-temperature or corrosive environments. Specialized cleaning techniques are applied to these filters to preserve their integrity and extend their service life, often involving sonic or pulse-jet cleaning technologies.
Industrial Air Pollution Control Systems
Industrial air pollution control systems encompass a variety of technologies aimed at reducing harmful emissions. These systems include dust collectors, scrubbers, and filters that help industries comply with environmental regulations while improving air quality in and around manufacturing facilities.
Support and Services:
Our Pulse Jet Valves are designed for durability and high performance in demanding industrial applications. For technical support, please refer to the product manual for installation, operation, and maintenance guidelines to ensure optimal functionality.
If you encounter any issues with your Pulse Jet Valve, verify that the valve is installed correctly and that all connections are secure. Regular inspection and cleaning will help prevent common problems such as clogging or air leaks.
We offer comprehensive services including troubleshooting assistance, spare parts supply, and repair services to minimize downtime. Our technical team is equipped to provide expert advice on system integration and customization tailored to your specific application needs.
For detailed information on product specifications, compatibility, and performance, consult the datasheets and technical documentation provided with your Pulse Jet Valve. Keeping your product updated with the latest firmware or components is recommended for enhanced efficiency.
Ensure safety by following all recommended procedures and using appropriate protective equipment during maintenance. Proper handling and storage of the Pulse Jet Valve will extend its service life and maintain reliable operation.
Packing and Shipping:
Our Pulse Jet Valves are carefully packaged to ensure maximum protection during transit. Each valve is securely wrapped in anti-static material and placed in a custom-fitted foam insert within a sturdy cardboard box to prevent any movement or damage.
For shipping, we utilize reliable carriers with tracking options to guarantee timely and safe delivery to your location. We also offer various shipping methods to accommodate your needs, including standard, expedited, and express services.
All shipments include detailed documentation, including a packing list and user manual, to assist with installation and operation upon arrival. If you have any special packaging or shipping requirements, please contact our customer service team for personalized solutions.
