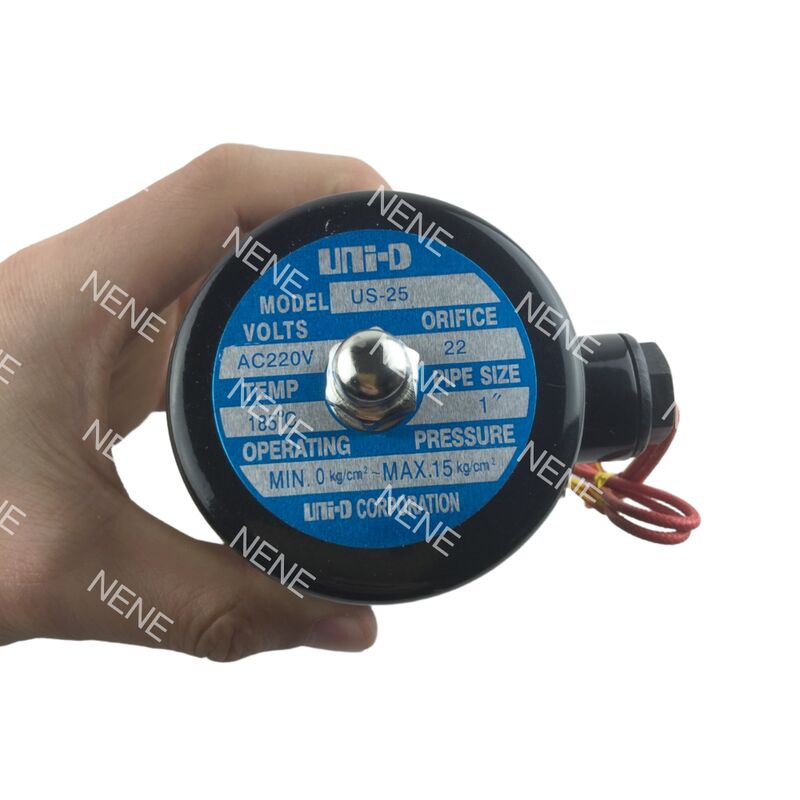

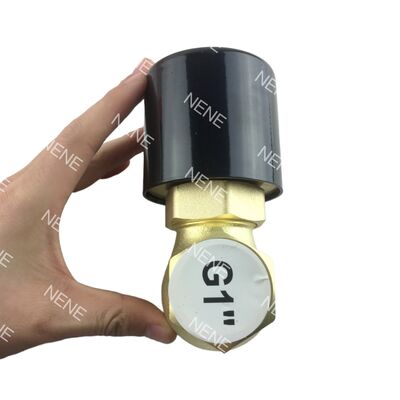

UNID Solenoid Valve US-25 1" ORIFICE 22 mm Normally Closed Solenoid Valve

Product Description:

The UNID US series solenoid valve is designed with a multiplex-drive piston guide mechanism. It is a normally closed valve, meaning that it remains closed when not energized and opens when power is applied. This configuration ensures reliable control of fluid flow in various automated processes.

Constructed from high-quality cast bronze, the valve body provides excellent resistance to corrosion, making it suitable for a wide range of industrial fluid control applications. The robust material guarantees durability and long service life, even in harsh environments.

This series is compatible with different types of media, including water, air, steam, and heavy oil. It supports a fluid temperature range from -5°C up to 185°C when equipped with PTFE seals, ensuring versatile use across many industries.

To accommodate international piping standards, the valves come with standard threaded connections such as BSPT, NPT, and BSP. Additionally, the coils are available in standard voltages of 110VAC, 220VAC, and 24VDC, with custom voltages provided upon request to meet specific requirements.

The UNID US series solenoid valve is extensively utilized in fields like automation equipment, HVAC systems, steam pipelines, and fuel oil delivery networks, demonstrating its adaptability and reliability in critical industrial applications.

Features:

This valve features a reliable multiplex-drive piston structure designed specifically for handling high-pressure applications while effectively preventing clogging. Its robust design ensures consistent performance even under demanding conditions.

Constructed with a cast bronze valve body, the valve offers excellent corrosion resistance and long-lasting durability. This high-quality material ensures that the valve can withstand harsh environments and maintain its integrity over time.

Equipped with high-temperature seals made from PTFE combined with 15% glass fiber, the valve can resist temperatures up to 185°C. This makes it perfectly suitable for use with hot fluids, maintaining a secure seal without degradation.

The valve is compatible with multiple media, including water, air, steam, and heavy oil. It supports a wide range of operating pressure differentials, accommodating diverse application requirements. Please refer to the technical data for detailed specifications.

Available in multiple port sizes ranging from 1/2" to 2", the valve offers flow coefficients (Cv) from 4.0 to 48. This range allows it to meet various flow demands and system specifications.

The maximum operating pressure differential varies depending on the fluid: for water and air, it is up to 15 kgf/cm², while for steam and heavy oil, it is up to 10 kgf/cm². These values can differ by model, so selecting the appropriate version is important.

For more demanding applications, optional high-pressure versions are available, capable of handling 20, 30, or 40 kgf/cm². When placing an order, please specify the type of fluid to ensure the correct configuration.

The coil voltage tolerance is designed for stable operation, with an allowance of ±10% for AC and ±1% for DC voltages. This tolerance ensures reliable performance under varying electrical conditions.

Installation is made convenient through threaded connections, compatible with BSPT, NPT, and BSP standards. This flexibility simplifies integration into a wide range of piping systems.

Additionally, the valve's compact and lightweight design makes it easy to incorporate into existing setups without added bulk or complexity.

Technical Parameters:

This pneumatic solenoid valve is a reliable water valve, designed as a normally closed solenoid valve with threaded connections for easy installation.

Applications:

Support and Services:

Our Pneumatic Solenoid Valve product is designed to provide reliable and efficient control of air flow in various industrial applications. For technical support, please ensure that you have the model number, specifications, and details of the issue ready to facilitate a quick resolution.

We offer comprehensive services including installation guidance, troubleshooting assistance, maintenance tips, and replacement parts availability. Our technical team is equipped to help you optimize the performance and longevity of your pneumatic solenoid valve.

For maintenance, regularly inspect the valve for any signs of wear or damage, ensure that the electrical connections are secure, and verify that the valve operates smoothly without unusual noises or delays. Cleaning the valve components according to the manual will also help maintain optimal functionality.

Should you require detailed technical documentation, software updates, or training materials, these resources can be accessed through our official support channels. We are committed to providing you with the necessary tools and knowledge to maximize the efficiency of your pneumatic systems.
