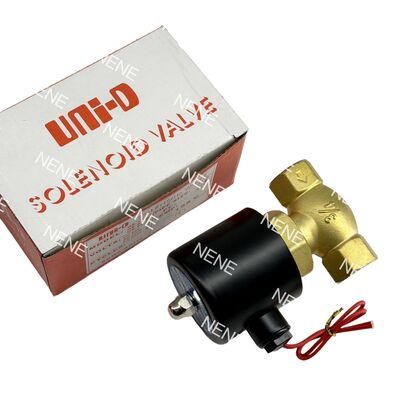

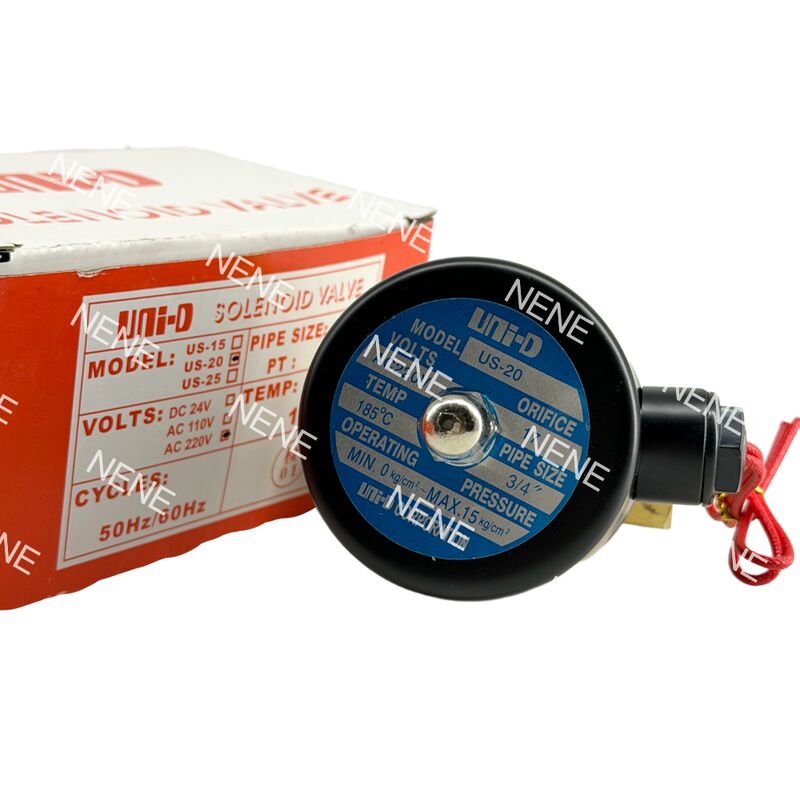

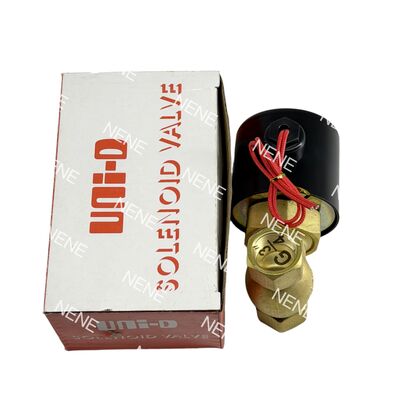

Product Description:
The UNID US series solenoid valve is designed with a multiplex-drive piston guide mechanism. It operates as a normally closed valve, meaning it remains closed when de-energized and opens when powered. This feature ensures reliable control in various industrial settings.
Constructed from high-quality cast bronze, the valve body provides excellent resistance to corrosion. This makes it suitable for handling different types of industrial fluids while maintaining durability and performance over time.
This solenoid valve series is compatible with multiple media, including water, air, steam, and heavy oil. It can withstand fluid temperatures ranging from -5°C up to 185°C when equipped with PTFE seals, making it versatile for various temperature conditions.
To conform with international piping standards, the valve comes with standard threaded connections such as BSPT, NPT, and BSP. Additionally, the coil is available in standard voltages of 110VAC, 220VAC, and 24VDC, with custom voltage options offered upon request.
Due to its robust design and adaptability, the US series solenoid valve is extensively utilized in automation systems, HVAC applications, steam control, and fuel oil pipeline operations.
Features:
The product features a reliable multiplex-drive piston structure designed to handle high pressure environments effectively while preventing clogging. This ensures consistent performance in demanding applications.
Constructed with a cast bronze valve body, the valve offers excellent corrosion resistance and enhanced durability, making it suitable for long-term use in various industrial settings.
Equipped with high-temperature seals made of PTFE combined with 15% glass fiber, the valve can withstand temperatures up to 185°C. This makes it ideal for handling hot fluids safely and efficiently.
The valve demonstrates multi-media compatibility, allowing it to operate with water, air, steam, and heavy oil. It supports a wide range of operating pressure differentials, detailed in the accompanying technical specifications.
Available in multiple port sizes ranging from 1/2" to 2", the valve offers flow coefficients (Cv) between 4.0 and 48 to meet various flow requirements across applications.
The maximum operating pressure differential for water and air is up to 15 kgf/cm², while for steam and heavy oil it reaches up to 10 kgf/cm², depending on the specific model.
Optional high-pressure versions are available at 20, 30, and 40 kgf/cm². Customers are advised to specify the type of fluid when placing an order to ensure the correct version is provided.
The coil voltage tolerance is designed for stable operation, with AC tolerance at ±10% and DC tolerance at ±1%, accommodating fluctuations in power supply.
For flexible installation options, the valve supports threaded connections including BSPT, NPT, and BSP standards.
Its compact and lightweight design allows for easy integration into various systems, enhancing versatility and convenience during installation.
Technical Parameters:
| Tube |
Stainless Steel |
| Body |
Cast Bronze |
| Coil |
Special Copper Wire (H) |
| Spring |
Stainless Steel |
| Core Needle |
Stainless Steel |
| Piston |
Brass |
| Bonnet/Nut |
PTFE |
| Plug |
PTFE + 15%GF |
Applications:
Industrial process control plays a crucial role in ensuring efficiency and safety across various manufacturing and production environments. By automating and monitoring critical operations, industries can achieve precise regulation of their processes.
Heating, ventilation, and air conditioning (HVAC) systems are essential for maintaining comfortable and controlled environments in both commercial and industrial settings. These systems regulate temperature, humidity, and air quality to meet specific operational needs.
Steam heating equipment is widely utilized for its reliable and efficient transfer of heat. This type of equipment is integral in numerous applications requiring consistent thermal management.
Fuel burner and transfer systems are critical components in energy generation and heating applications. They facilitate the effective delivery and combustion of fuel to produce the necessary heat or power.
Water treatment and supply systems ensure the availability of clean and safe water for industrial processes as well as for human consumption. Proper management of water resources is vital for both operational efficiency and environmental protection.
These technologies and systems find extensive applications in key sectors such as the petrochemical industry, power generation, and metallurgy. Each industry relies on specialized equipment and control mechanisms to optimize production and maintain safety standards.
Support and Services:
Our Pneumatic Solenoid Valve product is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We provide comprehensive assistance including installation guidance, troubleshooting, and maintenance advice to help you get the most out of your valve system.
Technical support services include detailed product documentation, application consulting, and customized solutions to meet your specific pneumatic control needs. Our experts are available to assist with system design recommendations, operational optimization, and resolving any technical issues that may arise during the lifecycle of the product.
We also offer training sessions and workshops to help your team understand the functionality and best practices for using Pneumatic Solenoid Valves effectively. Regular updates on product improvements and software upgrades are provided to ensure your system remains up-to-date and efficient.
For maintenance, we supply genuine replacement parts and provide guidance on routine checks to prolong the service life of your pneumatic valves. Our aim is to minimize downtime and maximize reliability through proactive support and responsive service.
Packing and Shipping:
Product Packaging and Shipping for Pneumatic Solenoid Valve
The Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and maintain product integrity. Each valve is individually wrapped in protective foam and placed in a sturdy cardboard box. The box is then sealed and labeled with product information, handling instructions, and shipping details.
For bulk orders, multiple individually packed units are securely arranged in a larger carton with additional cushioning materials to prevent movement and damage during transit.
We offer various shipping options including standard ground, expedited, and international shipping. All shipments are tracked and insured to guarantee timely and secure delivery.
Upon receipt, customers are advised to inspect the packaging for any signs of damage before opening. In case of any issues, please contact our customer service immediately.
