Product Description:

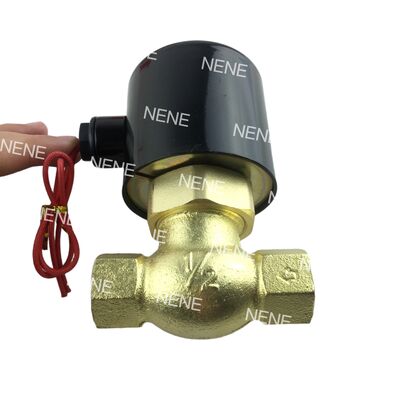

The UNID US series solenoid valve is designed with a multiplex-drive piston guide mechanism. It operates as a normally closed valve, meaning it remains closed when de-energized and opens once energized. This feature ensures precise control in various applications.
Constructed from high-quality cast bronze, the valve body provides excellent resistance to corrosion, making it suitable for handling different industrial fluids. Its robust material composition guarantees durability and reliability under demanding conditions.
This solenoid valve series is compatible with a range of media including water, air, steam, and heavy oil. It can operate efficiently within a fluid temperature range of -5°C to 185°C, utilizing PTFE seals to maintain performance and longevity.
The US series includes standard threaded connection options such as BSPT, NPT, and BSP, adhering to international piping standards. Additionally, coil voltages are commonly available in 110VAC, 220VAC, and 24VDC, with special voltage requirements accommodated upon request.
Thanks to its versatile design and reliable operation, the UNID US series solenoid valve is widely employed in automation equipment, HVAC systems, steam applications, and fuel oil pipelines.
Features:
Reliable Multiplex-Drive Piston Structure
The valve features a dependable multiplex-drive piston design that effectively handles high-pressure conditions while preventing clogging. This structure ensures consistent performance even in demanding environments.
Durable Cast Bronze Valve Body
Constructed from cast bronze, the valve body offers excellent resistance to corrosion and enhances overall durability. This makes the valve suitable for long-term use in various industrial applications.
High-Temperature Seals
Equipped with PTFE seals reinforced with 15% glass fiber, the valve can withstand temperatures up to 185°C. This feature makes it ideal for handling hot fluids safely and efficiently.
Multi-Media Compatibility
The valve is compatible with a range of media including water, air, steam, and heavy oil. It supports a wide operating pressure differential range, allowing versatile application across different systems (refer to technical data for details).
Variety of Port Sizes and Flow Capacities
Available in multiple port sizes ranging from 1/2" to 2", with Cv values between 4.0 and 48, the valve can accommodate various flow requirements to suit specific needs.
Operating Pressure Differential
The maximum operating pressure differential reaches up to 15 kgf/cm² for water and air, and up to 10 kgf/cm² for steam and heavy oil, depending on the model selected.
Optional High-Pressure Versions
For applications demanding higher pressure, optional versions rated at 20, 30, and 40 kgf/cm² are available. Customers are advised to specify the type of fluid when placing an order to ensure optimal configuration.
Coil Voltage Tolerance
The valve coil tolerates voltage fluctuations with ±10% for AC and ±1% for DC, ensuring stable and reliable operation under varying electrical conditions.
Threaded Connection Options
Threaded connections are offered in BSPT, NPT, and BSP standards, providing flexible installation options to fit different piping systems.
Compact and Lightweight Design
Its compact and lightweight construction facilitates easy integration into existing setups, saving space and simplifying maintenance.
Technical Parameters:
| Piston |
Brass |
| Core Needle |
Stainless Steel |
| Spring |
Stainless Steel |
| Bonnet/Nut |
PTFE |
| Body |
Cast Bronze |
| Tube |
Stainless Steel |
| Plug |
PTFE + 15% GF |
| Coil |
Special Copper Wire (H) |
This high temperature solenoid valve features durable materials including a brass piston, stainless steel core needle and spring, and a cast bronze body. Designed as a threaded solenoid valve, it incorporates PTFE components for enhanced chemical resistance and a special copper wire coil (H) for high temperature performance.
Applications:
Industrial Process Control
Advanced industrial process control plays a crucial role in ensuring the efficiency and reliability of various manufacturing and production operations. Through automated monitoring and adjustments, these systems enhance productivity and maintain product quality across numerous industries.
HVAC Systems
Heating, Ventilation, and Air Conditioning (HVAC) systems are essential for maintaining comfortable and safe environments within residential, commercial, and industrial buildings. These systems regulate temperature, humidity, and air quality to optimize living and working conditions.
Steam Heating Equipment
Steam heating equipment is widely used in various sectors to provide efficient thermal energy. It offers a reliable source of heat for processes, space heating, and sterilization, leveraging the high energy content of steam for effective temperature control.
Fuel Burner and Transfer Systems
Fuel burner and transfer systems are integral components in energy production and industrial heating applications. They facilitate the controlled combustion of fuels and the safe transfer of energy, ensuring operational safety and optimized fuel usage.
Water Treatment and Supply Systems
Water treatment and supply systems manage the purification, distribution, and conservation of water resources. These systems are vital for providing clean water for industrial processes, domestic use, and environmental protection.
Applications in Petrochemical, Power, and Metallurgy Industries
The petrochemical, power generation, and metallurgy industries extensively rely on the aforementioned systems to support their complex operations. Integration of advanced control and support systems enhances safety, efficiency, and sustainability in these critical sectors.
Support and Services:
Our Pneumatic Solenoid Valve product is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We provide comprehensive services including installation guidance, troubleshooting assistance, and maintenance recommendations to help you maximize the efficiency and lifespan of your valve.
For technical inquiries, our experts are available to assist with product specifications, compatibility, and integration into your pneumatic systems. We also offer detailed documentation and user manuals to facilitate easy understanding and operation of the solenoid valve.
In addition, we provide repair and replacement services to address any product defects or operational issues promptly. Regular updates and upgrades are also available to keep your pneumatic solenoid valve functioning with the latest advancements in technology.
Our commitment extends to training and support programs designed to equip your team with the necessary knowledge and skills for effective valve management. We strive to deliver reliable, efficient, and timely support to ensure your pneumatic systems operate smoothly and without interruption.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in anti-static foam and placed inside a sturdy, custom-fitted cardboard box. The box is then sealed securely and labeled with product information, handling instructions, and a barcode for easy tracking. Additional cushioning materials are used as needed to prevent movement and absorb shocks.
Shipping:
We offer reliable shipping options to deliver the Pneumatic Solenoid Valve safely to your location. Products are shipped via trusted carriers with tracking available for all orders. Shipping methods include standard ground, expedited, and express delivery, depending on customer preference and destination. All shipments comply with international shipping regulations and include necessary documentation for smooth customs clearance.
