Product Description:

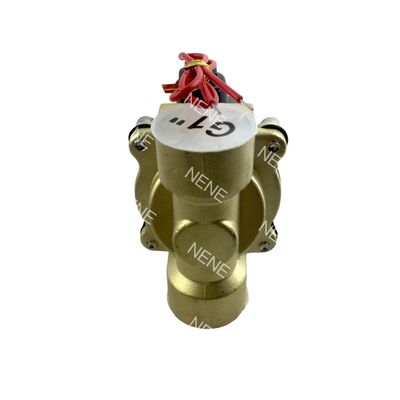

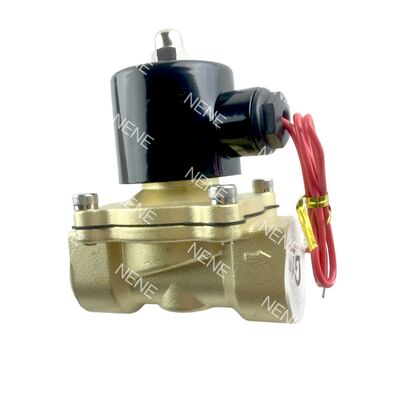

The UNID UW series solenoid valve is designed with a pilot diaphragm-driven mechanism and is a normally closed type. This means the valve remains closed when de-energized and opens upon receiving electrical power. Its design allows it to operate effectively even under zero pressure differential, making it highly versatile for various applications.
The valve bodies are constructed from different materials depending on their size. For sizes ranging from 3/8 inch to 1 inch, forged brass is used, while cast bronze is employed for larger sizes between 1¼ inch and 2 inches. Both materials are chosen for their excellent resistance to corrosion, ensuring a durable and long-lasting product.
Regarding seals, the standard option is NBR, which can withstand temperatures up to 80°C. For requirements involving higher fluid temperatures, optional seals made of Viton or Silicon are available, capable of handling temperatures up to 130°C. The valves feature standard threaded connections such as BSPT, NPT, and BSP to comply with international piping standards.
The coils come in standard voltages of 110VAC, 220VAC, and 24VDC. Additionally, custom voltages can be provided upon request to suit specific project requirements. Due to these features, the UW series solenoid valve is widely utilized in various fields including water treatment, industrial automation, HVAC systems, and light oil transfer applications.
Features:
Pilot Diaphragm Structure
The pilot diaphragm is designed to provide sensitive opening and closing capabilities, ensuring reliable anti-clogging performance. This structure enhances the responsiveness and durability of the system in various operating conditions.
Zero Pressure Differential Operation
This device operates effectively without requiring any minimum pressure differential. It performs smoothly even under zero pressure differential, making it suitable for a wide range of applications.
Material Options
There are dual body material options available to meet diverse application needs. Forged brass is used for sizes ranging from 3/8" to 1", while cast bronze is offered for larger sizes from 1¼" to 2". This variability allows for optimal performance in different environments.
Seal Materials
Multiple sealing materials are provided to accommodate various temperature requirements. The standard seal is NBR, rated up to 80°C. For higher temperature fluids, optional seals such as Viton or Silicon are available, capable of withstanding temperatures up to 130°C.
Compatibility and Operating Range
The pilot diaphragm is compatible with multiple media including water, air, and light oil. It supports a wide operating pressure differential range, which can be referenced in the detailed technical data for precise specifications.
Port Sizes and Flow Capacity
Available port sizes range from 3/8" to 2", with a flow coefficient (Cv) between 2.4 and 48. This variety ensures that different flow requirements can be effectively met.
Maximum Operating Pressure Differential
The maximum operating pressure differential is up to 7 kgf/cm² for air, and up to 5 kgf/cm² for water and light oil, providing robust performance under substantial pressure conditions.
Threaded Connections
For flexible installation, the product supports various threaded connections including BSPT, NPT, and BSP standards.
Coil Voltage Tolerance
The coil voltage tolerance ensures stable operation with an allowance of ±10% for AC voltage and ±1% for DC voltage, contributing to reliable performance in different electrical environments.
Compact and Lightweight Design
The compact design of the pilot diaphragm makes it lightweight and easy to integrate into existing systems, enhancing overall efficiency and convenience.
Technical Parameters:
| Spring |
Stainless Steel |
| Tube |
Stainless Steel |
| Core |
Stainless Steel |
| Diaphragm |
NBR, Viton, Silicon (as Selected) |
| Coil |
Special Copper Wire (H) |
| Body |
Forged Brass (3/8"~1") / Cast Bronze (1¼"~2") |
Applications:
Water Treatment and Supply Systems
This category includes various technologies and infrastructures designed to purify, treat, and distribute water efficiently. These systems ensure that water meets quality standards for consumption and industrial use.
Industrial Automation Equipment
Industrial automation equipment comprises machinery and control systems that operate processes with minimal human intervention. These tools improve productivity, accuracy, and safety across various manufacturing sectors.
HVAC Systems
Heating, Ventilation, and Air Conditioning (HVAC) systems regulate indoor temperature and air quality. They play a vital role in maintaining comfortable and healthy environments in residential, commercial, and industrial settings.
Light Oil Transfer and Burner Systems
These systems focus on the safe transfer and combustion of light oil products. They are essential components in energy production, heating applications, and various industrial processes.
Air Compression and Pneumatic Control Systems
Air compression and pneumatic control systems utilize compressed air to power tools, machinery, and automation devices. They are widely used in manufacturing, processing, and mechanical operations to enhance efficiency.
Food Machinery and Cleaning Equipment
This category covers specialized machines used in food processing as well as equipment designed for cleaning and maintaining hygiene standards. These technologies support food safety and operational productivity.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial applications. To ensure optimal operation, we provide comprehensive technical support and services tailored to meet your needs.
Technical support includes assistance with product selection, installation guidance, troubleshooting, and maintenance procedures. Our team of experts is available to help you understand the specifications and operational parameters to maximize the valve's functionality and lifespan.
We offer detailed product documentation, including user manuals, wiring diagrams, and technical datasheets, to facilitate proper usage and integration into your systems. Additionally, training sessions can be arranged to equip your personnel with the necessary knowledge to operate and maintain the solenoid valves effectively.
For maintenance and repair services, we provide authorized servicing options to ensure your pneumatic solenoid valves remain in optimal condition. Replacement parts and accessories are readily available to support quick and efficient repairs.
Our commitment is to provide continuous support throughout the product lifecycle, ensuring minimal downtime and sustained performance in your pneumatic control applications.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged in a sturdy, corrosion-resistant cardboard box to ensure protection during transit. Inside the box, the valve is securely placed within custom-cut foam inserts to prevent movement and potential damage. Each unit is wrapped in an anti-static bag to protect against moisture and dust. The packaging includes a user manual, warranty card, and a certificate of quality inspection.
Shipping:
We offer worldwide shipping for the Pneumatic Solenoid Valve with reliable carriers to ensure timely delivery. All shipments are fully tracked and insured for your peace of mind. The product is shipped with appropriate labeling and handling instructions to maintain integrity during transportation. Expedited shipping options are available upon request.
