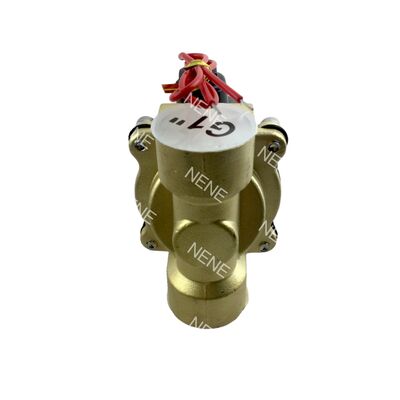

Product Description:

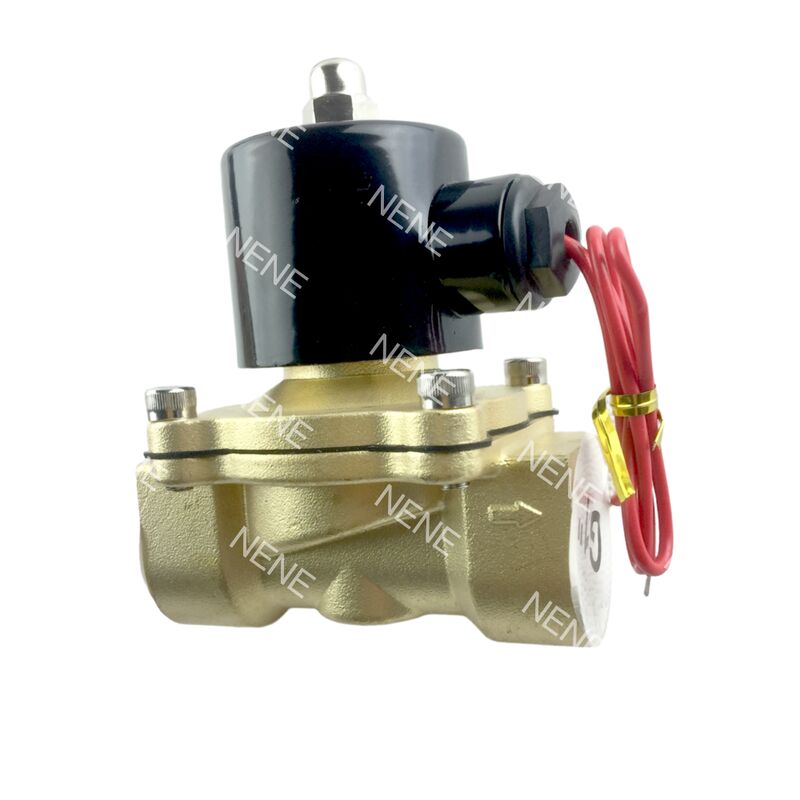

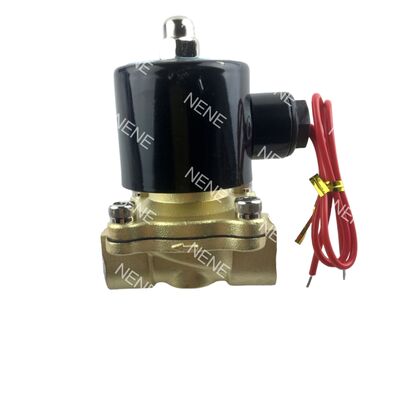

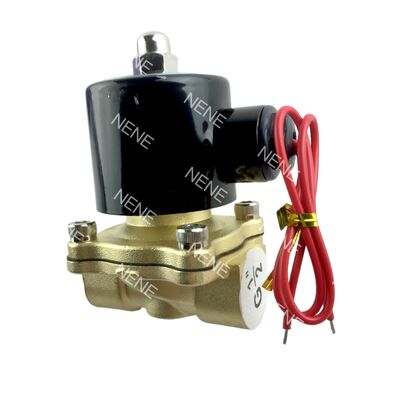

The UNID UW series solenoid valve is designed with a pilot diaphragm-driven mechanism and operates as a normally closed valve. This means it remains closed when de-energized and opens upon receiving electrical power. Such a design ensures reliable operation in various control systems.
One of the key advantages of this series is its ability to function directly under zero pressure differential, which broadens its range of applications. Depending on the valve size, the body is constructed from different materials: forged brass is used for sizes ranging from 3/8" to 1", while cast bronze is employed for larger sizes from 1¼" to 2". Both materials provide excellent resistance to corrosion, enhancing durability.
The standard sealing material for these valves is NBR, suitable for fluids up to 80°C. For applications requiring higher temperature tolerance, seals made of Viton or Silicon are available, capable of withstanding temperatures up to 130°C. To accommodate various international piping systems, the valves come with standard threaded connections such as BSPT, NPT, and BSP.
The coil voltages commonly offered include 110VAC, 220VAC, and 24VDC, while special voltage options can be provided upon request to meet specific customer needs. Due to its versatile features, the UW series solenoid valve finds wide usage in fields like water treatment, industrial automation, HVAC systems, and light oil transfer processes.
Features:
The pilot diaphragm structure is engineered to provide sensitive opening and closing actions, ensuring excellent anti-clogging performance. This design enhances the reliability and responsiveness of the valve in various operational conditions.
Featuring zero pressure differential operation, the valve does not require any minimum pressure to function. This characteristic allows it to operate efficiently even under low-pressure scenarios.
There are dual body material options available to suit different applications. For sizes ranging from 3/8" to 1", forged brass is used, while cast bronze is chosen for larger sizes from 1¼" to 2". This flexibility ensures durability and compatibility with diverse system requirements.
The valve offers multiple seal materials to accommodate varying temperature conditions. The standard option is NBR, rated up to 80°C, while Viton or Silicon seals are available for higher temperature fluids up to 130°C.
Compatibility with multiple media types, including water, air, and light oil, makes this valve versatile. It supports a wide operating pressure differential range, detailed further in the technical data.
Various port sizes from 3/8" to 2" are provided, with flow coefficients (Cv) ranging from 2.4 to 48, allowing the valve to meet different flow requirements effectively.
The maximum operating pressure differential is up to 7 kgf/cm² for air, and up to 5 kgf/cm² for water and light oil, ensuring robust performance across applications.
Threaded connections are available in BSPT, NPT, and BSP standards, offering flexible installation options to suit different piping systems.
The coil voltage tolerance is designed for stable operation, with an allowance of AC ±10% and DC ±1%, ensuring consistent performance under voltage fluctuations.
Finally, the compact and lightweight design of the valve makes it easy to integrate into existing systems, saving space without compromising functionality.
Technical Parameters:
| Body |
Forged Brass (3/8"~1") / Cast Bronze (1¼"~2") |
| Core |
Stainless Steel |
| Coil |
Special Copper Wire (H) |
| Diaphragm |
NBR, Viton, Silicon (as Selected) |
| Tube |
Stainless Steel |
| Spring |
Stainless Steel |
Applications:
Water Treatment and Supply Systems
These systems are designed to purify and distribute water efficiently. They play a critical role in ensuring clean and safe water is available for various applications, including industrial, agricultural, and domestic use.
Industrial Automation Equipment
Automation equipment in industrial settings enhances production efficiency and accuracy. This category includes machinery and control systems that automate manufacturing processes, reducing human intervention and increasing productivity.
HVAC Systems
Heating, ventilation, and air conditioning (HVAC) systems are essential for maintaining comfortable and healthy indoor environments. They regulate temperature, humidity, and air quality in residential, commercial, and industrial spaces.
Light Oil Transfer and Burner Systems
These systems manage the transfer and combustion of light oils in various industrial applications. They are designed to ensure safe handling and efficient burning of fuels for heating and power generation.
Air Compression and Pneumatic Control Systems
Air compression and pneumatic control systems utilize compressed air to power machinery and control mechanisms. These systems are widely used in automation, manufacturing, and other industrial processes requiring precise control.
Food Machinery and Cleaning Equipment
Equipment used in food processing and cleaning plays a vital role in maintaining hygiene and quality standards. These machines facilitate efficient production, handling, and sanitation in the food industry.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to offer reliable and efficient control of pneumatic systems. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance.
We recommend verifying the compatibility of the solenoid valve with your pneumatic system specifications before installation. Proper wiring, pressure ratings, and environmental conditions should be carefully considered.
If you encounter any operational issues, our support team can help diagnose common problems such as valve failure to actuate, air leakage, or electrical faults. Regular cleaning and periodic inspection of the valve components can prevent many issues and extend the product’s service life.
We also offer repair and replacement services for defective units covered under warranty. For custom applications, our engineering team can provide tailored solutions to meet specific pneumatic control requirements.
Detailed product manuals, datasheets, and installation videos are available to assist users in maximizing the benefits of the Pneumatic Solenoid Valve. We are committed to ensuring customer satisfaction through prompt and knowledgeable technical support services.
Packing and Shipping:
Product Packaging: Each Pneumatic Solenoid Valve is carefully packaged in a sturdy, impact-resistant box to ensure maximum protection during transit. The valve is wrapped in anti-static foam and sealed in a plastic bag to prevent moisture and dust contamination. The packaging includes clear labeling with product specifications, model number, and handling instructions to facilitate easy identification and safe handling.
Shipping: We offer reliable and prompt shipping services for the Pneumatic Solenoid Valve. Products are shipped via reputable carriers with tracking options available for all orders. Depending on the destination, shipping can be expedited to meet urgent requirements. All shipments are insured to safeguard against loss or damage during transportation, ensuring your product arrives safely and on time.
