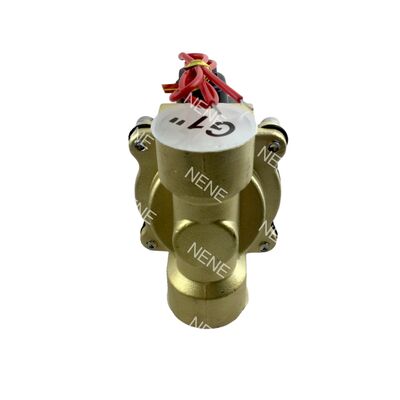

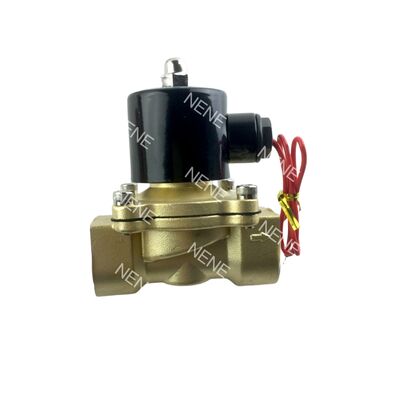

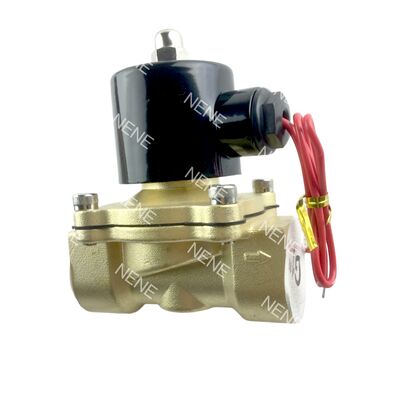

SUW-25 Stainless Steel Tube Pneumatic Solenoid Valve UNID 1" Fluid Temp -5~80

Product Description:

The UNID SUW series solenoid valve is designed with a pilot diaphragm-driven mechanism and is normally closed. This means that the valve remains closed when de-energized and opens upon receiving electricity. Such a design ensures reliable control of fluid flow in various applications.

The valve body is constructed from investment cast SUS 316 stainless steel (CF8M), which provides exceptional corrosion resistance. This makes the valve particularly suitable for use with aggressive media and in harsh environmental conditions, ensuring durability and long service life.

One of the key features of the SUW series is its ability to operate directly under zero pressure differential. This characteristic broadens its applicability across different systems without the need for additional pressure conditions.

Regarding sealing materials, the valves come standard with NBR seals rated at 80°C. For applications requiring higher temperature resistance, optional seals made from Viton or Silicon, capable of withstanding up to 130°C, are available.

The series supports standard threaded connections such as BSPT, NPT, and BSP, complying with international piping standards. Additionally, the coil is available in standard voltages including 110VAC, 220VAC, and 24VDC, with options for special voltages upon request.

Due to these versatile features, the SUW series solenoid valve finds extensive use in various industries like water treatment, chemical processing, pharmaceuticals, food processing, and vacuum systems.

Features:

The pilot diaphragm structure is engineered to provide highly sensitive opening and closing actions, ensuring reliable performance even in challenging conditions. Its design also offers excellent anti-clogging capabilities, making it suitable for various applications.

This valve operates with zero pressure differential, meaning it does not require any minimum pressure to function effectively. This feature enhances its versatility across different systems.

Constructed from SUS 316 stainless steel (CF8M) through investment casting, the valve body offers superior corrosion resistance. This makes it ideal for handling corrosive fluids, ensuring long-lasting durability.

The valve supports multiple seal material options to accommodate different temperature requirements. Standard seals are made of NBR, rated up to 80°C, while optional Viton or Silicon seals can be used for higher temperature fluids, up to 130°C.

It is compatible with a wide range of media including water, air, light oil, and vacuum, and operates efficiently over a broad range of pressure differentials. Please refer to the technical data for detailed performance specifications.

Available in multiple port sizes ranging from 1/2" to 2", with flow coefficients (Cv) between 4.5 and 48, the valve can meet various flow requirements in different systems.

The maximum operating pressure differential is up to 7 kgf/cm² for air, and up to 5 kgf/cm² for water and light oil. The valve is also compatible with vacuum applications, enhancing its operational flexibility.

Installation is facilitated through threaded connections including BSPT, NPT, and BSP, allowing for flexible and convenient integration into existing piping systems.

The coil voltage tolerance is designed for stable operation, allowing ±10% variation for AC voltage and ±1% for DC voltage, ensuring reliable performance under fluctuating power conditions.

Featuring a compact and lightweight design, the valve is easy to install and integrate into various setups without requiring extensive space.

Technical Parameters:

Applications:

Support and Services:

Our Pneumatic Solenoid Valve product is supported by a dedicated technical team to ensure seamless integration and optimal performance. We provide comprehensive installation guides, troubleshooting manuals, and detailed product specifications to assist users throughout the lifecycle of the valve.

Technical support includes assistance with valve selection, configuration, and maintenance to help you achieve efficient pneumatic control solutions. Our experts are available to answer technical queries and provide recommendations tailored to your specific application requirements.

We also offer repair and replacement services to minimize downtime and maintain the reliability of your pneumatic systems. Regular updates and service bulletins are provided to keep you informed about product enhancements and best practices.

For specialized needs, custom engineering support is available to adapt the Pneumatic Solenoid Valve to unique operational environments or integration challenges. Our commitment is to deliver high-quality support and services that ensure customer satisfaction and long-term performance.

Packing and Shipping:

Product Packaging:

The Pneumatic Solenoid Valve is securely packaged to ensure safe delivery. Each valve is individually wrapped in anti-static foam and placed inside a sturdy cardboard box. The box is then sealed with tamper-evident tape and labeled with product details, handling instructions, and barcode for easy identification. For bulk orders, multiple boxes are packed into a reinforced shipping carton with cushioning materials to prevent movement and damage during transit.

Shipping:

We offer reliable shipping options to deliver the Pneumatic Solenoid Valve to your location promptly and safely. All shipments are handled by trusted courier services with tracking capabilities. Standard shipping includes protective packaging and insurance against loss or damage. Expedited shipping is available upon request. Before dispatch, each order undergoes quality inspection to ensure the product meets specifications and is free from defects.
