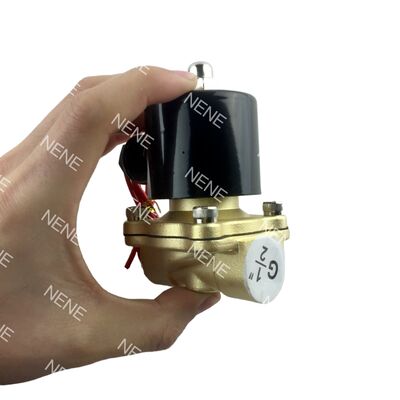

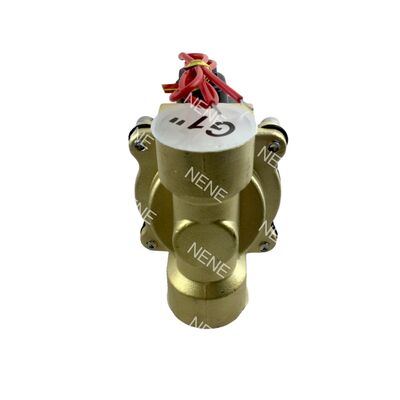

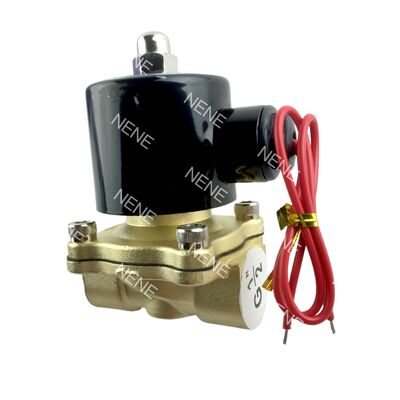

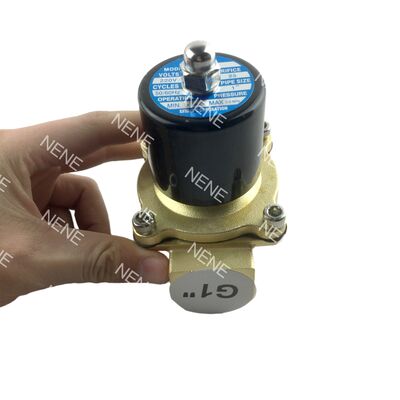

Product Description:
The UNID SUW series solenoid valve is designed with a pilot diaphragm-driven mechanism and operates as a normally closed valve. This means it remains closed when de-energized and opens only when power is supplied. Such a design ensures reliable operation in various applications.
The valve body is constructed from investment cast SUS 316 stainless steel (CF8M), known for its excellent corrosion resistance. This makes the valve suitable for use with aggressive media as well as in harsh environmental conditions, enhancing its durability and lifespan.
One notable feature of the SUW series is its ability to function directly under zero pressure differential, allowing for greater versatility across different systems. The standard seals used are made of NBR, which can withstand temperatures up to 80°C. For applications requiring higher temperature resistance, optional seals made from Viton or Silicon, rated up to 130°C, are available.
The valve comes with standard threaded connection options such as BSPT, NPT, and BSP, ensuring compatibility with international piping standards. Regarding power supply, the coils are commonly available in 110VAC, 220VAC, and 24VDC. Additionally, special voltage options can be provided upon request to meet specific needs.
Due to its robust construction and versatile features, the SUW series solenoid valve is widely utilized in a variety of industries, including water treatment, chemical processing, pharmaceutical manufacturing, food processing, and vacuum systems.
Features:
Pilot Diaphragm Structure and Performance
The pilot diaphragm is engineered to provide highly sensitive opening and closing actions while delivering excellent anti-clogging capabilities. This ensures reliable operation even in demanding environments where fluid contamination might be a concern.
Zero Pressure Differential Operation
This device operates effectively without the need for any minimum pressure differential, allowing seamless functionality under zero differential pressure conditions. This makes it versatile for a variety of applications.
Durable Stainless Steel Construction
Constructed from SUS 316 stainless steel (also known as CF8M) using investment casting, the body offers superior resistance to corrosion. This makes the device particularly suitable for handling corrosive fluids and harsh industrial environments.
Seal Material Options
The pilot diaphragm comes with multiple seal materials to accommodate different temperature requirements. The standard seal is made of NBR which supports temperatures up to 80°C. For higher temperature fluids, optional Viton or Silicon seals are available, both rated for up to 130°C.
Compatibility and Operating Range
Designed for multi-media compatibility, the device works effectively with water, air, light oil, and vacuum conditions. It supports a wide operating pressure differential range, details of which can be referenced in the technical data sheets.
Variety of Sizes and Flow Capacities
Available in multiple port sizes ranging from 1/2" to 2", the diaphragm valve offers flow coefficients (Cv) between 4.5 and 48. This range ensures it meets various flow requirements across different applications.
Maximum Operating Pressure Differentials
The maximum operating pressure differential is rated up to 7 kgf/cm² for air, and up to 5 kgf/cm² for water and light oil. The device is also compatible with vacuum environments, broadening its usability.
Flexible Threaded Connections
Installation is facilitated by the availability of multiple threaded connection types including BSPT, NPT, and BSP, providing flexibility to suit different piping standards and system configurations.
Coil Voltage Stability
The coil supports a voltage tolerance of ±10% for AC and ±1% for DC, ensuring stable and reliable performance across voltage fluctuations.
Compact and Lightweight Design
Featuring a compact and lightweight design, the pilot diaphragm valve is easy to integrate into existing systems without adding significant bulk or complexity.
Technical Parameters:
| Body |
Investment Cast SUS 316 Stainless Steel |
| Spring |
Stainless Steel |
| Plug |
NBR, Viton, Silicon |
| Tube |
Stainless Steel |
| Coil |
Special Copper Wire (H) |
| Core |
Stainless Steel |
This pilot diaphragm solenoid valve features a robust construction with an investment cast SUS 316 stainless steel body, ensuring durability and corrosion resistance. The pilot diaphragm solenoid valve uses high-quality stainless steel springs and tubes for reliable operation. The plug options include NBR, Viton, and Silicon to suit various applications. The coil is made from special copper wire (H), and the core is stainless steel, making this pilot diaphragm solenoid valve a dependable choice for precision control.
Applications:
Water Treatment and Supply Systems
These systems are designed to ensure the purification and distribution of water. They incorporate advanced technologies to treat water, making it safe for consumption and suitable for various industrial uses.
Chemical Processing and Corrosive Fluid Control
Specialized equipment and methods are used to handle and process chemicals, especially those that are corrosive. Effective control measures help maintain system integrity and safety during chemical operations.
Pharmaceutical and Biotechnology Equipment
High-precision machinery supports the manufacture of pharmaceuticals and biotechnological products. These systems comply with strict regulatory standards, ensuring product quality and consistency.
Food Processing and Beverage Machinery
Equipment in this category is tailored for the preparation, processing, and packaging of food and beverages. Hygiene and efficiency are prioritized to meet industry demands.
Vacuum Systems
Vacuum technologies are employed in various applications, from material handling to scientific research. These systems create controlled environments by removing air or gases.
Light Oil Transfer and Burner Systems
Systems designed for the safe transfer and combustion of light oils are critical in energy and heating applications. They ensure efficient fuel handling and optimized burner performance.
Air Compression and Pneumatic Control Systems
These systems utilize compressed air to power pneumatic tools and control mechanisms. They are essential in manufacturing automation and various industrial processes.
Support and Services:
Our Pneumatic Solenoid Valve product is supported by a dedicated technical support team committed to ensuring optimal performance and customer satisfaction. We provide comprehensive services including installation guidance, troubleshooting assistance, and maintenance advice to help you maximize the efficiency and lifespan of your valve system.
Technical documentation such as user manuals, wiring diagrams, and specification sheets are available to assist with proper setup and integration into your pneumatic system. For complex applications, our experts can offer customized solutions and modifications tailored to your specific requirements.
We also offer repair and replacement services to minimize downtime and maintain continuous operation. Routine maintenance recommendations and training sessions are provided to empower your team with the knowledge needed for effective valve management.
Whether you need help selecting the right valve model or require ongoing technical assistance, our support services are designed to deliver reliable and timely solutions to meet your industrial automation needs.
Packing and Shipping:

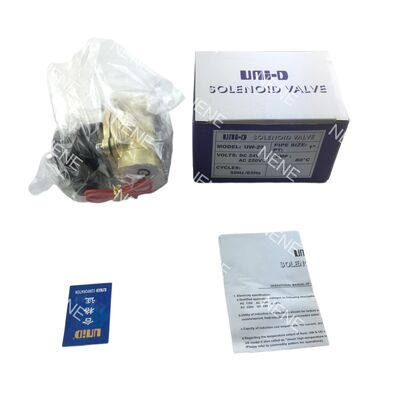

Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and protection from damage during transit. Each valve is individually wrapped in anti-static bubble wrap and placed inside a sturdy, custom-fitted cardboard box. The box is then sealed securely with reinforced tape and labeled with product details, handling instructions, and a barcode for easy tracking.
Shipping:
We offer reliable shipping options worldwide to ensure timely and safe delivery of the Pneumatic Solenoid Valve. Orders are processed within 1-2 business days and shipped via trusted carriers. Tracking information will be provided upon dispatch. For bulky or bulk orders, freight shipping options are available. Proper documentation and packaging comply with international shipping regulations to avoid delays.
