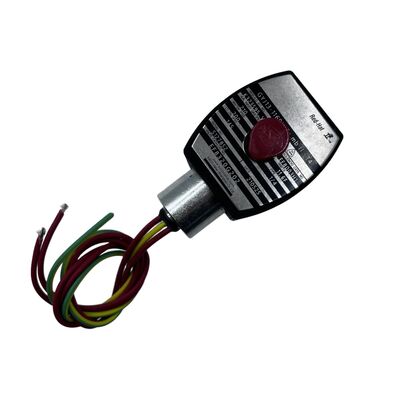

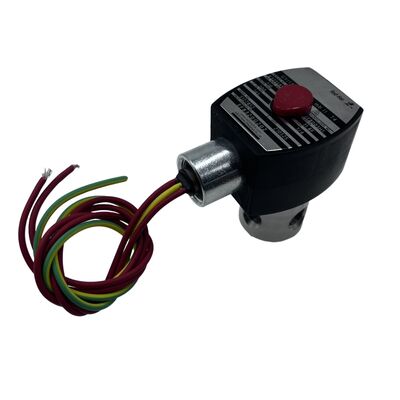

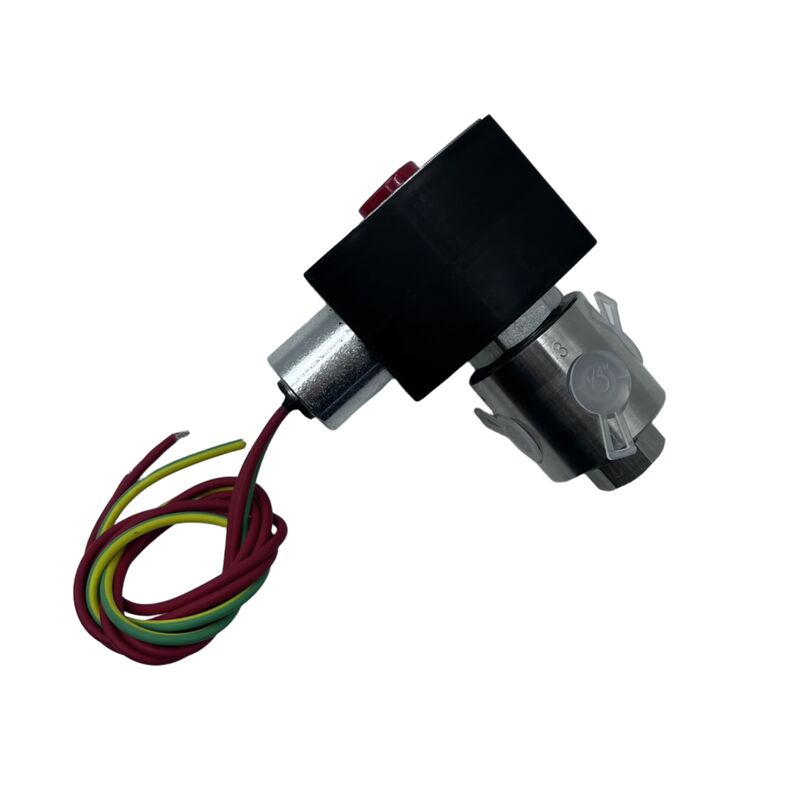

EF8320G202 220/50,Asco, Stainless Steel Explosion-proof Solenoid Valve, 1/4'NPT Thread

Product Description:

This range of 1/4-inch single-coil solenoid valves employs a pilot-operated mechanism. A low-power solenoid coil manages the pilot valve, which then uses the medium’s pressure differential to actuate the main spool. This setup allows a small coil to control relatively large flow capacities, making it ideal for applications requiring frequent switching.

Featuring a single-coil configuration, the valve switches state by energizing or de-energizing the solenoid coil. When de-energized, the valve automatically resets through spring force, enabling straightforward and dependable control. This makes it well suited for use with single-acting actuators.

The valve body includes a standard 1/4-inch NPT or BSP threaded port. Its compact dimensions permit installation in areas with limited space. This small form factor is perfect for integrating into control panels or pneumatic circuits within a variety of automation equipment.

The valve is available in brass or 316L stainless steel. Brass bodies provide excellent pressure resistance up to 25 bar, suitable for general industrial settings. Meanwhile, stainless steel variants offer enhanced corrosion resistance, making them ideal for challenging environments such as chemical processing, food production, and marine applications.

Incorporating a unique sealing system that combines a T-shaped seal with a flexible O-ring, these valves achieve bubble-tight sealing and strong resistance to dirt. This sealing design endures millions of operational cycles, ensuring a long service life and high reliability.

The solenoid coils consume low power, with some energy-efficient models using only 1.5 to 2.5 watts, leading to considerable energy savings. A variety of voltage options such as DC 24V and AC 220V are offered, ensuring compatibility with PLCs and other automation control systems. Additionally, protection ratings can reach IP65 or IP67, providing dust-tightness and safeguard against water jets, suitable for harsh industrial environments.

These valves deliver rapid response times, with opening speeds of 15 milliseconds or less and closing speeds up to 20 milliseconds. Their durable design supports over 5 million cycles of operation, and selected high-end models can exceed 100 million cycles, accommodating the needs of frequent start-stop applications.

Equipped with a standard manual reset device or operator, the valve allows easy manual control during equipment setup, maintenance, and emergencies. This manual override capability enables operation without electrical input, enhancing overall system safety and maintainability.

These valves can be installed directly in-line within piping systems or mounted straight onto pneumatic actuators that feature standard NAMUR interfaces. There are no restrictions on installation orientation, allowing flexible placement to best suit available space on site.

Applications:

Pneumatic components are extensively utilized in automated production lines, including packaging machinery, assembly equipment, and material handling systems. They are designed to control single-acting cylinders, pneumatic grippers, and various actuators, performing essential functions such as clamping, positioning, and pushing.

Serving as fundamental control elements within pneumatic setups, these devices manage switching and directional operations in air compressor stations, pneumatic tools, compressors, and related equipment. The commonly used 1/4-inch port size is ideal for small to medium pneumatic circuits, supporting flow rates of approximately 700 to 860 liters per minute at 6 bar pressure, which satisfies the operational requirements of most pneumatic actuators.

In dust collector pulse jet systems, these valves are responsible for the rapid release of compressed air to facilitate the online cleaning of filters. Furthermore, they play a crucial role in valve automation within environmental protection systems such as wastewater treatment plants and exhaust gas purification units.

These pneumatic components are well-suited for energy-related applications including the operation of boiler feed valves, gas pipeline safety shut-off mechanisms, and burner controls. Certain models possess ATEX and IEC Ex explosion-proof certifications, ensuring safe functionality within hazardous environments like petrochemical and propane management.

Models featuring stainless steel construction comply with sanitary standards and are tailored for applications demanding high cleanliness such as food processing, beverage bottling, and pharmaceutical manufacturing. Available sealing materials like EPDM and Viton enable compatibility with food-grade substances and support rigorous cleaning and sanitization protocols.

Pneumatic devices are implemented in automotive production for tasks including welding fixtures, painting systems, and assembly operations. Low-power models are especially favorable for integration with PLC systems, addressing the automotive sector's strict requirements for reliability and efficient cycle times.

Products with certifications such as ATEX, IEC Ex, and UL are designed for use in potentially explosive environments, making them suitable for flammable settings encountered in petrochemical and gas industries.

Certain models maintain normal operation in extremely low temperatures down to –60°C, making them ideal for cold storage, outdoor facilities, and other frigid conditions.

Specialized high-temperature variants are capable of handling steam and hot water systems, with maximum media temperatures reaching up to 99°C (210°F).

Utilizing stainless steel bodies combined with corrosion-resistant seals, these models can effectively manage mildly acidic, alkaline, and other corrosive fluids, extending their applicability to a variety of chemical environments.

Support and Services:

ASCO solenoid valves are designed to provide reliable and efficient control of fluid flow in a variety of industrial applications. Our technical support team is dedicated to assisting you with product selection, installation, troubleshooting, and maintenance to ensure optimal performance and longevity of your ASCO solenoid valves.

For product technical support, we offer comprehensive resources including detailed product catalogs, installation guides, operation manuals, and troubleshooting tips. Our experts can help you identify the correct valve type, size, and specifications to meet your application requirements.

We provide service and repair options to minimize downtime and extend the life of your solenoid valves. Regular maintenance recommendations include periodic cleaning, inspection of electrical connections, and verification of coil integrity to prevent failures.

ASCO solenoid valves are manufactured to meet rigorous quality standards, ensuring durability and consistent operation in demanding environments. Our support services include assistance with valve replacement parts and upgrades to newer models for enhanced performance.

Whether you need help with initial installation, system integration, or ongoing maintenance, ASCO’s technical support team is committed to delivering expert guidance and solutions tailored to your application needs.

Packing and Shipping:

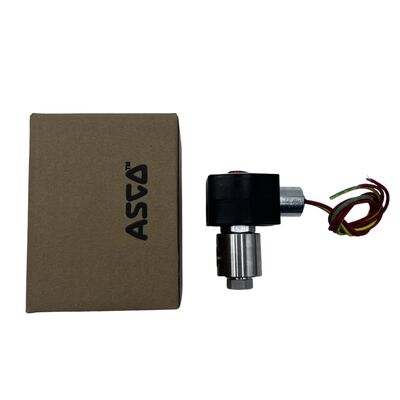

The ASCO Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during transit. Each valve is individually placed in a custom-fitted foam insert within a sturdy corrugated cardboard box, preventing movement and potential damage.

All packaging materials are selected to be durable and resistant to moisture and impact. The exterior box is clearly labeled with the product model number, specifications, and handling instructions to facilitate easy identification and proper care.

For shipping, we use reliable carriers with tracking options to ensure timely and secure delivery. Depending on the destination, the product may be shipped via air, sea, or ground transportation, with appropriate documentation and compliance with international shipping regulations.

Upon receipt, customers are advised to inspect the packaging for any signs of damage before opening and to verify the product against the packing list. In case of any issues during shipping, please contact our customer service immediately for assistance.
