ASCO Explosion-proof Junction Box EF551G402MO Solenoid Valve Double Coil 1/4

Product Description:

This series of 1/4-inch single-coil solenoid valves employs a pilot-operated working principle. A low-power solenoid coil activates the pilot valve, which then uses the pressure differential of the medium to move the main spool. This arrangement enables a small coil to govern relatively large flow rates, making it ideal for applications that require frequent switching.

Featuring a single-coil configuration, the valve operates by energizing and de-energizing one solenoid coil. When de-energized, the valve returns to its default position through the force of a spring. This straightforward and dependable mechanism is particularly suited for use with single-acting actuators.

The valve is designed with a standard 1/4-inch NPT or BSP threaded port. Its compact form factor allows installation in environments with limited space. Thanks to its small size, it is highly compatible for integration into control panels or pneumatic systems found in various automation equipment.

The valve body can be supplied in either brass or 316L stainless steel. Brass variants offer excellent resistance to pressure up to 25 bar and are suitable for general industrial applications. Stainless steel versions provide enhanced corrosion resistance, making them ideal for harsh environments such as chemical processing, food production, and marine applications.

By incorporating an advanced sealing design that combines a T-shaped seal with a flexible O-ring, these valves achieve bubble-tight sealing and impressive resistance to contaminants. This sealing solution is durable enough to withstand millions of operating cycles, ensuring long-lasting performance and reliability.

The solenoid coil is engineered for low power consumption, with certain models requiring as little as 1.5 to 2.5 watts, resulting in significant energy savings. Multiple voltage options, such as DC 24V and AC 220V, are available to accommodate PLCs and other automation controllers. Additionally, protection classes up to IP65 and IP67 provide dust-tightness and safeguard against water jets, making these valves suitable for challenging industrial environments.

These valves boast rapid response times, with opening speeds of 15 milliseconds or less and closing speeds within 20 milliseconds. Their operational lifespan exceeds 5 million cycles, and some premium models can surpass 100 million cycles, meeting the rigorous demands of high-frequency start-stop applications.

Equipped with a manual reset device or manual operator as a standard feature, the valves facilitate easy commissioning, maintenance, and emergency manual control. This allows the valve to be operated without electrical power, enhancing the overall safety and serviceability of the system.

The valves can be installed via direct inline piping or mounted directly onto pneumatic actuators using standardized NAMUR interfaces. They impose no restrictions on installation orientation, offering versatile placement options based on available site space.

Applications:

These components are extensively utilized in automated production lines, including packaging machinery, assembly equipment, and material handling systems. They serve to control various actuators such as single-acting cylinders and pneumatic grippers, enabling key functions like clamping, positioning, and pushing.

Acting as essential control elements within pneumatic systems, these devices manage switching and directional control in a variety of equipment including air compressor stations, pneumatic tools, and compressors. The 1/4-inch port size is particularly suited for small to medium-sized pneumatic circuits, offering flow rates ranging between 700 and 860 L/min at 6 bar pressure, adequately supporting the majority of pneumatic actuators.

In pulse jet dust collection systems, these valves regulate the rapid release of compressed air necessary for online filter cleaning. Additionally, they play a crucial role in valve automation within environmental protection setups such as wastewater treatment and exhaust gas management facilities.

These valves are well-suited for use in energy sector equipment, including boiler feed valves, gas pipeline safety shut-off systems, and burner control mechanisms. Certain models come with ATEX and IEC Ex explosion-proof certifications, allowing their safe operation in hazardous settings such as petrochemical plants and propane control applications.

Models constructed with stainless steel bodies fulfill strict sanitary standards, making them ideal for sectors demanding high cleanliness such as food processing, beverage filling, and pharmaceutical equipment. Sealing options are available in EPDM or Viton, designed to handle food-grade materials and accommodate rigorous cleaning and sanitization protocols.

These valves find application in automotive production lines, controlling pneumatic tooling and auxiliary devices in welding fixtures, painting machines, and assembly stations. Low-power variants are especially compatible with PLC system integration, meeting the automotive industry’s requirements for reliability and efficient cycle times.

Valves equipped with ATEX, IEC Ex, UL, and other internationally recognized explosion-proof certifications are designed for safe use in flammable environments, including petrochemical and gas industry applications.

Certain models maintain normal operation in extremely low temperatures down to –60°C, making them suitable for cold storage facilities, outdoor usage, and other frigid environment applications.

High-temperature variants are compatible with steam and hot water systems, supporting media temperatures up to 99°C (210°F).

Valves constructed with stainless steel bodies combined with corrosion-resistant sealing materials are capable of managing mildly acidic, alkaline, and other corrosive fluid environments efficiently.

Support and Services:

ASCO Solenoid Valves are designed to provide reliable and efficient fluid control for a wide range of industrial applications. Our technical support team is dedicated to helping you achieve optimal performance and longevity from your ASCO products.

If you require assistance with installation, operation, or maintenance of ASCO Solenoid Valves, our experts can provide detailed guidance tailored to your specific application needs. We offer troubleshooting support to quickly resolve any issues and minimize downtime.

ASCO also provides comprehensive documentation, including product catalogs, installation manuals, and datasheets, to ensure you have all the necessary information at your fingertips. For complex system integration or custom solutions, our engineering team is available to collaborate on design and application challenges.

Regular maintenance and correct usage are critical to the performance of ASCO Solenoid Valves. We recommend following the prescribed maintenance schedules and procedures outlined in the product manuals to ensure consistent operation and to extend the service life of the valves.

Additionally, ASCO offers repair and refurbishment services to restore valves to original operating conditions, helping to reduce costs and environmental impact. Replacement parts and accessories are also available to support ongoing system maintenance.

Our commitment to quality and customer satisfaction means that ASCO Solenoid Valve users can rely on expert support and comprehensive services throughout the lifecycle of their products.

Packing and Shipping:

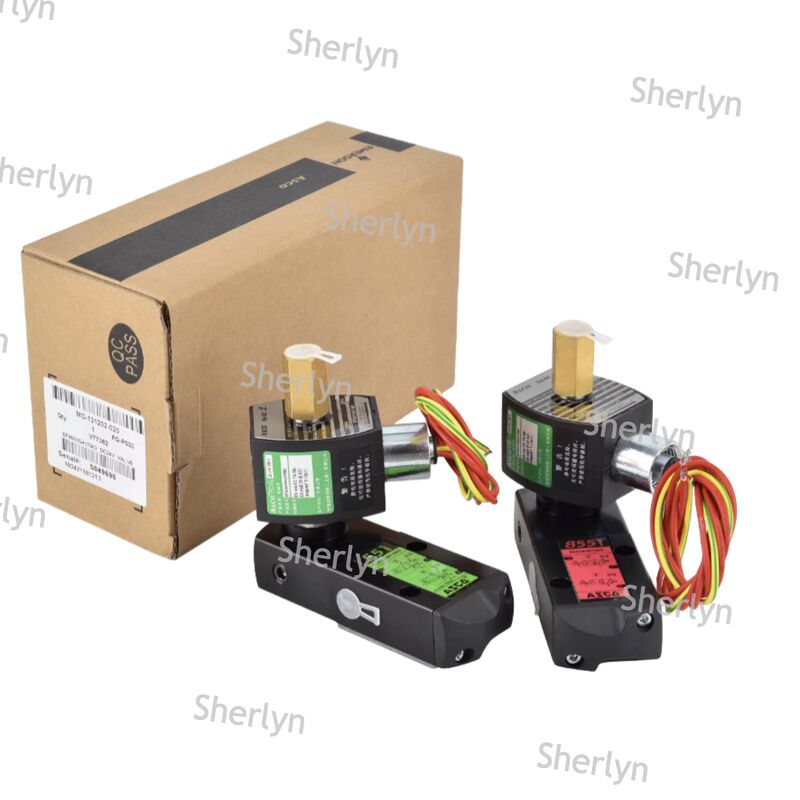

Each ASCO Solenoid Valve is carefully packaged to ensure maximum protection during transit. The valve is first sealed in a protective plastic bag to prevent moisture and dust ingress. It is then placed inside a custom-fitted foam insert that cushions the product against shocks and vibrations.
