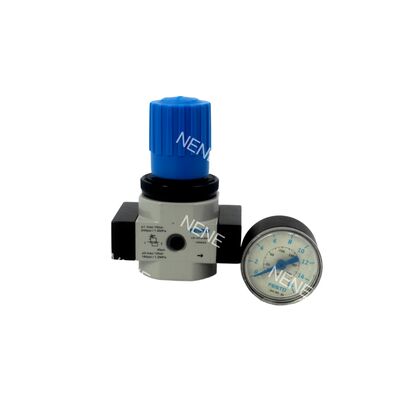

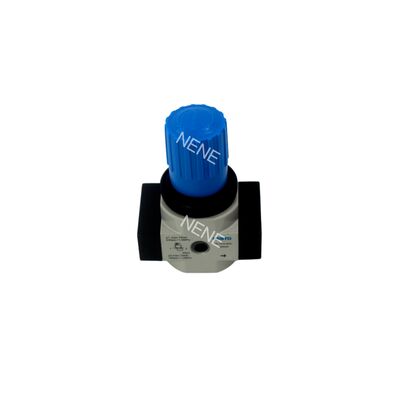

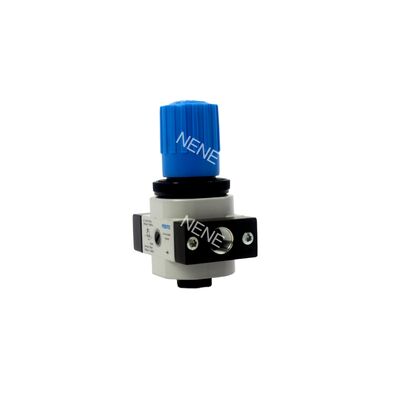

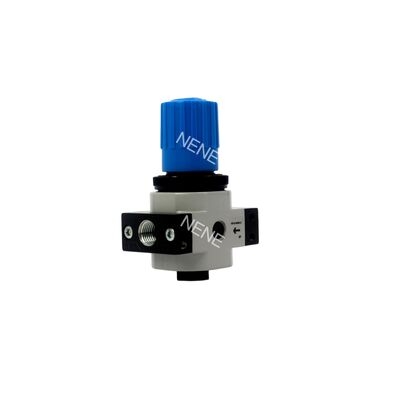

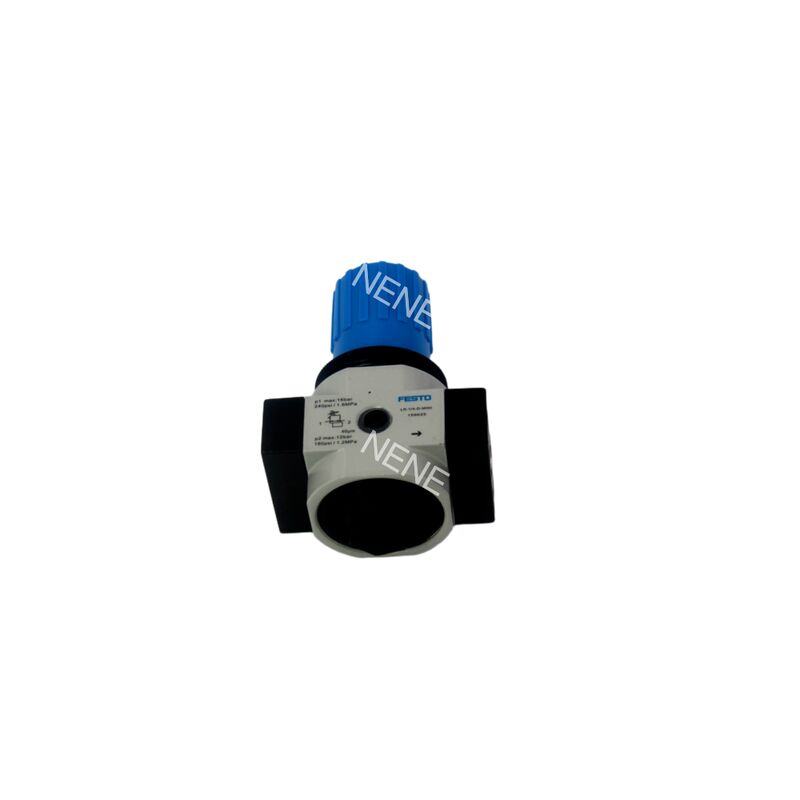

LR-3/8-D-MINI Festo 162580 With Gauge 0.5-12 Bar Zinc Alloy Pressure Regulator G3/8 1700L/min Lockable Rotary Knob Directly Actuated Diaphragm

Product Description:

This product is a highly reliable air source pressure reducer from the FESTO D-MINI Series. It includes several models such as LR-1/8-D-MINI-MPA, LR-1/4-D-MINI, LR-1/4-D-MINI-MPA, LR-3/8-D-MINI, and LR-3/8-D-MINI-MPA. These variants cater to different application needs and ensure versatile functionality.

The pressure reducer is available with port sizes G1/8, G1/4, and G3/8. It offers both standard models and MPA versions that feature enhanced pressure resistance. This flexibility allows users to select the right product based on their specific pressure requirements and operating environments.

Designed with a compact modular structure, this device integrates seamlessly with standard industrial compressed air systems. It is capable of accurately adjusting the output pressure, stabilizing the air source pressure, and preventing pressure fluctuations that could disrupt the normal operation of connected equipment.

Widely utilized across numerous industrial pneumatic systems, this air source pressure reducer stands out due to its easy installation, stable performance, and strong adaptability to various environmental conditions. These characteristics make it an excellent choice for maintaining efficient and reliable pneumatic operations.

Features:

The compact modular design of this product allows it to occupy minimal installation space, making it highly efficient for use in environments with limited room. It is designed for easy assembly, disassembly, and maintenance, which enhances convenience during installation and servicing.

This device features high-precision pressure regulation with minimal hysteresis, ensuring a stable output pressure. Such accuracy guarantees the reliable and consistent operation of various pneumatic components.

The MPA enhanced models boast strong pressure resistance, making them ideal for harsh working conditions and demanding applications. Their robust construction ensures durability even in challenging environments.

Encased in a durable metal shell, the product offers excellent corrosion and impact resistance. This protective housing contributes to a long service life, reducing the need for frequent replacements.

Pressure adjustment is straightforward thanks to a simple operation mechanism and a clear pressure display. This user-friendly design facilitates easy on-site operation and fine-tuning during debugging processes.

Furthermore, the product complies with international industrial standards, providing broad compatibility and interchangeability with other FESTO D-MINI series components. This adherence to standards ensures versatility across various industrial settings.

Technical Parameters:

Applications:

Modern automated production lines often incorporate CNC machine tools along with pneumatic control systems for industrial robots. These systems rely heavily on pneumatic actuators, such as cylinders and air grippers, which require stable air source pressure to function effectively.

In industries like packaging, textiles, and printing, pneumatic systems play a crucial role in regulating pressure to ensure smooth and precise operations of machinery. Maintaining consistent pressure is essential for optimizing performance and reducing equipment wear.

Equipment used in electronic manufacturing, automobile parts production lines, and precision instruments also depend on air source pre-treatment. This pre-treatment prepares the compressed air to meet the specific quality and pressure requirements of these sensitive production processes.

Additionally, non-standard automated equipment and industrial pipelines utilize compressed air pressure control to maintain operational stability. Proper pressure management across these systems ensures efficiency and reliability in various industrial environments.

Ultimately, many industrial fields demand a stable supply of compressed air pressure to support their pneumatic systems, highlighting the importance of effective air source management and pressure regulation technology.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure clean, regulated, and lubricated air supply for pneumatic systems, enhancing performance and extending the life of your equipment.

If you experience any issues with the FRL unit, please verify that the installation complies with the recommended guidelines, including correct airflow direction and proper mounting position.

Regular maintenance is essential for optimal operation. Clean or replace filter elements periodically to prevent clogging, check the regulator for accurate pressure settings, and refill the lubricator with the appropriate pneumatic oil as needed.

For troubleshooting, ensure that the inlet air pressure is within the specified range and that there are no air leaks or blockages in the system. If the unit fails to regulate pressure correctly, inspect the diaphragm and seals for wear or damage.

Replacement parts and accessories, such as filter elements, lubricator oil, and pressure gauges, are available to maintain and customize your FRL unit according to your application requirements.

Our technical support team is ready to assist with product selection, installation advice, maintenance tips, and troubleshooting to ensure your pneumatic system operates efficiently and reliably.
