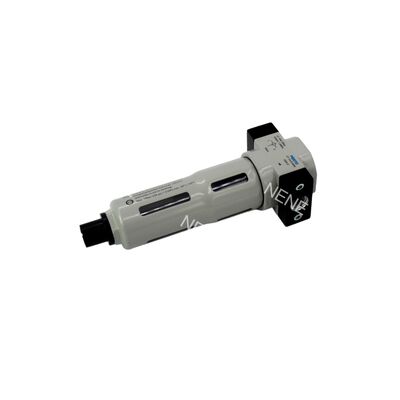

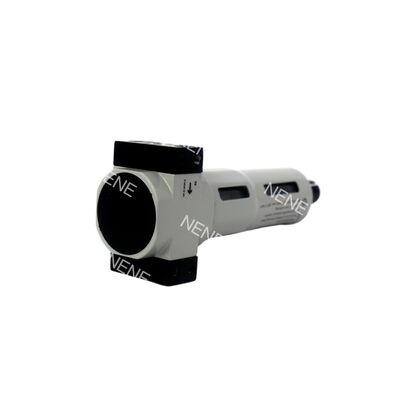

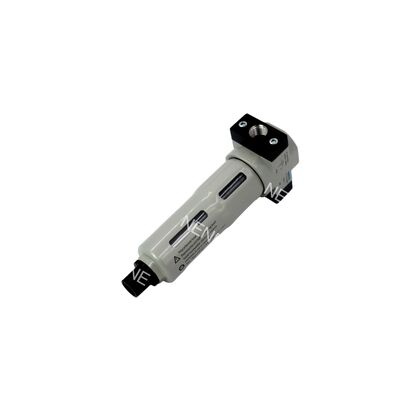

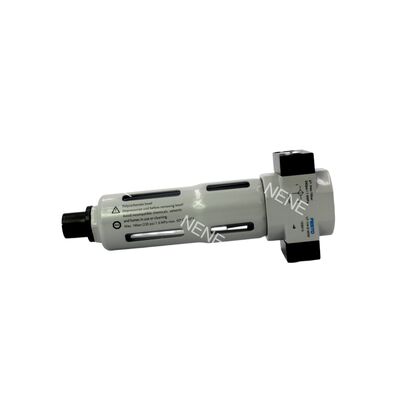

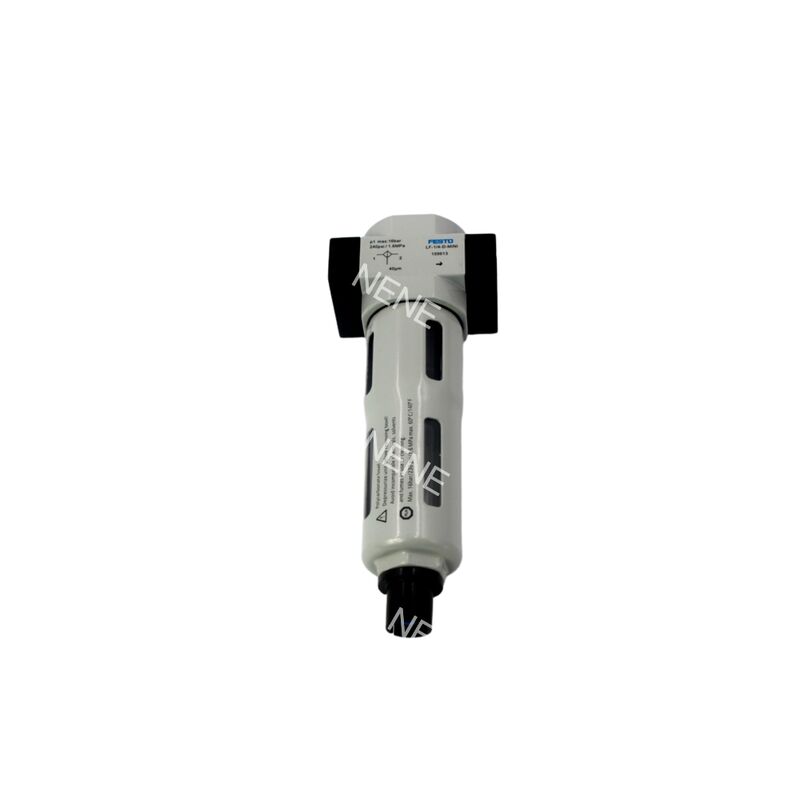

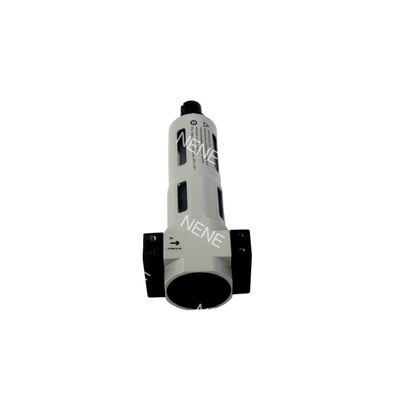

40μm G3/8 Fully Automatic Drain Festo LFR-3/8-D-MINI-A 162684 0.5-12bar With Pressure Gauge Zinc Alloy Filter Regulator

Product Description:

The product belongs to the FESTO D-MINI Series and is an integrated filter-regulator. This series includes 10 different models such as the LFR-1/8-D-MINI and LFR-1/8-D-MINI-A. These models come with port sizes of G1/8, G1/4, and G3/8, catering to various application needs.

There are several variants available within this product line, including standard models, Type A automatic drainage models, MPA enhanced pressure-resistant models, and combined models featuring both Type A automatic drainage and MPA reinforcement. This diversity ensures optimal performance across different industrial scenarios.

Designed with a compact modular approach, this integrated filter and regulator unit efficiently combines air filtration and pressure regulation into a single component. It is capable of filtering impurities from compressed air with a filtration precision of 40 micrometers, while maintaining stable output pressure. This helps prevent damage to pneumatic components caused by contamination and pressure fluctuations.

Widely compatible with a variety of industrial pneumatic systems, this product is noted for its easy installation, reliable operation, and straightforward maintenance, making it a dependable choice for maintaining system performance and longevity.

Features:

This device combines the dual functionalities of filtration and pressure reduction into one compact unit. Its streamlined design not only saves installation space but also simplifies the overall layout of the pneumatic system, making it an efficient solution for modern industrial applications.

With a filtration accuracy reaching up to 40μm, it effectively removes solid impurities and oil mist from compressed air. This purification process ensures the protection of downstream pneumatic components, enhancing their longevity and reliability.

Type A models come equipped with an automatic drainage feature, eliminating the need for manual intervention. This reduces maintenance efforts and boosts the operational efficiency of the equipment, allowing for smoother and uninterrupted system performance.

The MPA enhanced pressure-resistant variant is designed to withstand harsh working environments. Its superior pressure resistance makes it ideal for demanding industrial conditions, ensuring consistent performance under high-pressure scenarios.

Its pressure regulation capability is precise, featuring minimal hysteresis and providing stable output pressure. This stability is crucial for maintaining the consistent operation and safety of the pneumatic system.

Constructed with a metal shell, the device offers excellent corrosion and impact resistance. This durable build guarantees a long service life, complies with international industrial standards, and supports versatile applications across various industries.

Technical Parameters:

Applications:

Pneumatic control systems play a crucial role in automated production lines, CNC machine tools, and industrial robots. These systems ensure precise and reliable operation of various automated processes by utilizing compressed air as a power source.

One important aspect of pneumatic systems is the air source pre-treatment, which includes filtration and pressure reduction. This process is essential to prepare clean and stable air for pneumatic actuators such as cylinders and air grippers, ensuring their optimal performance and longevity.

In addition, pneumatic systems are widely used in packaging machinery, textile machinery, printing equipment, and plastic machinery. Each of these applications demands tailored air control solutions to meet specific operational requirements and enhance overall efficiency.

Air source purification and pressure regulation are also critical in industries like electronic manufacturing, automotive parts production, and the assembly of precision instruments. Maintaining air quality and stable pressure directly impacts product quality and operational reliability in these fields.

Furthermore, compressed air pre-treatment is necessary for non-standard automated equipment and various industrial pipelines to ensure consistent performance. Many industrial sectors depend on the purity and stability of their air sources to maintain smooth and efficient operations.

Overall, numerous industrial applications require high air source purity and reliable pressure control, highlighting the importance of well-designed pneumatic pre-treatment and control systems across diverse manufacturing environments.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. To maintain the efficiency and reliability of your FRL unit, regular maintenance and appropriate handling are essential.

For technical support, please ensure you have the model number and serial number of your FRL unit ready. Our support team can assist you with troubleshooting, replacement parts, and maintenance procedures to keep your system running smoothly.

Common maintenance tasks include checking and replacing filter elements, draining accumulated water and contaminants from the filter bowl, verifying and adjusting the pressure regulator settings, and refilling the lubricator with the recommended pneumatic oil. Always follow the manufacturer’s guidelines and safety instructions during maintenance.

If you experience issues such as pressure drops, air leaks, or insufficient lubrication, consult the troubleshooting section of the product manual or contact our technical support for further assistance. Proper installation, periodic inspection, and timely servicing will help you avoid downtime and extend the service life of your pneumatic equipment.

For additional services, we offer calibration, customized configuration, and onsite support to meet your specific application requirements. Trust our experienced technical team to provide expert advice and solutions tailored to your pneumatic system needs.

Packing and Shipping:

Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, corrugated cardboard box to ensure protection during transit. Inside the box, the product is cushioned with foam inserts and bubble wrap to prevent any damage from shocks or vibrations. The packaging includes clear labeling with product details, handling instructions, and safety information to facilitate easy identification and safe handling.

Shipping: The product is shipped via reliable courier services with tracking options available to ensure timely and secure delivery. It is packed to comply with international shipping standards, minimizing the risk of damage or loss. Depending on the destination, shipping methods include standard ground, expedited air freight, or express delivery options. Customers will receive shipping confirmation along with estimated delivery dates and tracking information.
