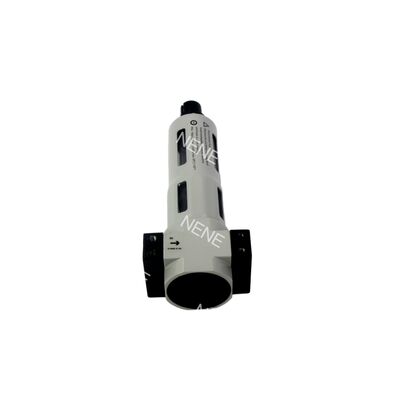

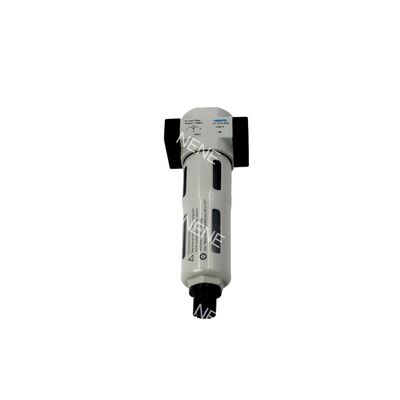

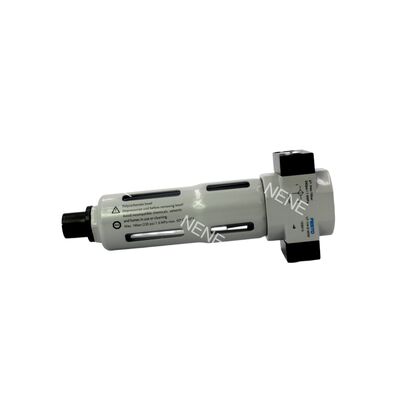

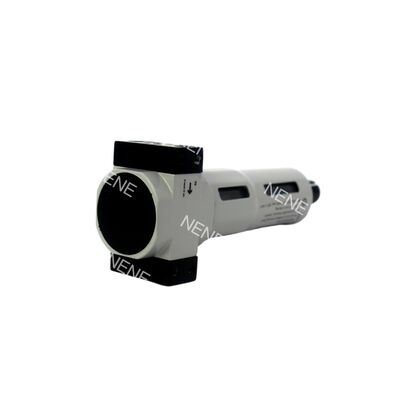

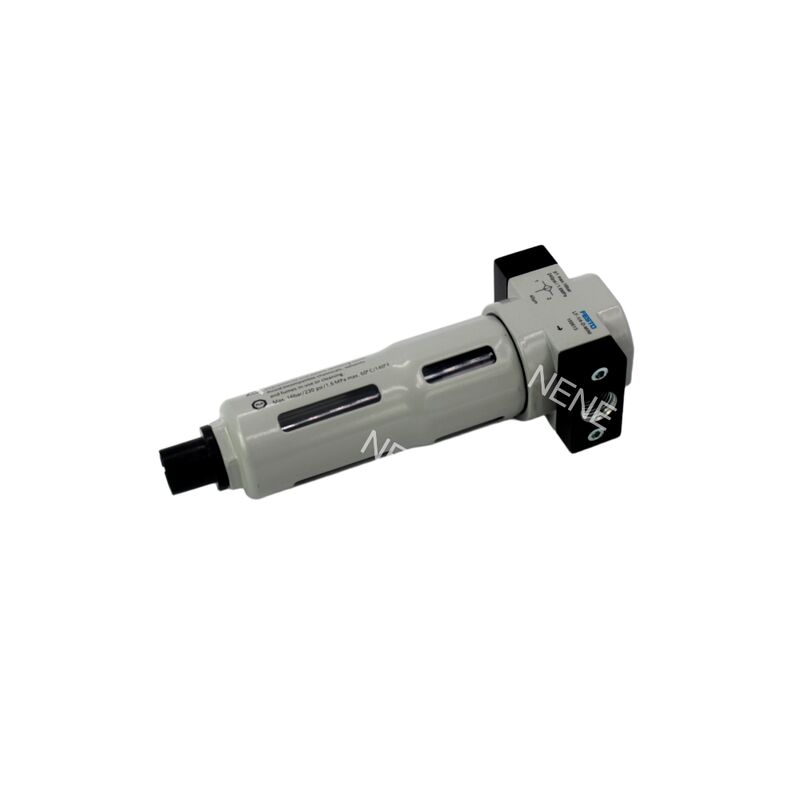

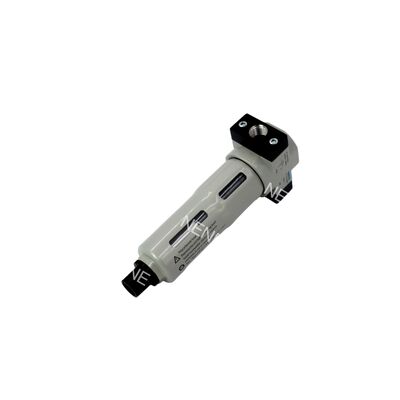

Product Description:
This product belongs to the FESTO D-MINI Series and functions as an integrated filter-regulator. The series includes a total of 10 different models, such as the LFR-1/8-D-MINI and LFR-1/8-D-MINI-A among others.
It comes with various port sizes including G1/8, G1/4, and G3/8. The available options cover standard models, Type A models with automatic drainage, MPA models with enhanced pressure resistance, as well as combined models featuring both Type A and MPA characteristics.
Featuring a compact and modular design, this product combines air filtration and pressure regulation into a single unit. It effectively filters impurities in compressed air with a filtration precision of 40 micrometers, and provides stable pressure output. This functionality helps to prevent damage to pneumatic components caused by contaminants and pressure fluctuations.
Widely compatible with various industrial pneumatic systems, the integrated filter-regulator is easy to install, offers reliable performance, and requires minimal maintenance, making it an excellent choice for diverse applications.
Features:
This device combines the dual functions of filtration and pressure reduction into a single compact unit. Its streamlined design not only saves valuable installation space but also simplifies the overall layout of pneumatic systems, enhancing efficiency and convenience.
With a filtration precision of up to 40μm, it effectively eliminates solid impurities and oil mist from compressed air. This ensures the protection of downstream pneumatic components, maintaining their performance and extending their lifespan.
The Type A model features an automatic drainage system, eliminating the need for manual intervention. This reduces maintenance efforts and boosts the operational efficiency of the equipment, allowing for smoother pneumatic system operation.
The MPA enhanced pressure-resistant variant is specially designed for demanding industrial environments. It offers excellent pressure resistance, making it ideal for use in harsh working conditions where reliability and durability are critical.
Equipped with precise pressure regulation capabilities, the device exhibits minimal hysteresis and provides a stable output pressure. This ensures the consistent and reliable operation of the entire pneumatic system.
Constructed with a metal shell, the device boasts corrosion resistance and impact durability. Its robust build guarantees a long service life, complies with international industrial standards, and offers strong versatility across various applications.
Technical Parameters:
| Type |
Filter-Regulator (LFR) |
| Port Size |
G1/8, G1/4, G3/8 |
| Brand |
FESTO |
| Working Pressure |
0.5-12bar |
| Series |
LFR |
| Special Configurations |
Optional Type A Automatic Drainage |
Applications:
Pneumatic control systems play a crucial role in automated production lines, CNC machine tools, and industrial robots. These systems ensure precise and reliable operation by utilizing compressed air to drive various mechanical components.
An essential part of pneumatic systems is the air source pre-treatment, which typically involves filtration and pressure reduction. This process is vital for the effective functioning of pneumatic actuators, such as cylinders and air grippers, by providing clean and stable air supply.
Pneumatic technology is extensively applied in machinery used for packaging, textiles, printing, and plastics. Each of these industries benefits from the controlled use of compressed air to improve equipment performance and efficiency.
In specialized sectors like electronic manufacturing, automotive parts production, and precision instruments, air source purification and pressure control are critical. These parameters must be tightly regulated to maintain high standards of quality and operational accuracy.
Moreover, compressed air pre-treatment is important for non-standard automated equipment and various industrial pipelines. Ensuring the purity and stability of compressed air across diverse applications supports the consistent and safe functioning of these systems.
Overall, many industrial fields depend on the purity and stability of air sources. Maintaining these conditions is fundamental to achieving optimal performance and longevity of pneumatic control systems.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For technical support, please refer to the installation and maintenance manual included with the product. This manual contains detailed instructions on setup, adjustment, troubleshooting, and routine maintenance.
Ensure that the filter bowl is regularly drained to remove accumulated contaminants and moisture, preventing damage to downstream equipment. The regulator should be adjusted to the required pressure settings according to your system specifications, and the lubricator oil level must be maintained within the recommended range for efficient operation.
If you experience any issues with the FRL unit, such as pressure fluctuations, air leaks, or lubrication problems, check for proper installation, cleanliness of the filter element, and correct adjustment of the regulator and lubricator. Replacement parts, including filter elements and seals, are available to maintain optimal functionality.
For service and repairs beyond routine maintenance, please contact authorized service centers or qualified technicians to ensure the product is handled according to manufacturer standards. Regular inspection and timely servicing of the Pneumatic Filter Regulator Lubricator will help maintain the reliability and efficiency of your pneumatic system.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, eco-friendly cardboard box with custom foam inserts to prevent damage during transit. Each unit is individually wrapped in a protective plastic film to guard against dust and moisture. The packaging includes a detailed user manual, installation guide, and warranty card to ensure proper usage and support.
Shipping: We offer reliable shipping options worldwide, ensuring prompt and safe delivery of the Pneumatic Filter Regulator Lubricator. Products are shipped via trusted courier services with tracking available for all orders. Standard shipping typically takes 5-7 business days, while expedited shipping options are available for faster delivery. All shipments are insured to protect against loss or damage during transit.
