Product Description:

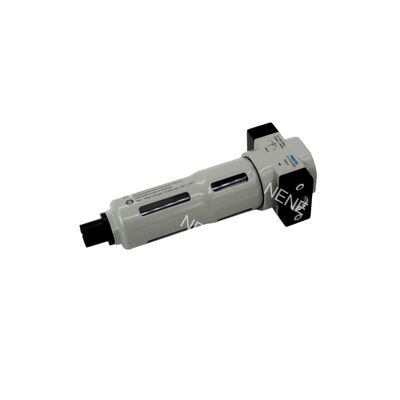

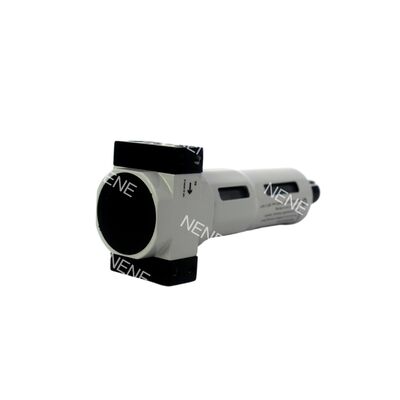

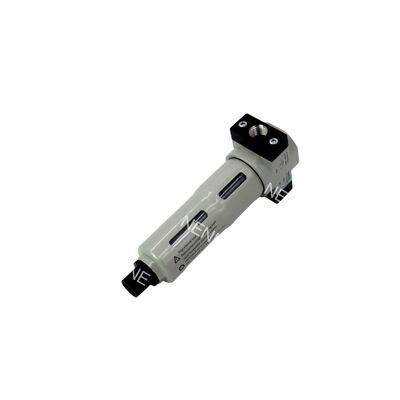

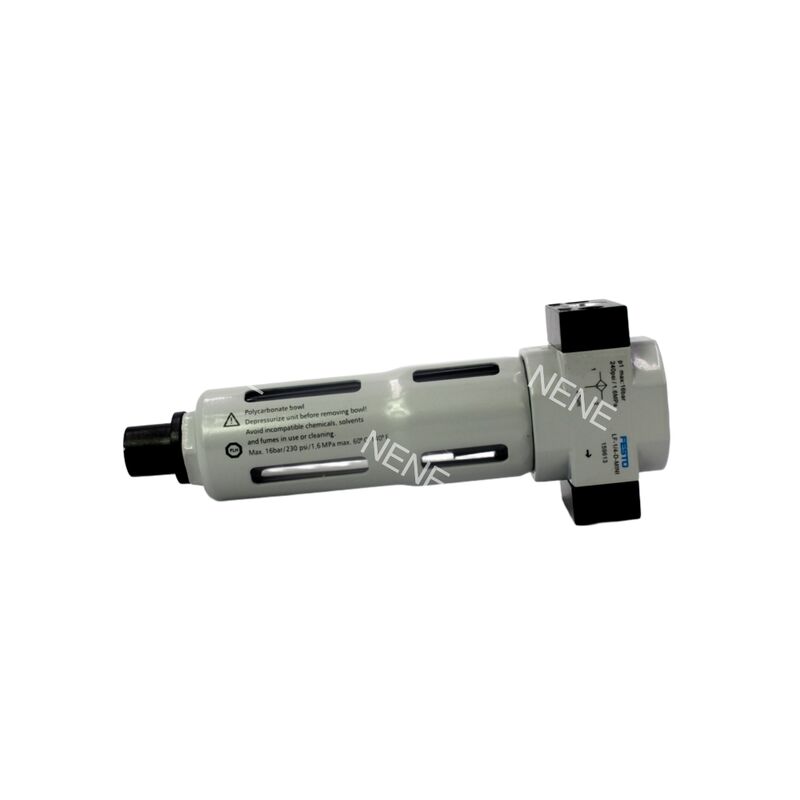

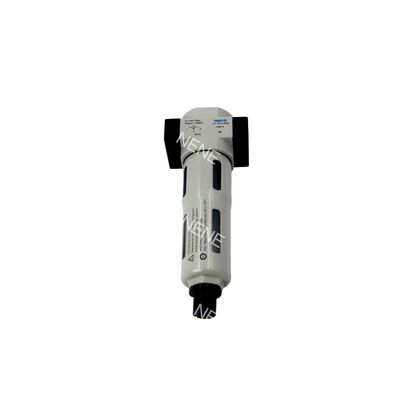

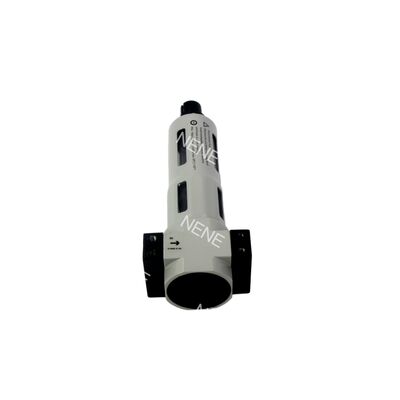

This product belongs to the FESTO D-MINI Series, serving as an integrated filter-regulator. The series includes a total of 10 different models, such as the LFR-1/8-D-MINI, LFR-1/8-D-MINI-A, among others. It offers various port size options including G1/8, G1/4, and G3/8 to meet diverse application requirements.
The product lineup encompasses standard models, Type A models with automatic drainage, MPA models with enhanced pressure resistance, as well as combined Type A + MPA models. Designed with a compact modular structure, it efficiently combines the air filtration and pressure regulation functions into a single unit.
Its precise filtration capability can remove impurities in compressed air with a filtration accuracy of 40μm, ensuring clean air supply. Meanwhile, it maintains stable pressure output, which helps prevent damage to pneumatic components caused by contaminants and pressure fluctuations.
Widely compatible with various industrial pneumatic systems, this integrated filter-regulator is praised for its easy installation, dependable performance, and low maintenance requirements, making it an ideal choice for demanding industrial environments.
Features:
This device combines two essential functions—filtration and pressure reduction—into a single compact unit. Its streamlined design not only saves valuable installation space but also simplifies the overall layout of pneumatic systems.
With a filtration accuracy of up to 40 micrometers, it effectively eliminates solid impurities and oil mist from compressed air. This ensures the protection and longevity of downstream pneumatic components by maintaining cleaner air quality.
The Type A model features an automatic drainage system that operates without manual intervention. This reduces the maintenance burden and enhances the efficiency of equipment operation by ensuring continuous and reliable drainage.
Designed for demanding industrial environments, the MPA enhanced pressure-resistant variant offers outstanding pressure resistance. It is well-suited for harsh working conditions, meeting the rigorous requirements of high-pressure applications.
Its precise pressure regulation capabilities result in minimal hysteresis and stable output pressure. This consistency is critical for guaranteeing the smooth and reliable operation of pneumatic systems.
Constructed with a metal shell, the unit provides excellent corrosion and impact resistance. It boasts a long service life and adheres to international industrial standards, making it a versatile choice for a wide range of applications.
Technical Parameters:
| Working Pressure |
0.5-12bar |
| Brand |
FESTO |
| Type |
Filter-Regulator (LFR) |
| Special Configurations |
Optional Type A Automatic Drainage |
| Port Size |
G1/8, G1/4, G3/8 |
| Series |
LFR |
Applications:
Pneumatic control systems play a crucial role in automated production lines, CNC machine tools, and industrial robots. These systems enable precise and efficient operation by utilizing compressed air to drive various mechanical components.
Prior to use, the air source undergoes pre-treatment processes such as filtration and pressure reduction. This treatment is essential for ensuring optimal performance of pneumatic actuators, including cylinders and air grippers.
Pneumatic technology is also widely applied in machinery for packaging, textiles, printing, and plastics. Each of these sectors benefits from reliable and controlled air pressure to maintain smooth and consistent operation.
In addition, air source purification and pressure regulation are vital in industries like electronic manufacturing, automotive parts production, and the fabrication of precision instruments. These processes ensure that the compressed air meets stringent quality standards.
Compressed air pre-treatment is equally important for non-standard automated equipment and industrial pipeline systems. Proper air quality and pressure stability are key factors in maintaining the reliability and longevity of such equipment.
Overall, many industrial fields require air sources that provide both purity and stable pressure. Addressing these needs is fundamental to enhancing operational efficiency and product quality across diverse applications.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure clean, regulated, and lubricated air supply for your pneumatic systems, enhancing performance and extending the life of your equipment.
If you encounter any issues with your FRL unit, please verify the following before seeking technical support:
- Ensure the unit is installed according to the manufacturer's guidelines, with correct airflow direction.
- Check that the filter element is clean and free from debris.
- Confirm that the regulator is set to the appropriate pressure level for your application.
- Verify that the lubricator has an adequate supply of lubricant and that the drip rate is properly adjusted.
- Inspect for any air leaks or damaged components.
For maintenance, regularly drain accumulated moisture from the filter bowl and replace filter elements and lubricator oil as recommended in the product manual. Use only manufacturer-approved replacement parts to maintain optimal performance and safety.
Our technical support team is available to assist with troubleshooting, maintenance guidance, and replacement parts information to ensure your Pneumatic Filter Regulator Lubricator operates efficiently.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a durable, high-quality cardboard box designed to protect the unit from damage during transit. Inside the box, the product is cushioned with foam inserts or molded plastic to prevent movement and absorb shocks. All components, including fittings, manuals, and accessories, are neatly organized and sealed in individual plastic bags to ensure cleanliness and ease of installation. The packaging is clearly labeled with product specifications, handling instructions, and safety warnings to facilitate proper storage and handling.
Shipping: The Pneumatic Filter Regulator Lubricator is shipped via reliable courier services that ensure timely and safe delivery. Each package is inspected before dispatch to confirm product integrity and correct labeling. Shipping options include standard, expedited, and freight services to accommodate different customer needs. For bulk orders, products are palletized and wrapped to prevent damage during loading and unloading. Tracking information is provided to customers for real-time shipment monitoring, and customer support is available to address any shipping inquiries or concerns.
