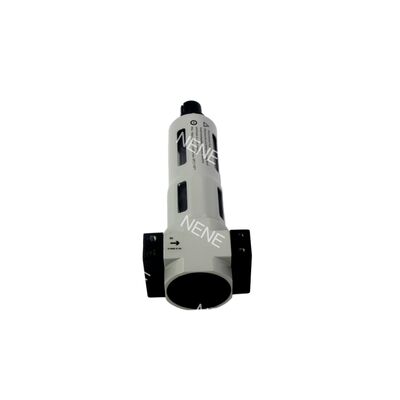

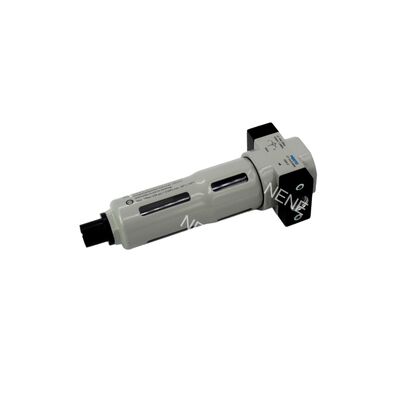

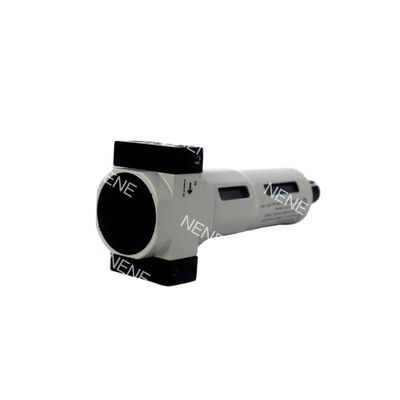

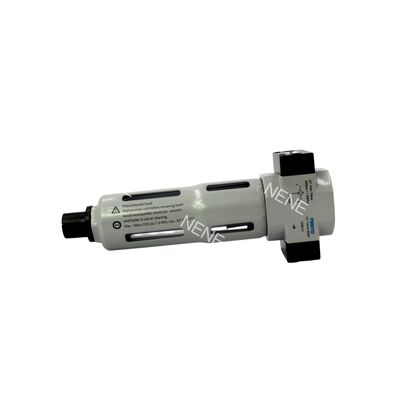

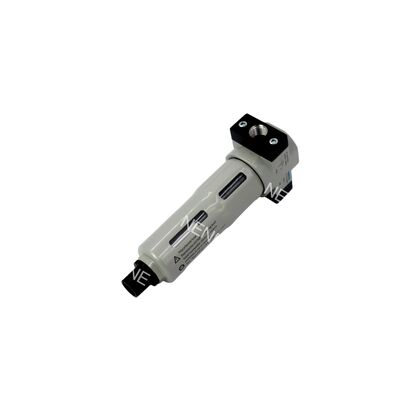

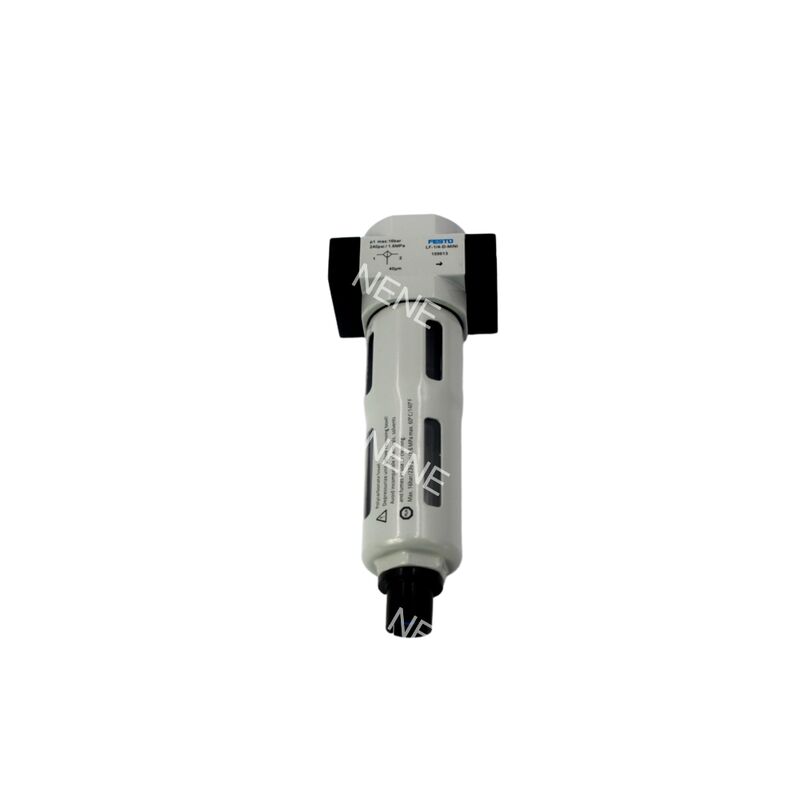

LFR-1/8-D-MINI-A 159634 Festo Zinc Alloy Filter Regulator With Gauge G1/8 40µm Fully Automatic Drain 0.5-12bar

Product Description:

The product belongs to the FESTO D-MINI Series and functions as an integrated filter-regulator. This series includes 10 different models, such as the LFR-1/8-D-MINI and LFR-1/8-D-MINI-A, among others. The product supports various port sizes, including G1/8, G1/4, and G3/8, allowing flexibility in applications.

There are several versions available to cater to different needs: standard models, Type A models with automatic drainage, MPA models designed for enhanced pressure resistance, as well as combined models that incorporate both Type A and MPA features. This modular and compact design effectively consolidates air filtration and pressure regulation into one device.

With a filtration precision of 40 micrometers, the unit efficiently removes impurities from compressed air, ensuring stable pressure output. This helps prevent potential damage to pneumatic components caused by contaminants or fluctuations in pressure. Due to its versatile compatibility with a wide range of industrial pneumatic systems, it is an ideal choice for various applications.

In addition to its functional benefits, the product is designed for easy installation, offers reliable performance, and facilitates simple maintenance, making it a practical and dependable component in any pneumatic system.

Features:

This device combines dual functionalities of filtration and pressure reduction into a single, compact unit. Its streamlined design not only conserves valuable installation space but also simplifies the overall layout of pneumatic systems.

Featuring a filtration precision of up to 40μm, it effectively removes solid impurities and oil mist from compressed air. This purification process safeguards downstream pneumatic components from potential damage, thereby enhancing system reliability.

The Type A variant includes an automatic drainage function, eliminating the need for manual intervention. This innovation reduces maintenance efforts and boosts the operational efficiency of the equipment.

Specifically designed for demanding industrial environments, the MPA enhanced pressure-resistant model offers superior pressure tolerance. It excels under harsh working conditions, fulfilling the requirements of high-demand applications.

With accurate pressure regulation and minimal hysteresis, the device delivers a stable output pressure. This ensures consistent and reliable performance of the pneumatic system it supports.

Constructed with a metal shell, the product is both corrosion-resistant and impact-resistant, guaranteeing a long service life. It complies with international industrial standards and boasts strong versatility across various applications.

Technical Parameters:

Applications:

Pneumatic control systems play a crucial role in automated production lines, CNC machine tools, and industrial robots. These systems ensure efficient and precise operation by utilizing compressed air to power various actuators and components.

One important aspect of pneumatic systems is air source pre-treatment, which includes filtration and pressure reduction. This process is essential for maintaining the performance of pneumatic actuators such as cylinders and air grippers, helping to extend their lifespan and reliability.

In addition to manufacturing automation, pneumatic systems are widely used in packaging machinery, textile machinery, printing equipment, and plastic machinery. These applications benefit from the flexibility and efficiency offered by compressed air systems.

Air source purification and pressure control are particularly critical in industries like electronic manufacturing, automotive parts production, and precision instrument fabrication. Maintaining clean and stable air pressure ensures high-quality outcomes and prevents damage to sensitive components.

Furthermore, compressed air pre-treatment is necessary for customized automated equipment and various industrial pipelines. Many industrial sectors demand high air purity and stable pressure to optimize operational efficiency and product quality.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure clean, regulated, and lubricated air supply for pneumatic systems, enhancing the performance and longevity of your equipment. For optimal operation, it is essential to install the FRL unit in the correct orientation and location within your pneumatic circuit, typically close to the point of use.

Regular maintenance is crucial to maintain the efficiency of the FRL unit. Check and drain the filter bowl frequently to remove accumulated moisture and contaminants. Replace filter elements as recommended by the manufacturer or when visibly dirty. Adjust the regulator to the required pressure setting and verify it periodically to ensure consistent output pressure.

Lubricator reservoirs should be filled with the appropriate pneumatic oil and adjusted to provide the correct amount of lubrication to downstream components. Avoid over-lubrication as it can cause malfunction or damage to pneumatic devices.

When troubleshooting, verify that the air supply is clean and dry, the filter element is intact, the regulator is properly set and functioning, and the lubricator is delivering oil correctly. Replace any damaged or worn parts with genuine replacement components to maintain product performance and warranty coverage.

For detailed installation instructions, maintenance schedules, and troubleshooting guides, please refer to the product manual provided with the unit. Proper adherence to these guidelines will ensure reliable operation and extend the service life of your Pneumatic Filter Regulator Lubricator.
