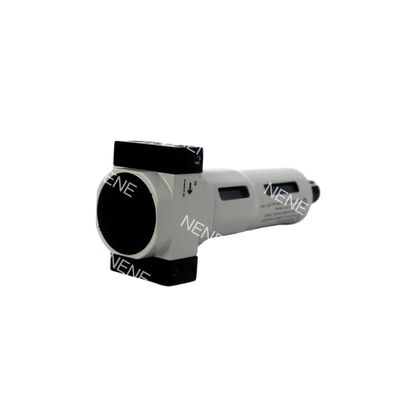

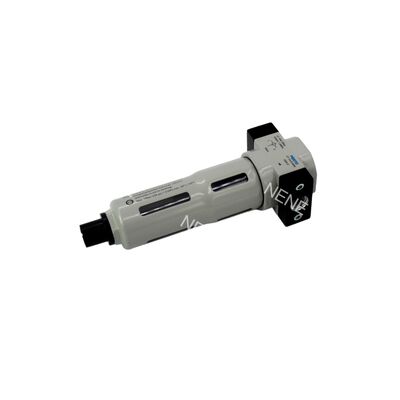

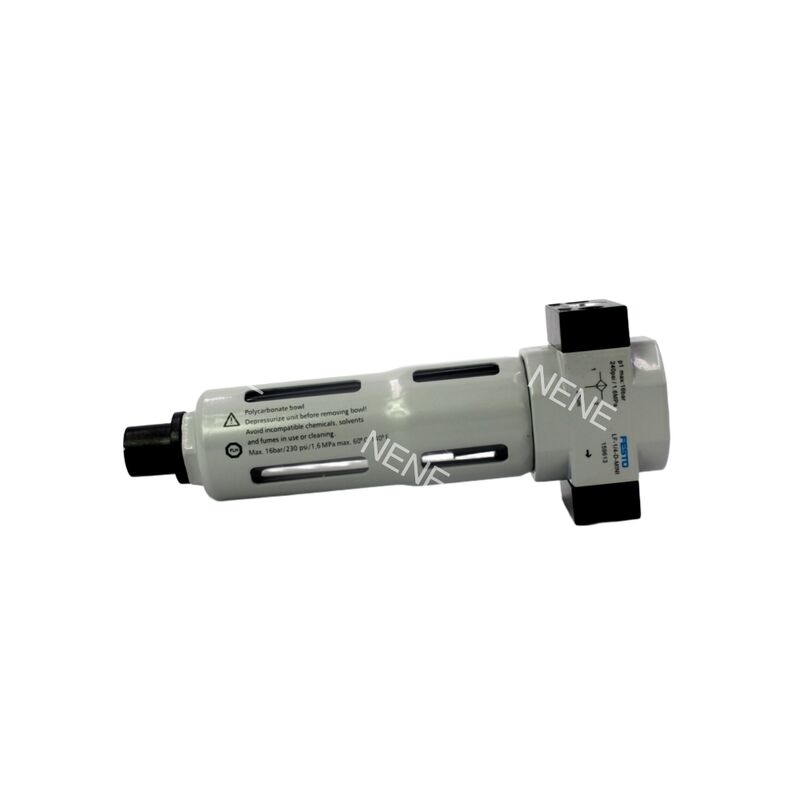

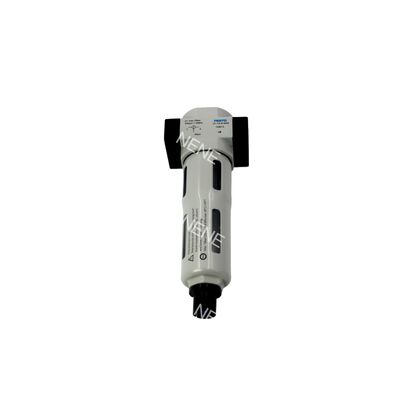

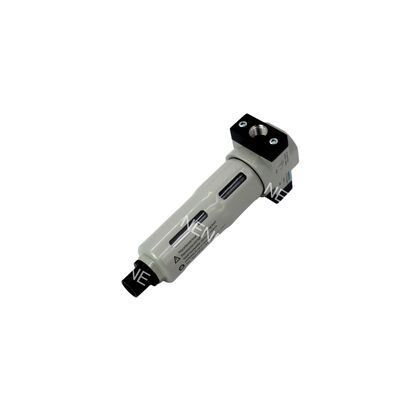

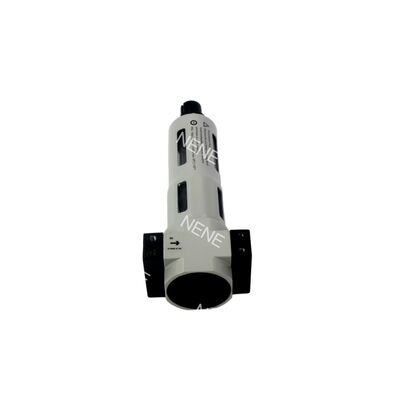

Filter regulator with manual drain 40 μm grade Festo LFR-1/8-D-MINI 159630 die-cast zinc 0.5-12 bar G1/8 750 L/min pressure gauge lockable rotary knob metal bowl guard

Product Description:

The product belongs to the FESTO D-MINI Series and functions as an integrated filter-regulator. This series encompasses 10 different models, including the LFR-1/8-D-MINI and LFR-1/8-D-MINI-A among others.

Available with port sizes of G1/8, G1/4, and G3/8, the product lineup features standard models, Type A models with automatic drainage, MPA models with enhanced pressure resistance, as well as combined Type A and MPA models. This variety ensures that users can select the most suitable option for their specific pneumatic requirements.

Designed with a compact modular structure, this filter-regulator combines air filtration and pressure regulation into a single unit. It can precisely filter out impurities from compressed air with a filtration accuracy of 40 micrometers (μm) while maintaining stable pressure output. This functionality effectively prevents damage to pneumatic components caused by contaminants and pressure fluctuations.

Widely compatible with various industrial pneumatic systems, the product is known for its easy installation, dependable performance, and straightforward maintenance. These attributes make it an ideal choice for enhancing the reliability and efficiency of pneumatic setups.

Features:

This device combines dual functionality by integrating both filtration and pressure reduction in a single compact unit. Its streamlined design not only saves valuable installation space but also simplifies the overall layout of pneumatic systems, making it an efficient choice for various applications.

With a filtration precision reaching up to 40μm, it effectively removes solid impurities and oil mist from compressed air. This thorough filtration helps protect downstream pneumatic components from contamination, thus enhancing their performance and longevity.

The Type A model features an automatic drainage system, eliminating the need for manual intervention. This automation reduces maintenance efforts significantly while boosting the operational efficiency of the equipment.

Designed for demanding industrial environments, the MPA enhanced pressure-resistant version offers superior pressure resistance. It is well-suited for harsh working conditions, fulfilling the rigorous requirements of high-demand applications.

Equipped with precise pressure regulation capabilities, the device ensures minimal hysteresis and a stable output pressure. This stability is crucial for maintaining the consistent and reliable operation of the entire pneumatic system.

Constructed with a metal shell, the unit offers excellent corrosion and impact resistance. Its robust build guarantees a long service life, complies with international industrial standards, and provides strong versatility across different usage scenarios.

Technical Parameters:

Applications:

Pneumatic control systems play a crucial role in automated production lines, CNC machine tools, and industrial robots. These systems ensure efficient and precise operation by controlling the movement and function of various pneumatic components.

To maintain optimal performance, air source pre-treatment is essential. This involves filtration and pressure reduction processes designed specifically for pneumatic actuators such as cylinders and air grippers. Proper treatment of the air source enhances the lifespan and reliability of these components.

Pneumatic systems are widely utilized in diverse machinery, including packaging equipment, textile machines, printing devices, and plastic processing machines. Each of these applications demands tailored pneumatic solutions to meet specific operational requirements.

In sectors like electronic manufacturing, automotive parts production, and precision instrument fabrication, air source purification and pressure control are critical. These measures ensure the cleanliness and stability of compressed air, which directly impacts product quality and equipment performance.

Additionally, compressed air pre-treatment is vital for non-standard automated equipment and various industrial pipelines. Ensuring air purity and consistent pressure helps maintain smooth and safe operation across different industrial applications.

Overall, numerous industries rely on high standards of air source purity and pressure stability to achieve efficient and reliable pneumatic system performance.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by filtering, regulating, and lubricating the compressed air supply.

For technical support, please ensure that you have the model number, serial number, and a detailed description of the issue ready. Our support team can assist with installation guidance, troubleshooting, maintenance tips, and replacement parts information.

Regular maintenance of the FRL unit is crucial. This includes checking and replacing filter elements, draining accumulated moisture from the filter bowl, adjusting the regulator to the desired pressure, and refilling the lubricator with the appropriate pneumatic oil.

We recommend using only manufacturer-approved replacement parts and lubricants to maintain the warranty and ensure reliable operation.

For service and repair, please refer to the product manual for detailed instructions or contact authorized service centers.

Our technical support resources also include downloadable manuals, FAQs, and instructional videos available on our website to help you maximize the efficiency and lifespan of your FRL units.
