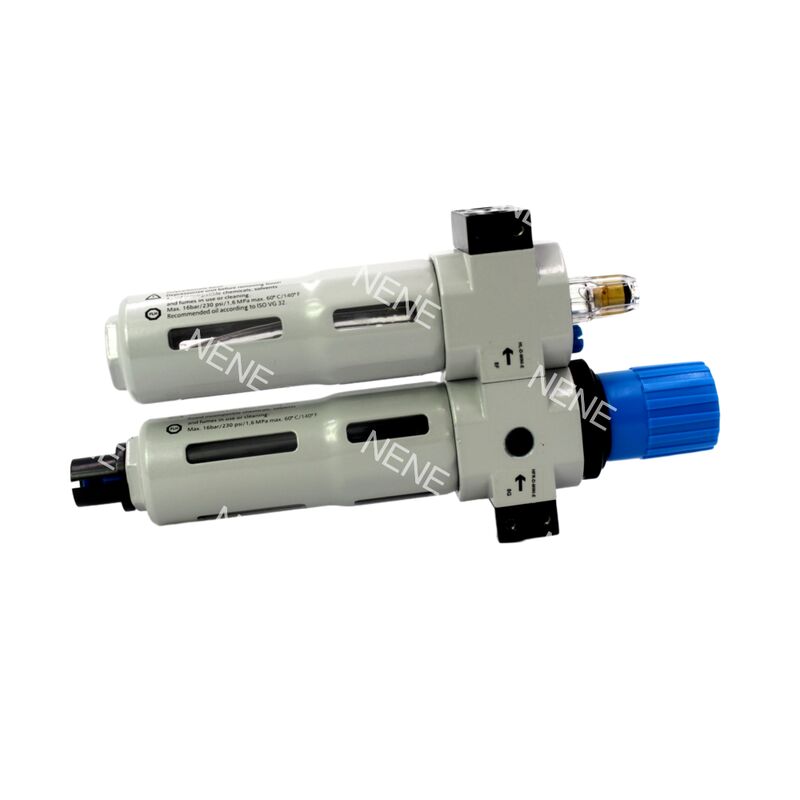

Product Description:
The FRC-D-MINI series air treatment units are compact and high-performance modules specifically engineered for small to medium-sized pneumatic systems. These units combine essential functions such as air filtration, pressure regulation, and optional lubrication within a space-saving MINI body, allowing for flexible and convenient installation.
The series offers a variety of models tailored to different needs, including versions with manual or automatic drains (-A), options featuring a pressure gauge port (-MPA), as well as basic configurations. This versatility ensures that users can select the most suitable model for their specific application requirements.
All models within the FRC-1/8-D-MINI, FRC-1/4-D-MINI, FRC-3/8-D-MINI families and their variants share a consistent core structure and follow uniform maintenance standards. This commonality greatly simplifies spare parts management and reduces downtime.
Designed for precision, these units provide stable downstream pressure through accurate pressure regulation. Moreover, their efficient filtration system effectively removes moisture and particles from the air, thereby enhancing the durability and performance of connected pneumatic components.
Features:
Compact MINI Design
The compact MINI design significantly reduces installation space requirements, making it an excellent choice for distributed air preparation systems. Its small footprint allows for flexible placement in various industrial environments.
Modular Combination
This system offers modular combinations, enabling users to integrate a filter, regulator, and lubricator as needed. This versatility allows customization to meet specific operational demands efficiently.
High Filtration Accuracy
Equipped with a standard filtration accuracy of 40 microns, and an optional 5 micron filter, the unit effectively removes water, oil, and particulate contaminants from the air supply, ensuring cleaner and safer operation.
Stable Pressure Regulation
The regulator maintains a stable pressure with minimal secondary pressure fluctuation. A locking knob feature prevents unintended adjustments, safeguarding the set pressure value.
Optional Functions
Additional options include an auto-drain function, identified by the suffix -A , which allows for hands-free water drainage. Another option, indicated by -MPA , integrates a pressure gauge port for convenient pressure monitoring.
Durable Materials
Constructed with a polycarbonate bowl protected by a metal guard, this unit is resistant to impact and corrosion. The transparent bowl design facilitates easy level checking and maintenance.
Technical Parameters:
| Port size |
G1/8", G1/4", G3/8" |
| Product Series |
FRC-D-MINI |
| Material |
Die-cast Zinc Body, PC Bowl, RoHS Compliant |
| Filtration Rating |
40 μm |
| Max. operating pressure |
0.5 ~ 12 Bar |
| Operating temperature |
-10°C ~ +60°C |
Applications:
Automation equipment plays a crucial role in various industries, including assembly lines, packaging machinery, and electronics assembly. These systems help streamline production processes, improve efficiency, and reduce manual labor.
Pneumatic tools such as air screwdrivers, spray guns, and cylinders operate by utilizing clean air, which can be optionally lubricated for optimal performance. These tools are known for their reliability and precision in different applications.
In laboratory and testing environments, precise regulation is essential for pneumatic control systems. Accurate control ensures consistent and reliable operation, which is critical for research and quality assurance processes.
Light manufacturing sectors, including printing, textiles, and food packaging, often rely on pneumatic solutions. In particular, oil-free versions are used where contamination must be avoided, maintaining product integrity and safety.
The medical device industry also benefits from pneumatic technology. Equipment such as dental tools and small oxygen concentrators utilize these systems to protect air circuits, ensuring safe and effective operation for patient care.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For technical support, please refer to the product manual for detailed installation, operation, and maintenance instructions.
Regular maintenance is crucial for the efficient functioning of the FRL units. Ensure to periodically check and replace the filter elements, drain accumulated moisture from the filter bowl, and refill the lubricator with the appropriate oil as specified in the manual. Avoid using incompatible lubricants to prevent damage to downstream components.
In case of any operational issues such as pressure fluctuations, air leaks, or insufficient lubrication, verify the connections and inspect the filter and lubricator elements for clogging or wear. Replacement parts are available to maintain the integrity of the system.
For customization, spare parts, and upgrade options, consult the technical documentation provided with the product or visit our online resources for troubleshooting guides and FAQs.
Our technical support team is available to assist with installation advice, troubleshooting, and performance optimization to ensure your pneumatic systems operate smoothly and efficiently.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, corrosion-resistant box to ensure protection during transit. Inside the box, the unit is cushioned with high-density foam inserts to prevent any damage from shocks or vibrations. Each package includes the main filter regulator lubricator assembly, mounting brackets, installation manual, and necessary fittings, all neatly organized and sealed to maintain cleanliness and integrity.
Shipping Information: Our Pneumatic Filter Regulator Lubricator units are shipped via reliable carriers with tracking options available to ensure timely delivery. We offer multiple shipping options including standard, expedited, and freight services depending on order size and destination. All shipments are carefully labeled with handling instructions to guarantee the product arrives in perfect working condition. International shipping is also available with appropriate customs documentation provided.
