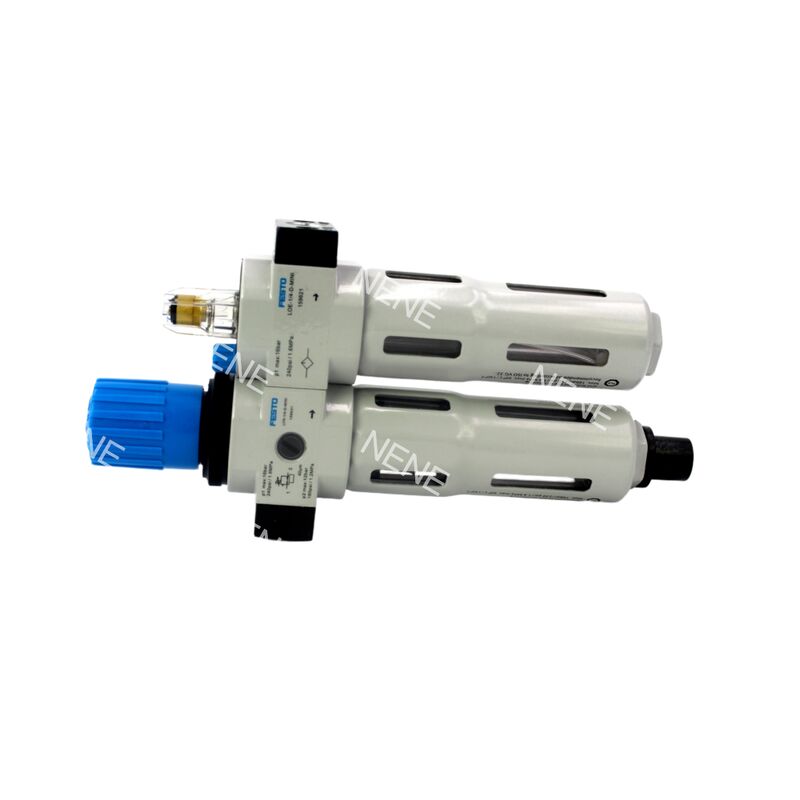

Manual Drain G1/4 40μm 0.5-12bar Festo FRC-1/4-D-MINI 159605 Zinc Alloy Filter Regulator Lubricator With Gauge

Product Description:

The FRC-D-MINI series air treatment units are designed as compact, high-performance modules tailored for small to medium-sized pneumatic systems. These units efficiently combine essential functions such as air filtration, pressure regulation, and optional lubrication within a space-saving MINI-sized body, allowing for versatile installation options.

The series offers various models to meet different operational needs, including versions equipped with manual or automatic drains (-A), pressure gauge ports (-MPA), as well as basic models without additional features. This range ensures that users can select the most suitable configuration for their specific pneumatic applications.

All variants of the FRC-1/8-D-MINI, FRC-1/4-D-MINI, and FRC-3/8-D-MINI share a consistent core design and adhere to uniform maintenance standards. This commonality significantly simplifies spare parts management and maintenance processes, enhancing operational efficiency.

Precision in pressure regulation guarantees stable downstream air pressure, while effective filtration removes moisture and particulate contaminants. These features contribute to prolonging the lifespan of pneumatic components, promoting reliable and long-lasting system performance.

Features:

The design features a compact MINI size, making it an excellent choice for saving installation space. This compactness makes it particularly suitable for distributed air preparation systems where space efficiency is crucial.

Its modular structure allows for flexible combinations, enabling users to integrate a filter, regulator, and lubricator as needed. This adaptability supports customized configurations tailored to specific requirements.

The product offers high filtration accuracy with a standard rating of 40 microns, and an optional upgrade to 5 microns. It effectively removes contaminants such as water, oil, and airborne particles, ensuring cleaner air output.

Pressure regulation is stable and reliable, featuring low secondary pressure fluctuation. Additionally, a locking knob is included to prevent unauthorized adjustments and maintain consistent performance.

Optional features are available for enhanced convenience, including an auto-drain function indicated by the suffix “-A” for hands-free operation, and the “-MPA” option that integrates a pressure gauge port for easy monitoring.

Constructed from durable materials, the unit includes a polycarbonate bowl protected by a metal guard. This combination offers resistance against impact and corrosion, while the transparent bowl design facilitates easy checking of fluid levels.

Technical Parameters:

Applications:

Automation equipment encompasses a variety of systems such as assembly lines, packaging machinery, and electronics assembly. These technologies streamline production processes, enhancing efficiency and consistency in manufacturing.

Pneumatic tools include devices like air screwdrivers, spray guns, and cylinders. These tools operate using clean, and optionally lubricated, compressed air to ensure smooth functioning and reliable performance.

In laboratory and testing environments, precise regulation of pneumatic control systems is essential. This accuracy supports reliable experimentation and quality assurance across various applications.

Light manufacturing industries, including printing, textiles, and food packaging, often utilize pneumatic systems. In such cases, oil-free versions are preferred to maintain product purity and meet industry standards.

The medical device sector also relies on pneumatic technologies for equipment such as dental tools and small oxygen concentrators. These systems are designed to protect sensitive air circuits, ensuring safety and effectiveness in medical applications.

Support and Services:

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure clean, regulated, and lubricated air for optimal performance of pneumatic systems. To maintain the efficiency and longevity of your FRL, regular maintenance and proper installation are essential.

For technical support, ensure that the FRL is installed according to the manufacturer’s guidelines, with correct orientation and secure fittings. Check that the air supply is free from excessive moisture and contaminants before entering the filter unit.

Periodic inspection of the filter element is recommended to prevent clogging and pressure drop. Replace the filter element as specified in the maintenance schedule or sooner if contamination is detected. The lubricator oil level should be checked regularly and refilled with the appropriate pneumatic oil to maintain proper lubrication of downstream components.

If you experience issues such as pressure instability, air leaks, or insufficient lubrication, verify all connections and settings, including the regulator’s pressure setpoint and the lubricator’s oil feed rate. Cleaning the FRL components with suitable solvents and ensuring no debris obstructs the airflow path can resolve common problems.

For advanced troubleshooting or replacement parts, consult the product manual for detailed instructions. Our technical team is committed to assisting you in optimizing your pneumatic system’s performance through expert guidance and support services.
