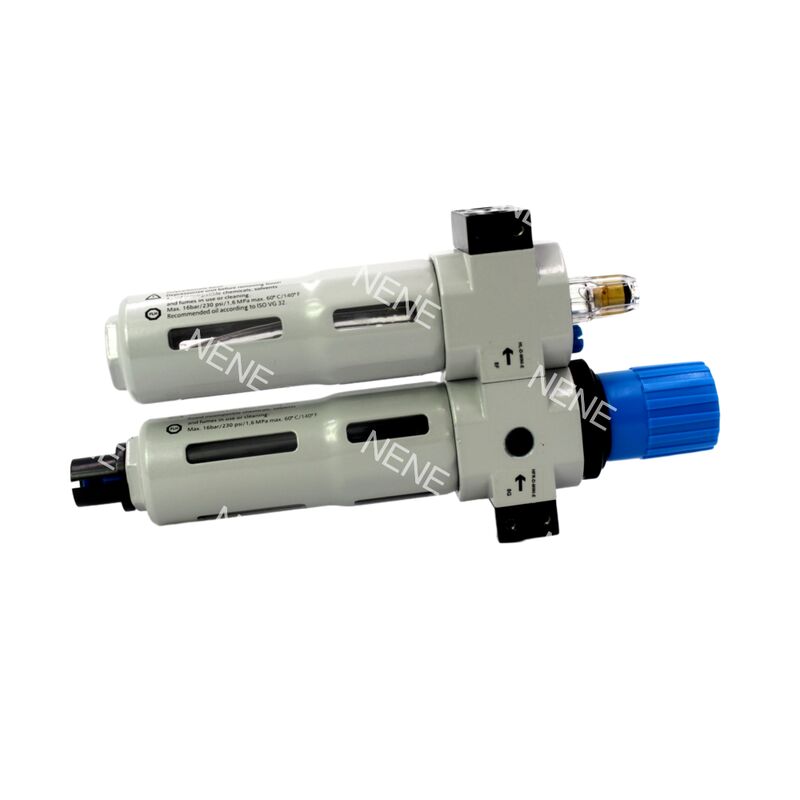

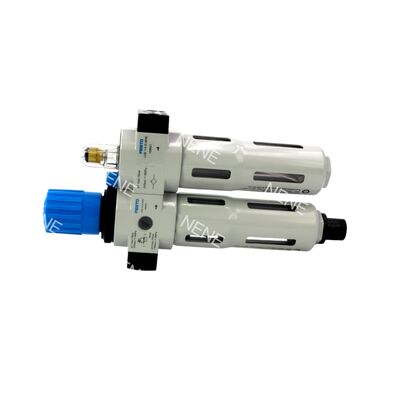

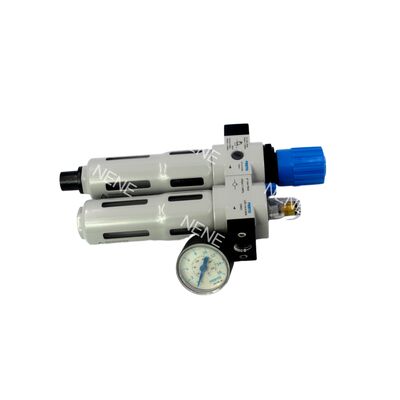

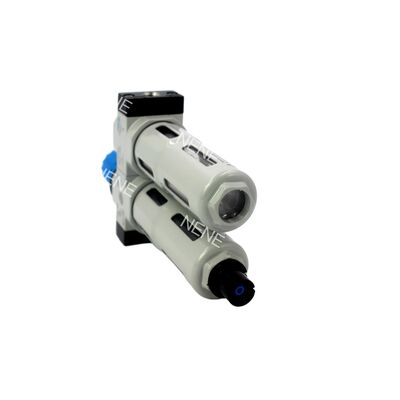

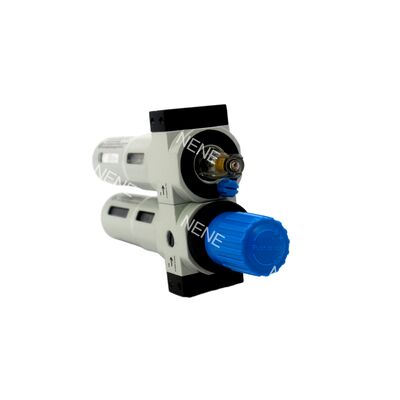

Product Description:
The FRC-D-MINI series air treatment units are compact and high-performance modules specifically engineered for small to medium-sized pneumatic systems. These units combine essential functions such as air filtration, pressure regulation, and optional lubrication within a space-saving MINI-sized body. This design allows for flexible installation in various applications.
The series includes multiple models that cater to different needs: options with manual or automatic drains (-A), versions equipped with a pressure gauge port (-MPA), as well as basic configurations without additional features. Despite the variety, all variants like the FRC-1/8-D-MINI, FRC-1/4-D-MINI, FRC-3/8-D-MINI, and their derivatives maintain the same core structural design and adhere to uniform maintenance standards.
This commonality simplifies spare parts management and maintenance procedures. The units offer precise pressure regulation to ensure a stable downstream pressure, vital for the smooth operation of pneumatic systems. In addition, the efficient filtration system effectively removes moisture and particles from the air supply, which helps prolong the lifespan of connected pneumatic components.
Features:
The compact MINI design effectively saves installation space, making it an excellent choice for distributed air preparation systems. Its small footprint ensures it fits seamlessly into various setups without requiring excessive room.
This product offers a modular combination system, allowing users to customize their setup by combining filters, regulators, and lubricators according to specific needs. This flexibility enhances its adaptability across different applications.
With high filtration accuracy, the standard filter removes particles as small as 40 µm, with an optional upgrade to 5 µm for even finer filtration. It efficiently eliminates water, oil, and various contaminants to ensure clean air supply.
The pressure regulation is notably stable, maintaining low secondary pressure fluctuations. Additionally, a locking knob feature helps prevent unauthorized adjustments, ensuring consistent performance over time.
Several optional functions are available to enhance usability. Adding the suffix “-A” enables an automatic drain for hands-free operation, while the “-MPA” suffix incorporates an integrated pressure gauge port for easy monitoring.
Constructed from durable materials, it features a polycarbonate bowl protected by a metal guard. This design offers excellent impact and corrosion resistance. The transparent bowl also allows for straightforward visual inspection of the fluid level.
Technical Parameters:
| Product Series |
FRC-D-MINI |
| Port Size |
G1/8", G1/4", G3/8" |
| Operating Temperature |
-10°C ~ +60°C |
| Filtration Rating |
40 μm |
| Material |
Die-cast Zinc Body, PC Bowl, RoHS Compliant |
| Max. Operating Pressure |
0.5 ~ 12 Bar |
Applications:
Automation equipment encompasses various systems such as assembly lines, packaging machines, and electronics assembly units. These technologies streamline manufacturing processes, improving efficiency and consistency.
Pneumatic tools include devices like air screwdrivers, spray guns, and cylinders. These tools utilize clean air, which can be optionally lubricated, to deliver reliable performance in a variety of industrial applications.
Laboratory and testing environments require precise regulation, particularly for pneumatic control systems. Accurate control ensures dependable and repeatable outcomes in scientific and industrial testing procedures.
Light manufacturing sectors, including printing, textile production, and food packaging, often rely on pneumatic solutions. In such cases, oil-free versions are typically used to maintain product purity and meet safety standards.
Medical devices, ranging from dental equipment to small oxygen concentrators, benefit from specialized pneumatic components that safeguard air circuits. This protection is essential to ensure the safety and reliability of medical applications.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air. For technical support, please ensure that your FRL is installed according to the manufacturer’s guidelines, including proper air pressure settings and regular maintenance schedules.
If you experience issues such as inconsistent pressure, air leaks, or lubrication problems, verify that the filter element is clean and replaced as needed, the regulator is correctly adjusted, and the lubricator contains the appropriate type and amount of oil. Regular inspection and maintenance will prevent most common problems and ensure reliable operation.
For troubleshooting, refer to the product manual for step-by-step guidance on disassembly, cleaning, and parts replacement. Use only genuine replacement parts to maintain performance and safety standards. Our technical team is available to assist with complex issues, installation advice, and performance optimization to meet your specific application requirements.
We also offer a range of service options including on-site support, preventive maintenance programs, and training sessions to help your team maximize the benefits of your Pneumatic Filter Regulator Lubricator system. Please consult your service agreement for details on available support packages.
Packing and Shipping:
The Pneumatic Filter Regulator Lubricator is carefully packaged to ensure protection during transit. Each unit is securely placed in a custom-fitted foam insert within a sturdy corrugated cardboard box to prevent movement and damage.
All components are individually wrapped in protective materials to avoid scratches and contamination. The packaging is designed to withstand typical shipping conditions, including vibrations and impacts.
For shipping, the product is labeled with handling instructions such as "Fragile" and "This Side Up" to ensure proper care. We use reliable courier services that provide tracking and timely delivery to guarantee the product arrives safely at its destination.
Bulk orders are palletized and shrink-wrapped to provide additional stability and protection during transport. Environmental considerations are taken into account by using recyclable and eco-friendly packaging materials wherever possible.
