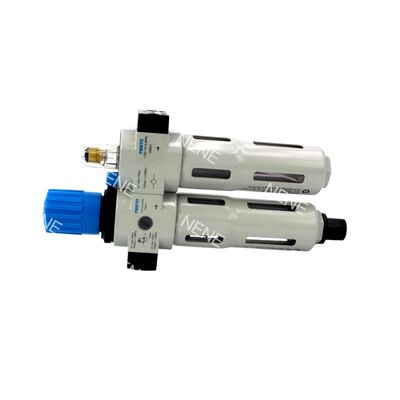

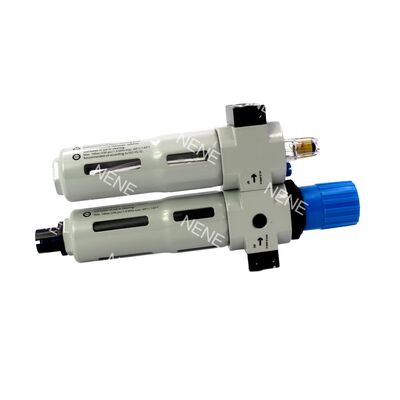

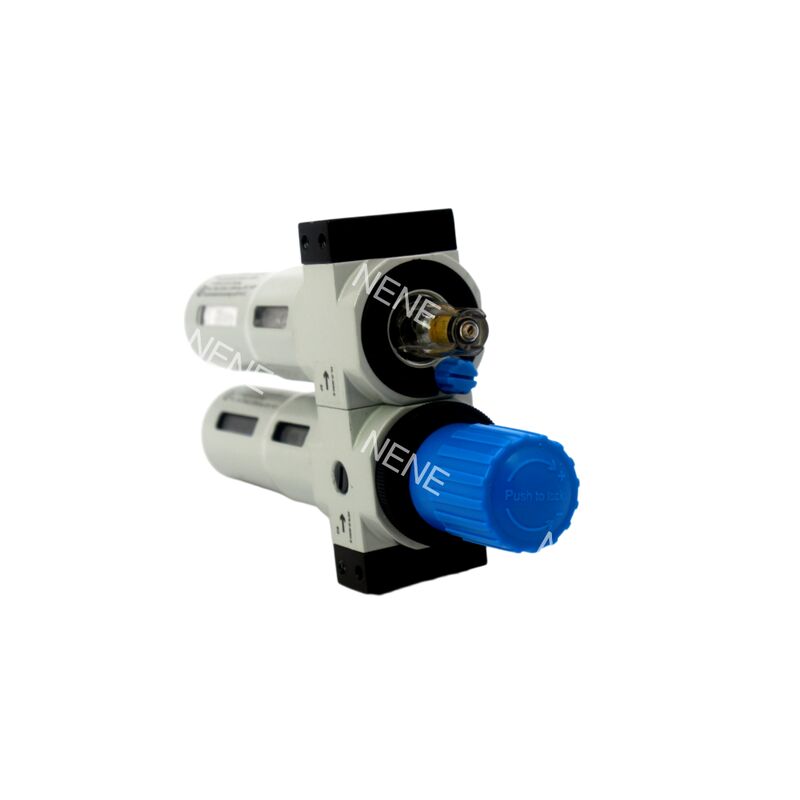

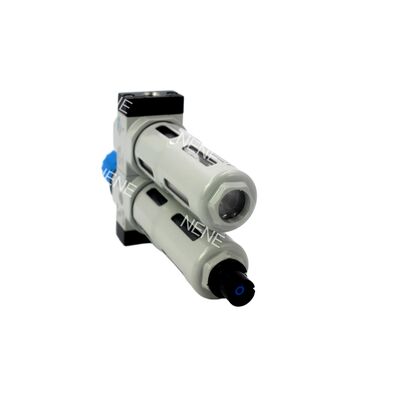

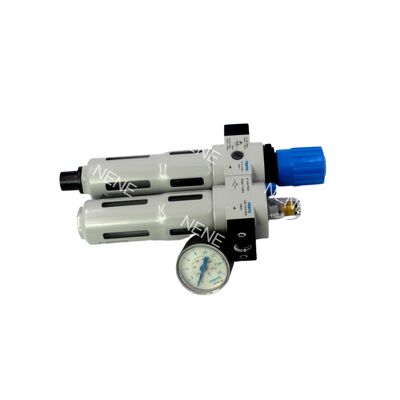

Product Description:
The FRC-D-MINI series air treatment units are compact yet high-performance modules specially designed for small to medium-sized pneumatic systems. Their MINI-sized body integrates multiple functions including air filtration, pressure regulation, and optional lubrication, making them an efficient and space-saving solution for various applications.
These units offer flexible installation options to accommodate different system requirements. The series includes different models such as manual or automatic drain versions (-A), variants with pressure gauge ports (-MPA), as well as basic configurations. This variety ensures that users can select a model tailored to their specific pneumatic system needs.
All models within the FRC-D-MINI family — including FRC-1/8-D-MINI, FRC-1/4-D-MINI, FRC-3/8-D-MINI, and their respective variants — share a uniform core structure and adhere to consistent maintenance standards. This uniformity significantly simplifies spare parts management and maintenance procedures.
The precision regulation mechanism provides stable and consistent downstream pressure, which is crucial for reliable pneumatic system operation. Additionally, the efficient filtration component effectively removes moisture and particles from the compressed air, thereby enhancing the durability and performance of connected pneumatic components.
Features:
The Compact MINI design is engineered to save installation space, making it an excellent choice for distributed air preparation systems. Its small footprint ensures efficient use of available space without compromising performance.
This product offers a modular combination system, allowing users to configure the filter, regulator, and lubricator as needed. This flexibility ensures that the setup can be customized to meet specific operational requirements.
With a high level of filtration accuracy, the system provides a standard filtration rating of 40 µm, with an optional upgrade to 5 µm. This capability effectively removes water, oil, and particulate contaminants, ensuring clean air delivery.
The pressure regulation is stable, featuring low secondary pressure fluctuation. Additionally, a locking knob is included to prevent unauthorized adjustments, ensuring consistent performance during operation.
Optional functions are available to enhance usability. The suffix “-A” indicates an auto-drain feature for hands-free operation, while the “-MPA” suffix designates an integrated pressure gauge port for convenient pressure monitoring.
Durability is ensured through the use of high-quality materials, including a polycarbonate bowl protected by a metal guard. This combination provides resistance to impact and corrosion. Furthermore, the transparent bowl design allows for easy visual inspection of fluid levels.
Technical Parameters:
| Max. Operating Pressure |
0.5 ~ 12 Bar |
| Material |
Die-cast Zinc Body, PC Bowl, RoHS Compliant |
| Port Size |
G1/8", G1/4", G3/8" |
| Filtration Rating |
40 μm |
| Operating Temperature |
-10°C ~ +60°C |
| Product Series |
FRC-D-MINI |
Applications:
Automation equipment plays a crucial role in various industries, including assembly lines, packaging machinery, and electronics assembly. These systems enhance production efficiency and consistency by automating repetitive tasks.
Pneumatic tools, such as air screwdrivers, spray guns, and cylinders, rely on the supply of clean air, which can be optionally lubricated. These tools are widely used due to their reliability and ease of maintenance.
In laboratory and testing environments, precision regulation is essential for pneumatic control systems. Accurate control ensures dependable operation and high-quality results in scientific and industrial testing.
Light manufacturing sectors, including printing, textiles, and food packaging, often utilize pneumatic equipment. In applications where contamination must be avoided, oil-free versions are employed to maintain product integrity.
Medical devices such as dental equipment and small oxygen concentrators depend on specialized pneumatic systems to protect air circuits. This ensures patient safety and device longevity by maintaining the purity of the air supply.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. To maintain peak functionality, regular maintenance and proper handling are essential.
For technical support, ensure that the FRL unit is installed according to the specified flow direction and pressure ratings. Regularly check and replace the filter element to prevent contaminants from entering your pneumatic system. Adjust the regulator knob to maintain the desired outlet pressure within the recommended range.
The lubricator should be filled with the appropriate pneumatic oil and adjusted to deliver the correct amount of lubrication to downstream components, preventing wear and extending the life of pneumatic tools and cylinders.
If performance issues arise, verify the cleanliness of the filter, the condition of the seals, and the proper operation of the regulator and lubricator. Refer to the product manual for troubleshooting steps and parts replacement guidelines.
Our technical support team is available to assist with installation guidance, troubleshooting, and any inquiries related to the operation and maintenance of your Pneumatic Filter Regulator Lubricator units to ensure maximum efficiency and reliability in your applications.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, eco-friendly cardboard box designed to protect the product from damage during transit. Inside the box, the unit is cushioned with foam inserts to prevent movement and absorb shocks. The packaging includes a user manual, installation instructions, and all necessary fittings to ensure a hassle-free setup.
Shipping: We offer reliable shipping options to ensure your Pneumatic Filter Regulator Lubricator arrives safely and on time. Products are shipped via trusted carriers with tracking provided for every order. Standard shipping typically takes 5-7 business days, with expedited options available for faster delivery. Each shipment is carefully handled and inspected before dispatch to guarantee quality and customer satisfaction.
