| Medium |
Compressed air |
| Operating Temperature |
-10 ... 50 °C, 14 ... 122 °F |
| Operating Pressure |
2 ... 10 bar, 29 ... 145 psi |
| Port Size |
G3/8 |
| Actuation |
Solenoid pilot / Air spring return |
| Coil Code |
QM/48/13J/21 |
| Valve Operation |
5/2 |
| Flow |
2600 l/min, 92 scfm |
| Power Consumption |
2 W |
| Materials - Body |
Aluminium |

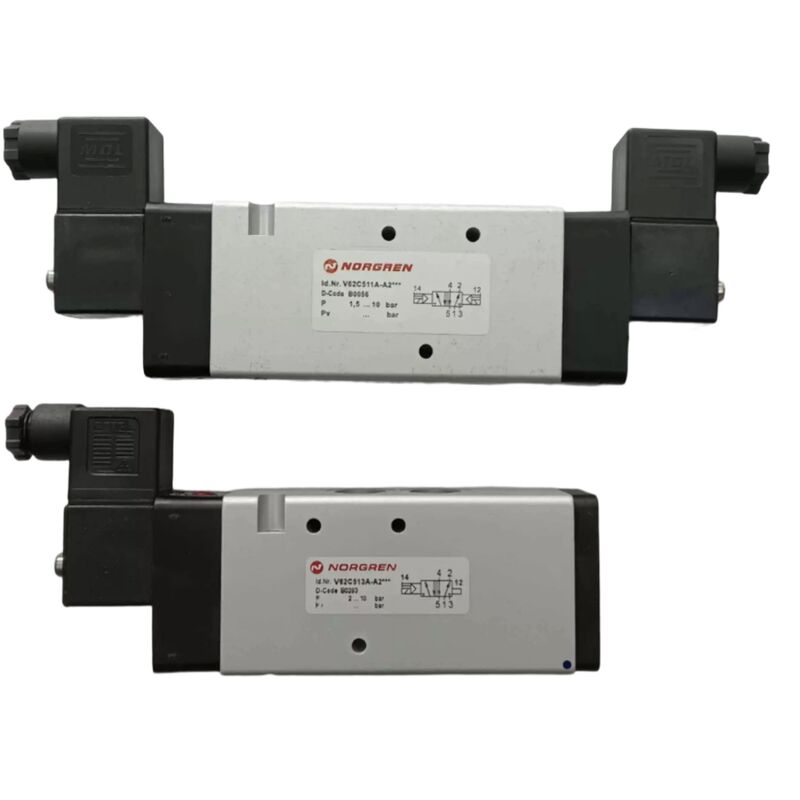

Product Description:
The product boasts a compact design that does not compromise on performance, delivering impressive flow rates. For instance, the V60 series achieves flow rates up to 750 liters per minute with a 1/8" port and 1200 liters per minute with a 1/4" port, ensuring efficient operation even in restricted spaces.
Energy efficiency is a key feature, with low-power coil options available. Certain energy-saving models consume as little as 3 to 5 watts, significantly reducing power consumption without sacrificing functionality.
Durability and longevity are guaranteed by the soft-seal spool system, which provides an extended lifecycle of over 100 million cycles on some variants. This design is largely maintenance-free, and its modular construction permits independent replacement of components, effectively lowering maintenance expenses.
Constructed from robust, corrosion-resistant aluminum, the valve body ensures reliability and toughness. It also features standard IP65 protection, offering resistance against dust and water ingress, thereby enhancing durability in various environments.
The design offers flexible configuration options, supporting multiple mounting methods including sub-base, in-line, and NAMUR. Additionally, it accommodates a variety of voltage options, allowing for seamless integration into different systems.
Technical Specifications
- Operating Pressure: 1.5 to 10 bar
- Flow Range: 480 to 2600 liters per minute
- Ambient Temperature: -20 °C to +60 °C
- Media: Compressed air filtered to 40–50 micrometers
Applications:
Industrial automation and mechanical control play a crucial role in various sectors such as packaging machinery, assembly lines, material handling systems, machine tool fixtures, and textile machinery. One common application involves the operation of double-acting cylinders, which are essential for efficient mechanical movement in these industries.
In the realm of process control systems, these components are seamlessly integrated into automation control frameworks to regulate the direction of fluid media flow. This integration ensures highly accurate and reliable mechanical movements, which are vital for maintaining optimal performance in complex automated processes.
Beyond general industrial uses, these systems are also designed for specialized applications including construction, medical devices, robotic technologies, and refrigeration and air conditioning equipment. Featuring a NAMUR interface, they provide easy connectivity to actuators, enhancing functionality and adaptability. Additionally, explosion-proof variants are available, making them suitable for use in potentially hazardous environments where safety is paramount.
Support and Services:
Norgren Solenoid Valves are precision-engineered components designed to provide reliable and efficient control of fluid and air flow in various industrial applications. Our solenoid valves are rigorously tested to ensure high performance, durability, and compliance with international standards.
For technical support, Norgren offers comprehensive assistance including installation guidance, troubleshooting, and maintenance advice to optimize the operation and lifespan of your solenoid valves. Our expert team is committed to helping you select the right valve for your application and resolving any technical issues promptly.
Norgren also provides tailored services such as custom configurations, repair services, and replacement parts to meet your specific requirements. We ensure that all services maintain the quality and performance standards expected from Norgren products.
To maximize the efficiency and reliability of your solenoid valves, it is recommended to follow the installation and maintenance instructions provided in the product manual. Regular inspection and cleaning will help prevent common issues such as valve sticking or leakage.
Norgren continues to innovate and improve our solenoid valve range to support evolving industry needs, ensuring our customers receive the best in technology and service.
Packing and Shipping:
The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is enclosed in a sturdy, custom-fitted box with cushioning materials to prevent damage from shocks and vibrations.
For shipping, the product is securely sealed and labeled with handling instructions to maintain product integrity. We offer multiple shipping options to suit your delivery needs, ensuring timely and safe arrival of your Norgren Solenoid Valve.
All packages include documentation such as the product manual and warranty information. In case of any damage during shipping, please contact our customer service immediately for assistance.
