CA40MM GOYEN Submerged Pulse Valve 1.5-inch Suitable Diaphragm K4000 K4007

Product Details:

Brand Name:	GOYEN
Certification:	CE
Model Number:	CA40MM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	5000 Pieces/1Month

Contact Now

Detailed Product Description

Temperature:	Pressure	Valve Body Material:	Aluminium (diecast)
Coil Voltage:	24VDC, 220VAC	Application:	Cartridge Filters, Envelope Filters, Ceramic Filters, Sintered Metal Fiber Filters
Port Size:	G4	Workinｇ Pressure Range:	0.3 To 0.8MPa
Highlight:	1.5-inch submerged pulse valve , Goyen diaphragm pulse jet valve , K4000 K4007 compatible pulse valve

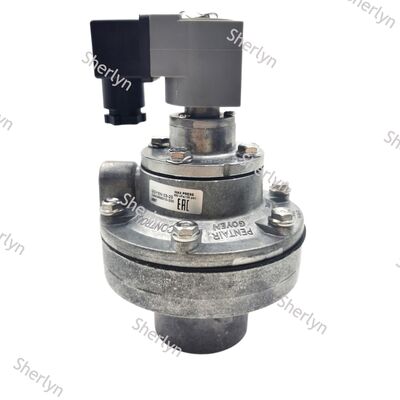

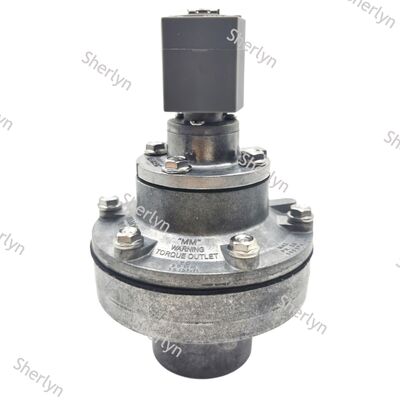

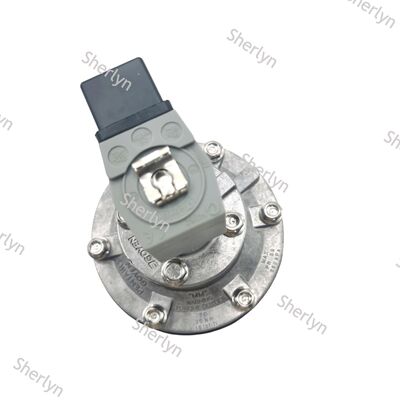

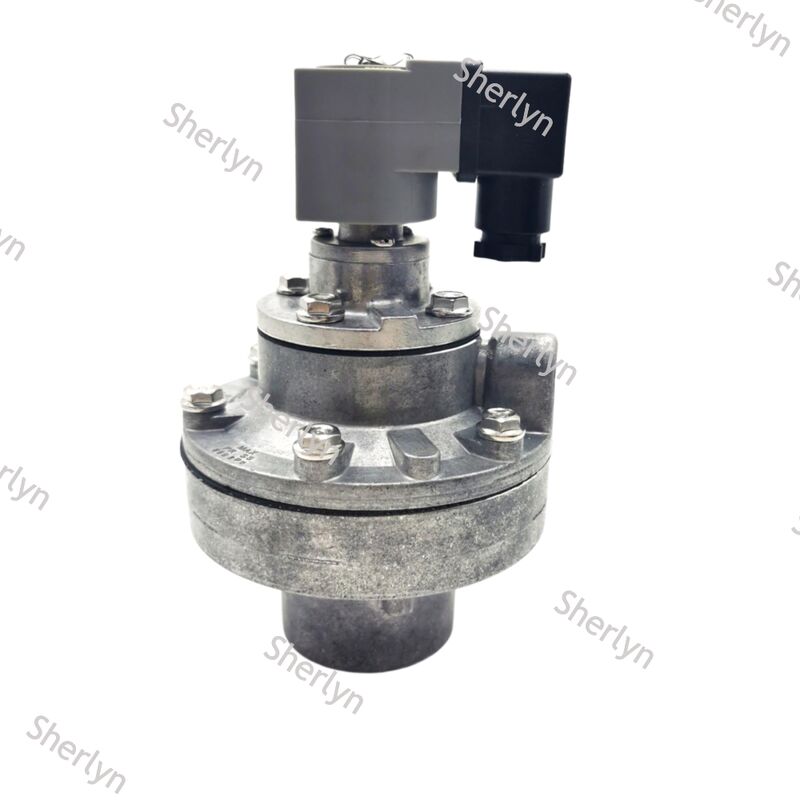

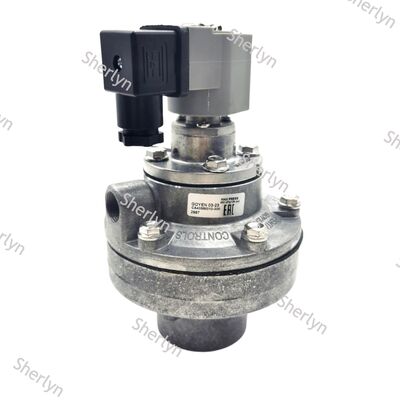

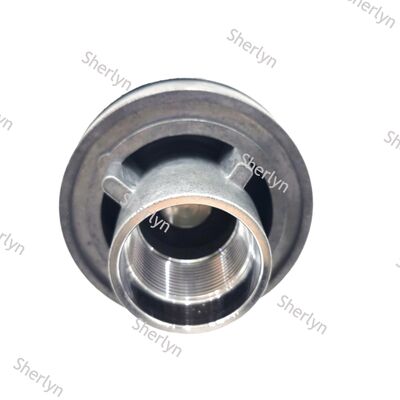

CA40MM GOYEN Submerged Pulse Valve 1.5-inch Suitable Diaphragm K4000 K4007

Product Overview

Efficient Jet Cleaning

Right-angle structure ensures powerful jet force with ultra-fast response time of ≤ 0.05 seconds for high-frequency pulse dust cleaning.

Durable Construction

Standard NBR diaphragm with FKM and EPDM options available. Service cycle exceeds one million operations with excellent fatigue and aging resistance.

Premium Materials

Die-cast aluminum alloy valve body, stainless steel springs and fasteners. Zero air leakage even during prolonged use.

Wide Operating Range

Working pressure: 0.3-0.8 MPa (highland variant: 0.2-0.6 MPa). Temperature range: -20℃ to +80℃ (optional high-temperature diaphragms up to 120℃).

Multiple Specifications: Port sizes from G1/2" to G3" (models CA15T to CA76T) with thread, flange, and integrated mounting types. IP65 rated for harsh environments.

Voltage Options: DC24V, AC220V, and other specifications compatible with most mainstream pulse controllers.

Applications

Bag Dust Collector: Used in steel manufacturing, cement production, metallurgy, mining, and waste incineration. Enhances dust removal efficiency with filter bag pulse cleaning mechanism.
Industrial Dust Control: Designed for woodworking, food processing, chemicals, and feed powder manufacturing. Manages dust emissions to maintain workshop cleanliness and worker safety.
Flue Gas Treatment System: Works with filter cartridges and ceramic filters in power plants, desulfurization and denitrification equipment. Purifies high-temperature flue gases containing dust particles.
Pneumatic Conveying & Air System: Serves as compressed air switch in powder conveying pipelines and dust removal equipment. Enables pulsed airflow control for optimized dust cleaning.
High-altitude Special Environment: Highland-type models adapt to low air pressure environments for reliable performance in elevated dust removal projects.

Support and Services

Our Pulse Jet Valves are designed for reliable performance and long service life in dust collector and pneumatic conveying systems.

Detailed product documentation including installation guides, operation manuals, and maintenance instructions
Comprehensive troubleshooting assistance for quick issue resolution
Replacement parts and repair services to minimize downtime
Expert technical support for specific application needs
Regular maintenance services with inspection and cleaning recommendations

Packing and Shipping

Our Pulse Jet Valves are securely packaged using high-quality materials to ensure perfect condition upon arrival.
