Product Description:

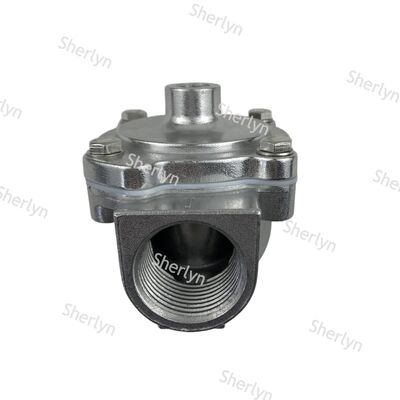

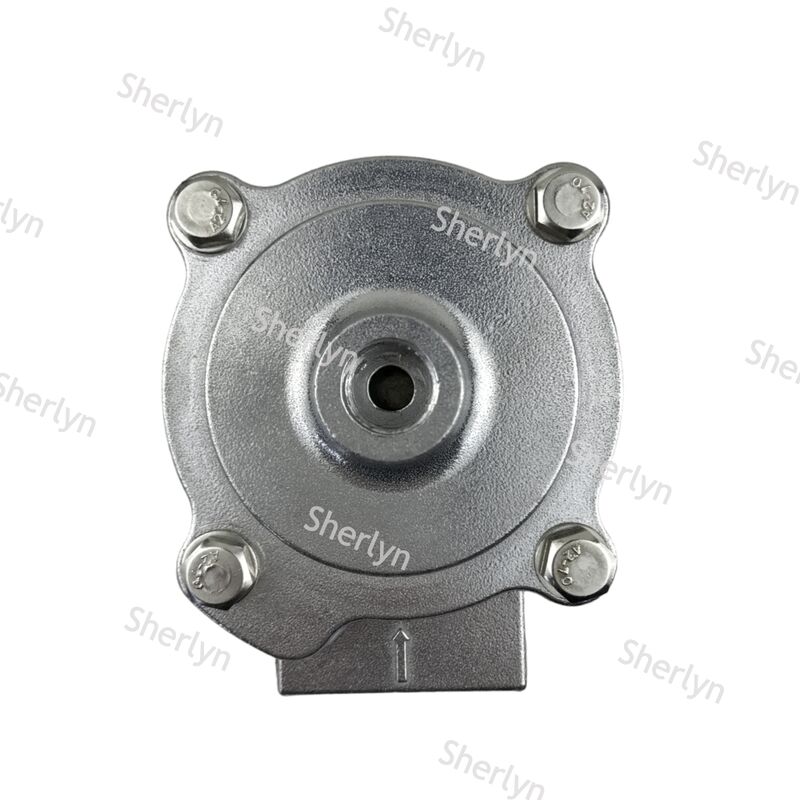

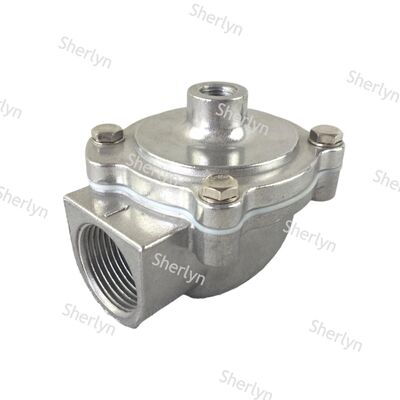

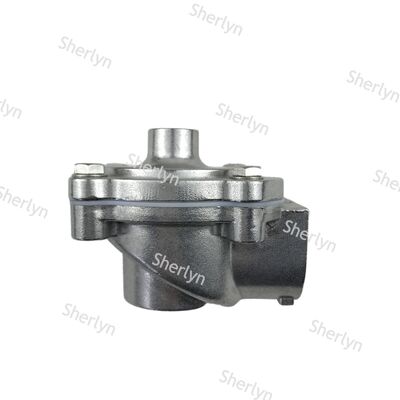

ASCO pulse valves, also referred to as ASCO diaphragm pulse valves or ASCO solenoid pulse valves, are designed by specifically for reverse-jet dust collector systems. These valves are engineered to provide exceptionally fast pulsing, elevated peak pressure, and an extended operational lifespan.
One of the key features of ASCO pulse valves is their ultra-fast open and close response time. This rapid valve actuation allows for efficient cleaning of filter bags during each pulse cycle, ensuring optimal system performance.
Additionally, these valves deliver up to 14% higher peak pressure compared to traditional valves. This increased pressure effectively breaks down accumulated dust deposits, enhancing the overall cleaning efficiency of the dust collector system.
Moreover, ASCO pulse valves contribute to significant compressed air savings, reducing air consumption by as much as 15% without sacrificing cleaning effectiveness. This makes them a cost-effective and environmentally friendly solution for maintaining dust collector systems.
Applications:
Steel & Metallurgy
In the steel and metallurgy industry, the focus is on blast furnace gas dust collection. This involves managing dust concentrations that are exceptionally high, often exceeding 200 grams per cubic meter. Effective dust collection systems are essential to maintain safe and efficient operations.
Cement & Building Materials
The cement and building materials sector utilizes kiln exhaust filtration systems equipped with long bag filters, typically over 8 meters in length. These systems are designed to operate continuously, ensuring consistent dust removal and maintaining environmental compliance throughout production.
Power Plants
Power plants implement flue gas cleaning technologies to reduce emissions and handle fly ash effectively. These low-emission projects contribute to minimizing the environmental impact of power generation by controlling particulate matter and other pollutants released into the atmosphere.
Chemical & Pharmaceutical
Within chemical and pharmaceutical industries, explosion-proof dust collectors are critical. These specialized models are engineered to operate safely in environments where combustible dust and gases are present, thus preventing hazards associated with explosions and ensuring workplace safety.
Food & Grain Processing
Food and grain processing facilities emphasize hygienic filtration solutions to control dust during milling and conveying operations. Maintaining cleanliness and dust control is vital to preserve product quality and meet health and safety .
| Technical Data |
| threaded pipe connection |
| Port Size |
Pilot Size |
Orifice Size
(mm) |
Kv
(m³/h) |
Kv
(l/min) |
Operating Pressure Differential
(bar) |
Model Number |
| G3/4" |
G1/8" |
24 |
14 |
233 |
0.35 to 8.5 |
G353A041 |
| G1" |
G1/8" |
27 |
17 |
283 |
0.35 to 8.5 |
G353A042 |
| G1-1/2" |
G1/4" |
52 |
46 |
768 |
0.35 to 8.5 |
G353A045
(Single Stage) |
| G1-1/2" |
G1/8" |
50 |
46 |
768 |
0.35 to 8.5 |
G353A046
(Double Stage) |
| G2" |
G1/4" |
66 |
77 |
1290 |
0.35 to 8.5 |
G3530A48 |
| G2-1/2" |
G1/4" |
66 |
92 |
1540 |
0.35 to 8.5 |
G353A049 |
Support and Services:
Our Pulse Jet Valves are designed to deliver reliable and efficient performance in dust collector systems. For technical support, please ensure that you have the model number and specifications of your valve ready when seeking assistance. Our support team can provide guidance on installation, troubleshooting, maintenance, and replacement parts to maximize the lifespan and efficiency of your pulse jet valves. We recommend regular inspection and cleaning to prevent clogging and ensure optimal operation. For service requests, technical inquiries, or to obtain product manuals and datasheets, please refer to the resources available on our website or contact our support department directly.
Packing and Shipping:
Our Pulse Jet Valves are securely packaged to ensure they arrive in perfect condition. Each valve is carefully wrapped with protective materials and placed in a sturdy, custom-designed box to prevent any damage during transit. We use high-quality packaging materials that are environmentally friendly and provide excellent cushioning.
For shipping, we offer reliable and fast delivery options worldwide. All shipments are tracked and insured to guarantee safe and timely arrival. We partner with trusted carriers to provide efficient logistics solutions, ensuring your Pulse Jet Valves reach you on schedule and in excellent condition.
