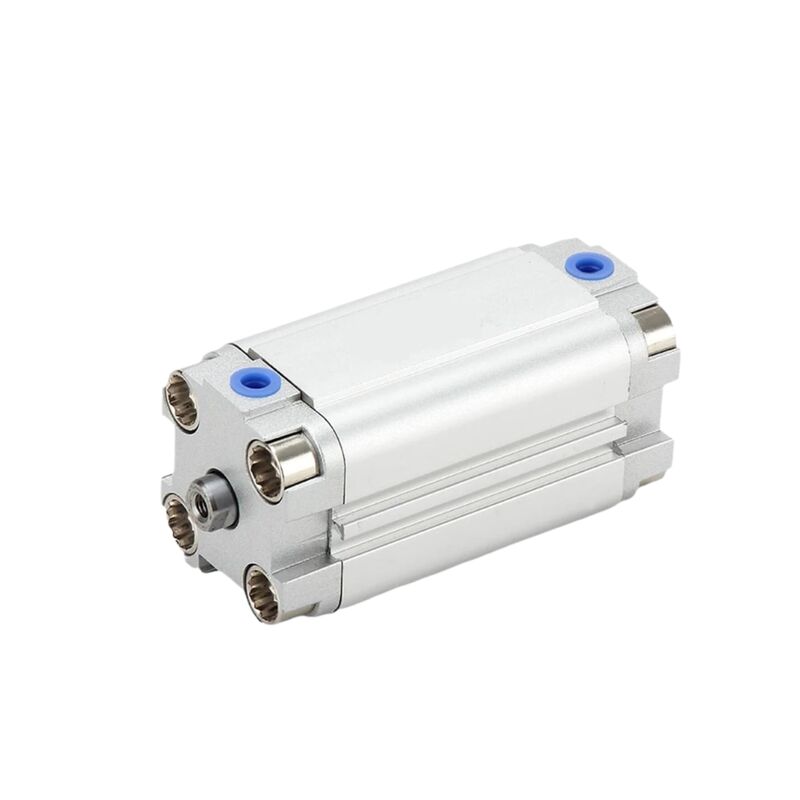

12mm Bore 20mm Stroke Festo ADVU-12-20-A-P-A 156589 External Thread Double-Acting Air Cylinder M5 Port Magnetic Piston ISO 6432 Compact

Product Description:

The Festo ADVU-12 is a compact pneumatic cylinder designed with a double-acting mechanism and a 12 mm bore diameter. It features an integrated magnetic piston that enables precise position sensing, ensuring accurate control in various automation processes.

Equipped with elastic cushioning rings at both ends, known as P-type cushioning, the cylinder provides smooth operation and helps to reduce impact forces. This design enhances the durability and reliability of the cylinder when used in repetitive motion applications.

Available stroke lengths range from 5 mm up to 40 mm, offering flexibility for different installation requirements. Customers can choose between piston rods with either internal threads (‑P‑A) or external threads (‑A‑P‑A), depending on the specific mounting needs.

With an operating pressure range between 1.2 and 10 bar, the ADVU-12 is well-suited for compact automation systems where space is limited but performance and precise position feedback are critical.

Features:

Technical Parameters:

Applications:

Automated assembly lines are equipped with compact stations designed for clamping, positioning, sorting, stopping, and ejecting workpieces efficiently. These systems enhance productivity by streamlining the handling of materials within tight spaces.

In the field of electronics and semiconductor manufacturing, automation plays a crucial role in precise pick-and-place operations, integrated circuit handling, PCB depaneling, and the assembly of delicate components. These processes demand accuracy and careful manipulation to maintain product quality.

Packaging and filling machinery utilize automated movements such as carton pushing, sealing presses, and valve actuation. These actions often occur within confined areas where space optimization is essential for smooth operation.

The medical device and laboratory automation sectors benefit from smooth, low-force motions tailored for diagnostic equipment, sample transportation, and liquid handling tasks. Automation in these areas ensures reliability and gentle handling of sensitive materials.

Printing and textile machinery rely on automation for paper positioning, cutting press operation, and yarn clamping, even in challenging environments that may be oily or covered with ink. These automated functions help maintain precision and consistency throughout the production process.

Robot end effectors often incorporate compact pneumatic gripper drives designed for collaborative robots and pick-and-place units. These end effectors enable agile, precise handling suitable for a wide range of industrial applications.

Support and Services:

Our Piston Pneumatic Cylinder is designed for reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions.

If you require assistance with troubleshooting, replacement parts, or customization options, our technical support team is ready to help you ensure optimal functionality and longevity of your pneumatic cylinders.

We also offer comprehensive maintenance services to keep your pneumatic cylinders operating at peak performance, including inspection, repair, and preventive maintenance programs tailored to your specific needs.

For warranty information and service policies related to the Piston Pneumatic Cylinder, please consult the warranty documentation provided with the product or visit our official website for more details.

Your satisfaction and the seamless operation of your pneumatic systems are our top priorities. Please ensure to follow all safety guidelines when handling and servicing the Piston Pneumatic Cylinder to prevent injury and equipment damage.
