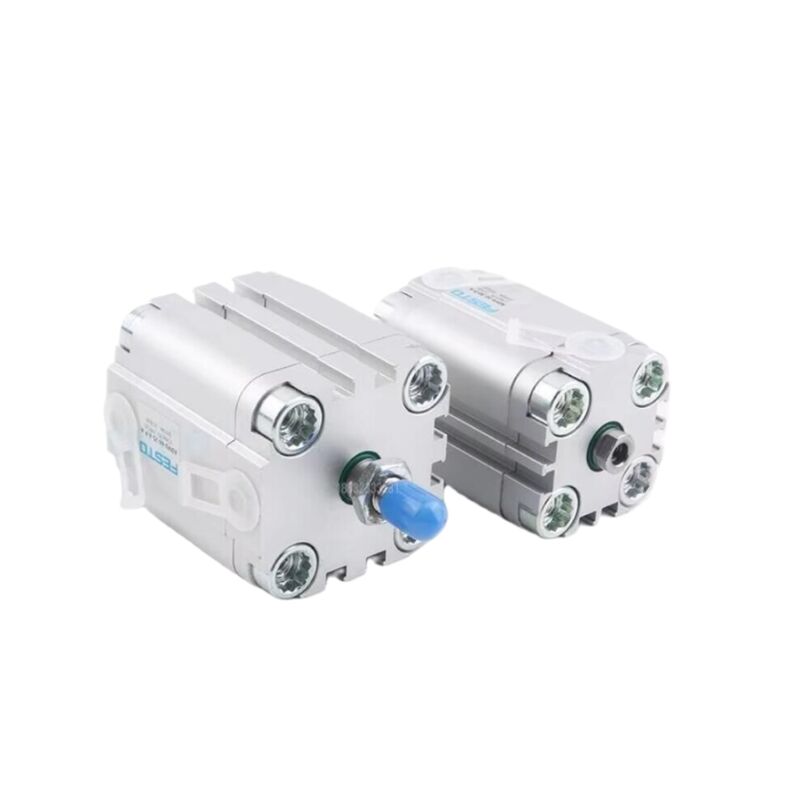

25mm Stroke Compact Air Cylinder 12mm Bore Festo ADVU-12-25-A-P-A 156590 External Thread M5 Port Double-Acting Magnetic Piston

Product Description:

The Festo ADVU-12 is a compact pneumatic cylinder featuring a 12 mm bore size. This double-acting cylinder is designed to deliver efficient performance in a small footprint, making it suitable for tight installation spaces.

Equipped with an integrated magnetic piston, the ADVU-12 allows for precise position sensing, enhancing control and monitoring capabilities. Additionally, the cylinder includes elastic cushioning rings at both ends, known as P-type cushioning, which help to absorb shocks and extend the service life of the device.

This model is available with standard stroke lengths ranging from 5 mm up to 40 mm. Customers can choose between piston rods with internal threads (designated as ‑P‑A) or external threads (designated as ‑A‑P‑A) to suit different mounting requirements.

The operating pressure of the Festo ADVU-12 spans from 1.2 to 10 bar, providing reliable functionality under various pneumatic conditions. Its compact design combined with dependable position feedback makes it an ideal choice for automation applications where saving space is crucial.

Features:

Technical Parameters:

Applications:

Automated assembly lines benefit greatly from compact stations that manage tasks such as clamping, positioning, sorting, stopping, and ejecting workpieces efficiently. These streamlined processes enhance productivity and accuracy within manufacturing environments.

In the electronics and semiconductor sectors, precision is paramount. Applications include meticulous pick-and-place operations, handling of integrated circuits, PCB depaneling, and the assembly of delicate components, all of which demand high accuracy and careful manipulation.

Packaging and filling machinery often operate within confined spaces, performing functions like carton pushing, sealing presses, and valve actuation. These tasks require reliable mechanisms that can function effectively under spatial constraints.

The medical devices and laboratory automation fields rely on smooth, low-force motions tailored for diagnostic equipment, sample transportation, and liquid handling. Such gentle operations ensure the integrity and safety of sensitive biological materials.

Printing and textile machinery face challenging conditions involving oily or inky environments. Key operations include precise paper positioning, cutting presses, and yarn clamping, all of which demand robust and reliable performance under such circumstances.

Robot end effectors incorporate compact pneumatic gripper drives that are essential for collaborative robots and pick-and-place units. These components enable flexible and efficient handling capabilities in automated robotics.

Support and Services:

Our Piston Pneumatic Cylinders are designed for reliable and efficient performance in a variety of industrial applications. For technical support, please ensure that you have the model number, specifications, and operating conditions of your cylinder ready when seeking assistance.

We offer comprehensive troubleshooting guides to help diagnose and resolve common issues such as air leakage, reduced cylinder speed, and inconsistent movement. Regular maintenance, including lubrication and inspection of seals, can significantly extend the life of your pneumatic cylinder.

Replacement parts and accessories are available to keep your system running smoothly. Our technical support team can provide guidance on installation, integration with existing systems, and customization options to meet specific application requirements.

For optimal performance, always use clean, dry compressed air and adhere to the recommended pressure ranges specified in the product manual. Avoid exposing the cylinder to corrosive environments unless it is specifically designed for such conditions.

We also provide training and consultation services to help your team understand the best practices for using and maintaining Piston Pneumatic Cylinders, ensuring maximum uptime and productivity.

Packing and Shipping:

Product Packaging: Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static and anti-corrosion material to prevent any damage or rust. It is then placed in a custom-fitted foam insert within a sturdy cardboard box to minimize movement and impact. The outer packaging is labeled clearly with product details, handling instructions, and shipping information to ensure safe and accurate delivery.

Shipping: We offer reliable and timely shipping services for the Piston Pneumatic Cylinder worldwide. Products are dispatched within 1-3 business days after order confirmation. Shipping options include standard, expedited, and express delivery to meet various customer needs. Each shipment is tracked with a unique tracking number, allowing customers to monitor their order status in real time. We also provide insurance options to safeguard against loss or damage during transportation.
