Product Description:

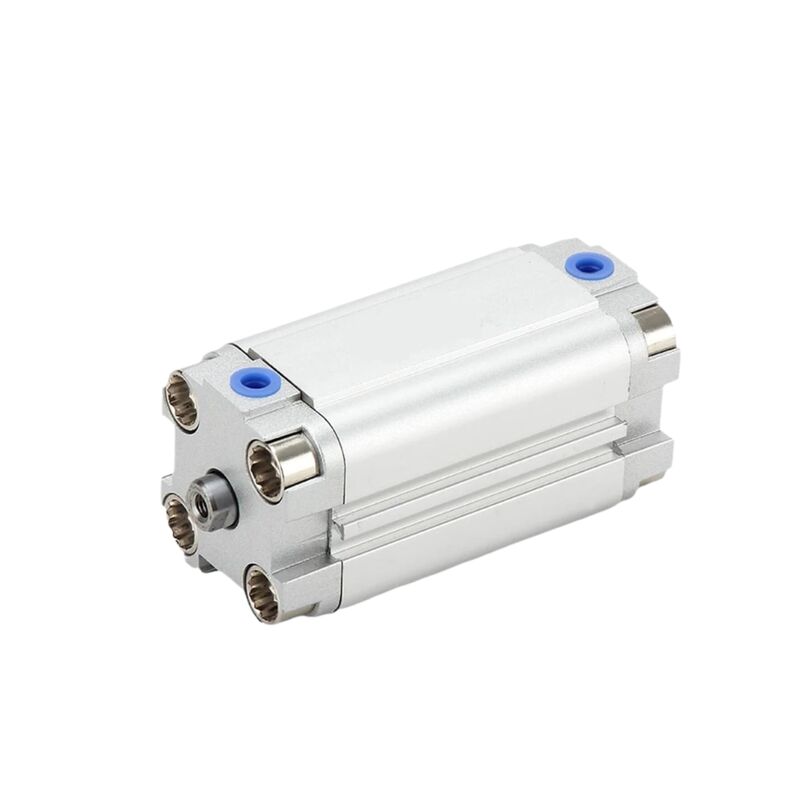

The Festo ADVU-12 is a compact pneumatic cylinder designed for double-acting operation. It features a 12 mm bore and includes an integrated magnetic piston that allows for precise position sensing. This makes it suitable for applications where accurate feedback on the piston’s location is essential.
This cylinder is equipped with elastic cushioning rings on both ends, referred to as P-type cushioning. These cushioning rings help to absorb impact at the end of the piston stroke, enhancing the durability and smoothness of the cylinder’s operation.
The ADVU-12 is available with standard stroke lengths ranging from 5 mm to 40 mm. Customers can choose between piston rods with either an internal thread (‑P‑A) or an external thread (‑A‑P‑A), providing flexibility for different mounting requirements.
Operating within a pressure range of 1.2 to 10 bar, this cylinder is well-suited for space-saving automation setups that demand reliable and consistent position feedback. Its compact design combined with integrated sensing capabilities makes it an ideal choice for industrial automation tasks.
Features:
Featuring an ultra-compact design, this product requires up to 50% less installation space compared to ISO 15552 cylinders. This makes it an excellent choice for applications with limited machine layout space.
It operates with a double-acting mechanism, delivering force during both the forward and return strokes. This ensures smooth, consistent, and controllable motion throughout its cycle.
The integrated magnetic piston allows for non-contact position sensing by using proximity sensors. Additionally, these sensors can be replaced or changed without the need for any mechanical adjustments, enhancing convenience and efficiency.
Equipped with elastic cushioning of the P-type, it effectively reduces impact energy at end positions. This results in minimized vibration and noise, contributing to a quieter and smoother operation.
Constructed from robust and corrosion-resistant materials, the cylinder features an anodised aluminium barrel and end caps, a stainless steel piston rod, and NBR/TPE-U seals. It offers a corrosion resistance level of CRC 2, making it suitable for demanding industrial environments.
The design includes flexible mounting options, with through-holes on the barrel and a wide variety of mounting accessories available. This versatility allows for easy installation in various configurations.
To accommodate different load attachments, there are two piston rod thread options to choose from: an internal thread (‑P‑A) or an external thread (‑A‑P‑A), providing tailored solutions for your specific needs.
Technical Parameters:
| Parameter |
Value |
| Brand |
Festo |
| Series |
ADVU |
| Bore |
12 mm |
| Operation |
Double‑acting |
| Cushioning type |
P: elastic cushioning rings/pads at both ends |
| Magnetic piston |
Yes (integrated) |
| Operating pressure |
1.2 ... 10 bar |
| Medium |
Compressed air to ISO 8573‑1:2010 [7:4:4] (lubricated or unlubricated) |
| Ambient temperature |
-20 ... +80 °C |
| Pneumatic connection |
M5 |
| Corrosion resistance class |
CRC 2 (moderate corrosion resistance) |
| Theoretical force at 6 bar (advance) |
68 N |
| Theoretical force at 6 bar (return) |
51 N |
| End position impact energy |
0.07 J |
| Moving mass at 0 mm stroke |
8 g |
| Additional moving mass per 10 mm stroke |
2 g |
| Basic weight at 0 mm stroke |
87 g |
| Additional weight per 10 mm stroke |
15 g |
| Barrel material |
Wrought aluminium alloy |
| End cap material |
Wrought aluminium alloy |
| Piston rod material |
High‑alloy stainless steel |
| Dynamic seal material |
NBR / TPE‑U(PU) |
| Standards |
CETOP RP 52 P, ISO 6432 (round design) |
Applications:
Automated assembly lines are equipped with compact stations designed for various tasks such as clamping, positioning, sorting, stopping, and ejecting workpieces. These integrated systems improve efficiency and precision in manufacturing processes.
In the field of electronics and semiconductor manufacturing, automation plays a crucial role through precise operations like pick-and-place, handling integrated circuits (ICs), depaneling printed circuit boards (PCBs), and assembling delicate components with great care.
Packaging and filling machinery benefit from compact mechanisms that enable carton pushing, sealing presses, and valve actuation, all functioning effectively within restricted spaces to optimize packaging workflows.
The medical devices and laboratory automation sector requires smooth and low-force motion control. This is essential for diagnostic equipment, the transport of samples, and efficient liquid handling, ensuring reliability and safety in medical processes.
Printing and textile machines often operate in challenging environments involving oil or ink. Automated systems assist by accurately positioning paper, controlling cutting presses, and clamping yarn, thereby maintaining performance under such demanding conditions.
Robot end effectors utilize compact pneumatic gripper drives which are ideal for collaborative robots and pick-and-place units. These drives deliver reliable gripping capabilities while maintaining a small footprint suitable for various robotic applications.
