Product Description:

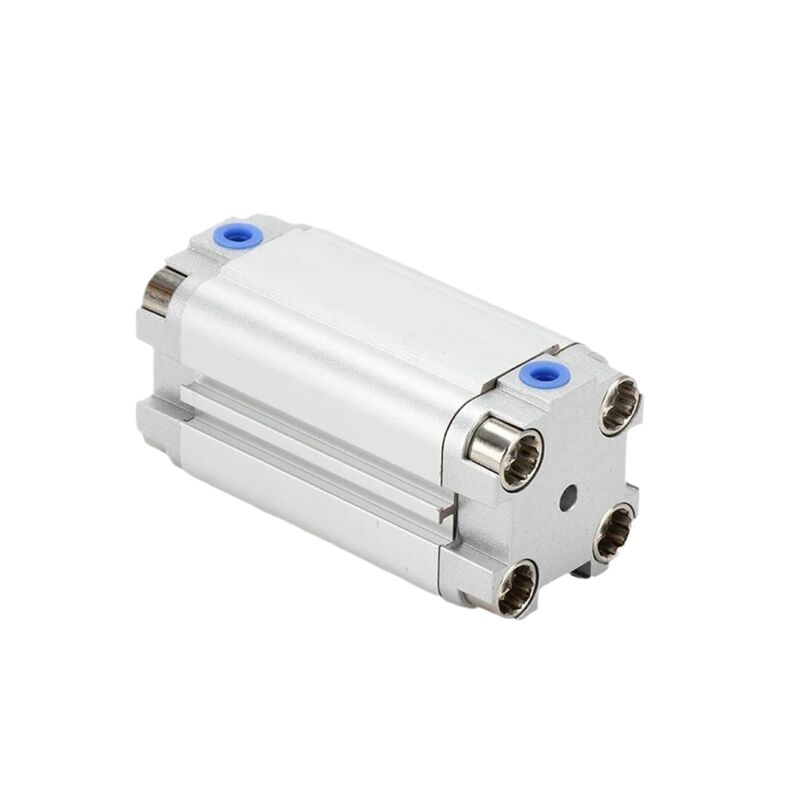

The Festo ADVU-12 is a compact pneumatic cylinder designed with a 12 mm bore diameter. It features a double-acting mechanism that allows for efficient and precise movement in automation systems.
This cylinder is equipped with an integrated magnetic piston, which enables accurate position sensing throughout its operation. Additionally, it includes elastic cushioning rings at both ends, known as P-type cushioning, to reduce impact and noise during piston strokes.
Available with standard stroke lengths ranging from 5 mm to 40 mm, the ADVU-12 offers flexibility to suit various application needs. Customers can choose between different piston rod thread options, including internal thread (‑P‑A) and external thread (‑A‑P‑A), depending on their installation requirements.
Designed to operate within a pressure range of 1.2 to 10 bar, this pneumatic cylinder is well-suited for space-saving automation applications that demand reliable and consistent position feedback.
Features:
The ultra-compact design of this cylinder requires up to 50% less installation space compared to standard ISO 15552 cylinders. This makes it an excellent choice for applications where machine layouts are tight and space is limited.
Featuring double-acting operation, the cylinder delivers force during both the forward and return strokes. This ensures smooth, consistent, and controllable motion throughout its entire cycle.
It comes equipped with an integrated magnetic piston, which enables non-contact position sensing using proximity sensors. A notable advantage is that these sensors can be replaced or adjusted without any mechanical modifications.
The elastic cushioning, specifically the P-type, effectively reduces impact energy at the cylinder's end positions. This feature minimizes vibration and noise, enhancing the overall performance and longevity of the equipment.
Constructed from robust and corrosion-resistant materials, the cylinder includes an anodised aluminium barrel and end caps, a stainless steel piston rod, and seals made of NBR and TPE-U. It meets corrosion resistance level CRC 2, making it suitable for demanding industrial environments.
The cylinder offers flexible mounting options through through-holes located on the barrel, complemented by a variety of mounting accessories. This versatility allows for easy integration into diverse setups.
Additionally, there are two piston rod thread options available: an internal thread (-P-A) and an external thread (-A-P-A). These choices enable users to select the most appropriate configuration to match different load attachments.
Technical Parameters:
| Parameter |
Value |
| Brand |
Festo |
| Series |
ADVU |
| Bore |
12 mm |
| Operation |
Double‑acting |
| Cushioning type |
P: elastic cushioning rings/pads at both ends |
| Magnetic piston |
Yes (integrated) |
| Operating pressure |
1.2 ... 10 bar |
| Medium |
Compressed air to ISO 8573‑1:2010 [7:4:4] (lubricated or unlubricated) |
| Ambient temperature |
-20 ... +80 °C |
| Pneumatic connection |
M5 |
| Corrosion resistance class |
CRC 2 (moderate corrosion resistance) |
| Theoretical force at 6 bar (advance) |
68 N |
| Theoretical force at 6 bar (return) |
51 N |
| End position impact energy |
0.07 J |
| Moving mass at 0 mm stroke |
8 g |
| Additional moving mass per 10 mm stroke |
2 g |
| Basic weight at 0 mm stroke |
87 g |
| Additional weight per 10 mm stroke |
15 g |
| Barrel material |
Wrought aluminium alloy |
| End cap material |
Wrought aluminium alloy |
| Piston rod material |
High‑alloy stainless steel |
| Dynamic seal material |
NBR / TPE‑U(PU) |
| Standards |
CETOP RP 52 P, ISO 6432 (round design) |
Applications:
Automated assembly lines benefit greatly from compact stations that efficiently handle the clamping, positioning, sorting, stopping, and ejection of workpieces. These processes are streamlined to maximize productivity while maintaining precision in manufacturing workflows.
In the field of electronics and semiconductor manufacturing, pneumatic systems provide highly accurate pick-and-place capabilities. They are essential for handling integrated circuits (ICs), depaneling printed circuit boards (PCBs), and assembling delicate components with utmost care.
Packaging and filling machinery rely on pneumatic technology to perform tasks such as pushing cartons, operating sealing presses, and actuating valves, even in confined and tight spaces. This ensures that packaging processes are both reliable and efficient.
Within the medical devices and laboratory automation sectors, smooth and low-force pneumatic motion is crucial. These systems facilitate diagnostic equipment functions, sample transportation, and liquid handling with gentleness and precision to maintain the integrity of sensitive materials.
Printing and textile machines utilize pneumatics for precise paper positioning, operating cutting presses, and clamping yarns, even in environments contaminated with oil or ink. This robustness ensures consistent performance despite challenging conditions.
For robotic applications, pneumatic grippers serve as compact end effectors. These drives are specially designed for collaborative robots and pick-and-place units, providing reliable and efficient gripping in automated operations.
