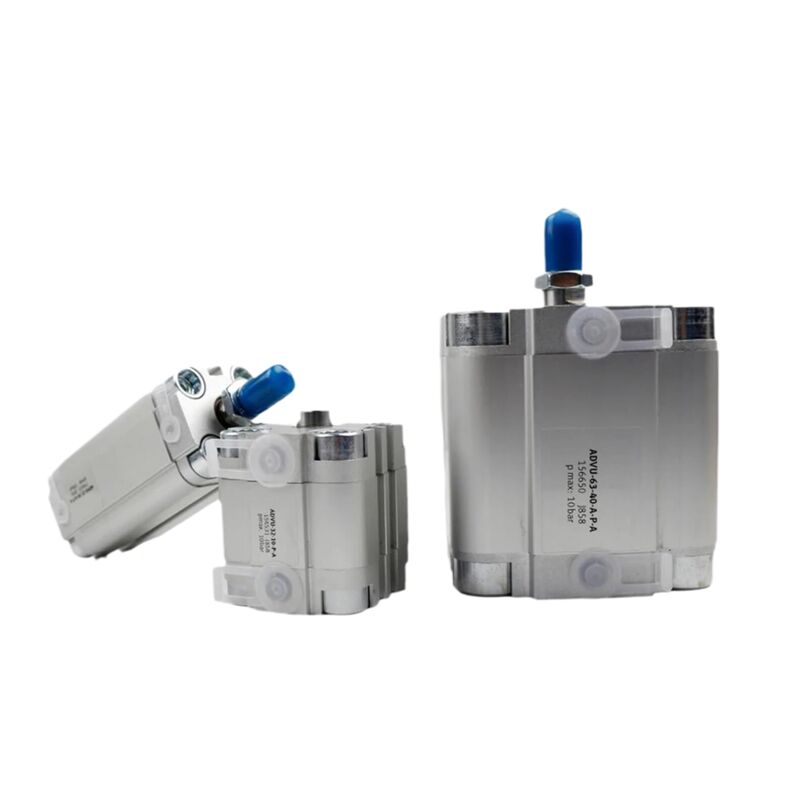

156587 Festo ADVU-12-10-A-P-A External Thread Pneumatic Cylinder 12mm Bore x 10mm Stroke M5 Port Double-Acting Magnetic Ring

Product Description:

The Festo ADVU-12 is a compact pneumatic cylinder designed with a double-acting mechanism and a bore size of 12 mm. It features an integrated magnetic piston, which allows for accurate position sensing during operation.

This cylinder is equipped with elastic cushioning rings at both ends, known as P-type cushioning, to ensure smooth and controlled movement. It comes in standard stroke lengths ranging from 5 mm up to 40 mm to suit various application needs.

Clients can choose between different piston rod thread options, including an internal thread (designated as ‑P‑A) or an external thread (marked as ‑A‑P‑A). The operating pressure for the ADVU-12 spans from 1.2 bar to 10 bar, making it suitable for a range of pneumatic systems.

Its compact design and reliable position feedback make the Festo ADVU-12 ideal for automation tasks where space is limited but precise control is essential.

Features:

The design is ultra-compact, requiring up to 50% less installation space compared to ISO 15552 cylinders. This makes it an excellent choice for machines with limited space and tight layouts.

Featuring double-acting operation, the cylinder delivers driving force during both the forward and return strokes. This ensures smooth, consistent, and controllable motion throughout its use.

An integrated magnetic piston allows for non-contact position sensing via proximity sensors. This design enables sensor replacement without the need for any mechanical adjustments.

The elastic cushioning, designated as P-type, effectively reduces impact energy at the end positions. This minimizes vibration and noise, contributing to quieter machine operation.

Constructed from robust and corrosion-resistant materials, the cylinder includes an anodised aluminium barrel and end caps, a stainless steel piston rod, and NBR/TPE-U seals. The corrosion resistance level is rated CRC 2, suitable for demanding industrial environments.

Flexible mounting options are available, with through-holes on the barrel as well as a variety of mounting accessories. This versatility facilitates easy and adaptable installation in various setups.

Users can select between two piston rod thread options to accommodate different load attachments: an internal thread (-P-A) or an external thread (-A-P-A).

Technical Parameters:

Applications:

Automated assembly lines utilize compact stations to efficiently perform tasks such as clamping, positioning, sorting, stopping, and ejecting workpieces. These streamlined processes help enhance production speed and accuracy in manufacturing environments.

In the field of electronics and semiconductor manufacturing, automation plays a crucial role in precise pick-and-place operations, integrated circuit handling, PCB depaneling, and the assembly of delicate components. This precision is essential to maintain the integrity of sensitive electronic parts.

Packaging and filling machinery benefit from automation in actions like carton pushing, sealing press operations, and valve actuation, especially in confined spaces where precise control is necessary to ensure proper packaging quality.

The medical devices and laboratory automation sector relies on smooth, low-force motion systems for diagnostic equipment, sample transportation, and liquid handling tasks. These gentle movements are vital for maintaining the accuracy and safety of medical procedures.

In printing and textile machinery, automation supports functions such as paper positioning, cutting press operations, and yarn clamping, even within oily or inky environments. This helps maintain consistent quality despite challenging working conditions.

Robot end effectors are designed with compact pneumatic gripper drives, which are ideal for collaborative robots and various pick-and-place units. These compact drives enable efficient and flexible handling of objects in robotic automation.
