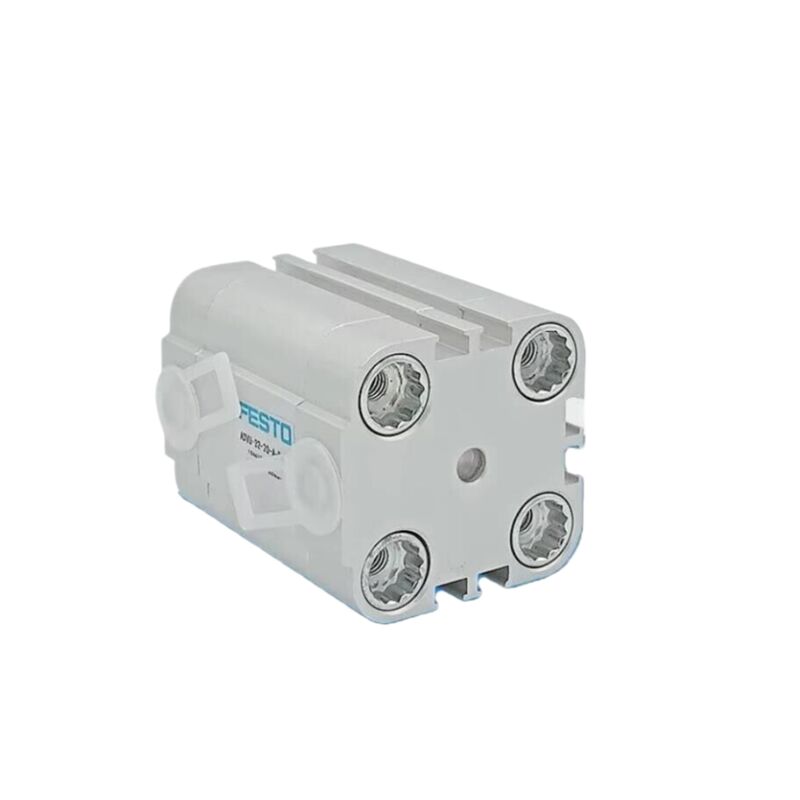

Product Description:
The Festo ADVU-12 is a compact pneumatic cylinder designed with a 12 mm bore size. It features a double-acting mechanism, allowing for controlled motion in both directions. This cylinder is equipped with an integrated magnetic piston, which enables precise position sensing during operation.
In addition to its compact design, the ADVU-12 comes with elastic cushioning rings located at both ends, known as P-type cushioning. These cushions help to absorb shocks and reduce wear, enhancing the durability and smoothness of the cylinder's movement.
This model is available in various standard stroke lengths, ranging from 5 mm up to 40 mm. Customers can choose between piston rods with internal threads (designated as ‑P‑A) or external threads (designated as ‑A‑P‑A) according to their specific installation requirements.
The operating pressure for the Festo ADVU-12 spans from 1.2 to 10 bar, making it suitable for a wide array of industrial applications. Its compact size combined with reliable position feedback makes it an excellent choice for automation systems where space saving and precise control are essential.
Features:
Ultra-Compact Design
This product features an ultra-compact design that requires up to 50% less installation space compared to cylinders conforming to ISO 15552 standards. Such a compact size makes it an excellent choice for applications with tight machine layouts where space saving is crucial.
Double-Acting Operation
The cylinder operates in a double-acting manner, delivering driving force during both the forward and return strokes. This design ensures consistent and easily controllable motion throughout the entire operating cycle.
Integrated Magnetic Piston
Equipped with an integrated magnetic piston, the device allows for non-contact position sensing through proximity sensors. Additionally, these sensors can be replaced or changed without requiring any mechanical adjustments, offering ease of maintenance and flexibility.
Elastic Cushioning (P-type)
The elastic cushioning feature, denoted as P-type, helps to absorb impact energy at the end positions of the stroke. This significantly minimizes vibration and noise, enhancing the overall operational smoothness and longevity of the cylinder.
Robust and Corrosion-Resistant Materials
Constructed using high-quality materials, the cylinder includes an anodised aluminium barrel and end caps, a stainless steel piston rod, and NBR/TPE-U seals. These materials provide a corrosion resistance level of CRC 2, making the cylinder suitable for demanding industrial environments.
Flexible Mounting Options
The design incorporates through-holes on the barrel and offers a wide assortment of mounting accessories. This makes installation versatile and adaptable to various machine configurations and requirements.
Two Piston Rod Thread Options
Users can select between two piston rod thread types: an internal thread (‑P‑A) or an external thread (‑A‑P‑A). This flexibility allows compatibility with different load attachments and application needs.
Technical Parameters:
| Series |
ADVU |
| Ambient Temperature |
-20 - +80 °C |
| Brand |
Festo |
| Operating Pressure |
1.2 - 10 Bar |
| Bore |
12 mm |
| Operation |
Double-acting |
Applications:
Automated assembly lines benefit greatly from compact workstations designed for tasks such as clamping, positioning, sorting, stopping, and ejecting various workpieces efficiently. These stations enhance productivity by streamlining the handling process within a confined space.
In the field of electronics and semiconductor manufacturing, precision is crucial. Activities like pick-and-place operations, integrated circuit (IC) handling, printed circuit board (PCB) depaneling, and assembling delicate components require highly accurate and reliable automation solutions.
Packaging and filling machinery often operate within limited space constraints, performing tasks such as pushing cartons, applying sealing pressure, and actuating valves. These machines rely on compact mechanisms to execute their functions smoothly and consistently.
Medical devices and laboratory automation demand gentle and controlled motion with low force. This is essential for diagnostic equipment, transporting samples, and managing liquid handling processes, ensuring safety and accuracy in sensitive applications.
Printing and textile machines handle tasks like paper positioning, cutting presses, and yarn clamping, even within environments exposed to oil or ink. Robust and reliable mechanisms are necessary to maintain performance under such challenging conditions.
Robot end effectors, including compact pneumatic gripper drives, are integral to collaborative robots and pick-and-place units. Their design focuses on efficiency and adaptability for various gripping and manipulation tasks in automation settings.
Support and Services:
Our Piston Pneumatic Cylinders are designed for high performance and durability in various industrial applications. For technical support, please ensure that you have the model number, specifications, and operating conditions ready to facilitate efficient assistance.
Installation guidelines recommend proper alignment and secure mounting to avoid cylinder damage and ensure optimal performance. Use clean, dry air to prevent contamination and wear.
Regular maintenance includes checking for air leaks, inspecting seals and rods for wear, and lubricating as specified in the product manual. Replace any damaged components promptly to maintain safety and functionality.
For troubleshooting, refer to the common issues section in the manual, which covers topics such as air leakage, insufficient force, and abnormal noises. Ensure that operating pressures and loads are within the specified limits.
We offer repair and replacement services for defective parts under warranty conditions. Extended service plans and on-site support are also available to minimize downtime and maintain productivity.
For detailed technical documentation, CAD drawings, and compatibility charts, please visit our official product support website.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static foam and placed in a sturdy, custom-fitted cardboard box to prevent any movement or damage. The packaging materials are chosen to withstand shocks, vibrations, and moisture, guaranteeing the product arrives in perfect condition.
For shipping, we offer multiple options including standard ground, expedited, and international delivery. All shipments are tracked with a reliable courier service, providing real-time updates until the product reaches your doorstep. We also comply with all applicable shipping regulations to ensure safe and timely delivery.
In addition, bulk orders are palletized and securely strapped to facilitate easy handling and reduce the risk of damage. Special handling instructions can be accommodated upon request to meet specific customer requirements.
