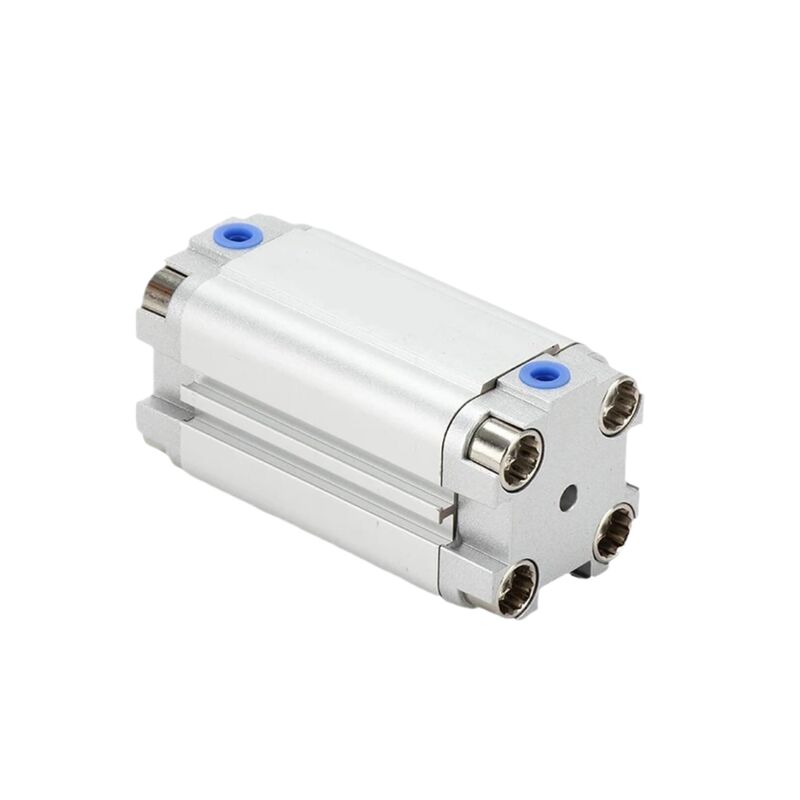

ADVU Series Pneumatic Cylinder Festo ADVU-12-30-A-P-A 156591 External Thread 12x30mm M5 Port Double-Acting Cylinder Magnetic Piston ISO 6432 Compact

Product Description:

The Festo ADVU-12 is a compact pneumatic cylinder designed with a double-acting mechanism. It features a 12 mm bore and includes an integrated magnetic piston which allows for precise position sensing. This makes it highly suitable for automation systems that demand accurate feedback.

This cylinder is equipped with elastic cushioning rings on both ends, known as P-type cushioning, which helps to absorb shocks and reduce wear during operation. It is available in a variety of standard stroke lengths, ranging from 5 mm to 40 mm, providing flexibility to suit different application requirements.

For the piston rod, customers can choose between internal thread options (‑P‑A) and external thread options (‑A‑P‑A), depending on their installation needs. The ADVU-12 operates effectively within a pressure range of 1.2 to 10 bar, ensuring reliable performance under varying conditions.

Overall, the Festo ADVU-12 compact cylinder is ideal for automation tasks where space is limited and dependable position feedback is essential.

Features:

The ultra-compact design of this product requires up to 50% less installation space compared to ISO 15552 cylinders. This makes it an excellent choice for applications where machine layouts are tight and space is at a premium.

Featuring double-acting operation, the cylinder delivers force in both the forward and return strokes. This ensures smooth, controllable motion throughout the entire cycle, enhancing performance and reliability.

An integrated magnetic piston allows for non-contact position sensing by using proximity sensors. This design enables sensor replacement without the need for mechanical adjustments, simplifying maintenance and reducing downtime.

The elastic cushioning (P-type) effectively reduces impact energy at the end positions. This minimizes vibration and noise, contributing to a quieter and longer-lasting operation.

Constructed from robust and corrosion-resistant materials, the cylinder boasts an anodized aluminium barrel and end caps, a stainless steel piston rod, and NBR/TPE-U seals. It achieves a corrosion resistance level of CRC 2, making it suitable for demanding industrial environments.

Flexible mounting options are provided through through-holes on the barrel, complemented by a wide range of mounting accessories. This versatility allows for easy and adaptable installation in various settings.

Additionally, there are two piston rod thread options available. Users can select an internal thread (-P-A) or an external thread (-A-P-A) to accommodate different types of load attachments, enhancing compatibility with diverse equipment.

Technical Parameters:

This compact cylinder from Festo is an ideal automation cylinder, designed as a mini cylinder for efficient pneumatic applications.

Applications:

Automated assembly lines are equipped with compact stations that handle various tasks such as clamping, positioning, sorting, stopping, and ejecting workpieces efficiently. These stations are designed to optimize space while ensuring precise control over each operation.

In the field of electronics and semiconductor manufacturing, automation plays a crucial role by enabling precise pick-and-place operations, integrated circuit handling, printed circuit board depaneling, and the assembly of delicate components. These processes demand high accuracy and gentle handling to maintain product integrity.

Packaging and filling machinery benefit from automated systems that perform actions like carton pushing, sealing press operations, and valve actuation within confined spaces. These compact solutions improve throughput while maintaining reliability in tight production environments.

Medical devices and laboratory automation utilize smooth and low-force motion mechanisms to facilitate diagnostic equipment operation, sample transportation, and liquid handling tasks. Such automation ensures gentle yet effective manipulation of sensitive materials and instruments.

In printing and textile machinery, automation aids in tasks such as paper positioning, cutting press control, and yarn clamping, even under challenging conditions involving oily or inky environments. These applications require robust and precise equipment capable of enduring harsh industrial settings.

Robot end effectors often incorporate compact pneumatic gripper drives tailored for collaborative robots and pick-and-place units. This integration enables versatile and efficient handling solutions suited for various automated processes.
