Product Description:

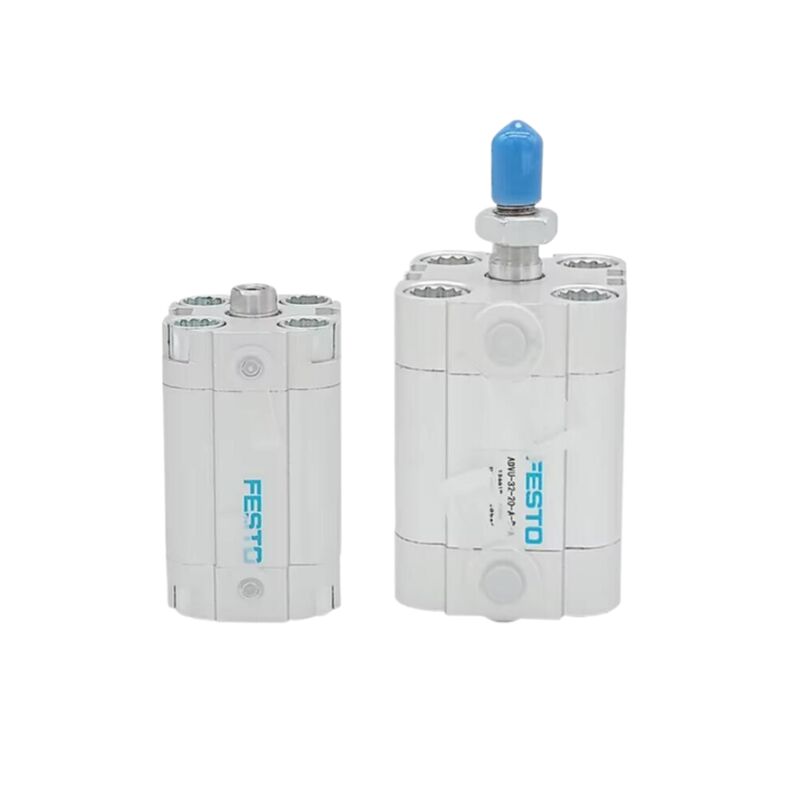

The Festo ADVU-12 is a compact pneumatic cylinder designed with a double-acting mechanism. It features a 12 mm bore and an integrated magnetic piston, which allows for precise position sensing during operation.
This cylinder is equipped with elastic cushioning rings on both ends, known as P-type cushioning, to ensure smooth and controlled movement. It is available with standard stroke lengths ranging from 5 mm to 40 mm, offering flexibility for various application needs.
Additionally, the piston rod comes in two thread options: internal thread (‑P‑A) or external thread (‑A‑P‑A). The cylinder operates effectively within a pressure range of 1.2 to 10 bar, making it suitable for diverse industrial environments.
Overall, the Festo ADVU-12 is an excellent choice for automation projects that require compact design and reliable position feedback in confined spaces.
Features:
The ultra-compact design of this cylinder offers up to 50% reduction in installation space when compared to ISO 15552 cylinders. This makes it an excellent choice for applications where space is limited and machine layouts are tight.
Featuring double-acting operation, the cylinder delivers force during both the forward and return strokes. This ensures smooth, controllable, and reliable motion throughout its cycle.
An integrated magnetic piston allows for non-contact position sensing via proximity sensors. This design enables easy sensor replacement without the need for mechanical adjustments, enhancing maintenance efficiency.
The elastic cushioning, designated as P-type, absorbs impact energy at the cylinder’s end positions. This helps to minimize vibration and reduce noise levels during operation, contributing to a quieter and smoother process.
Constructed from robust and corrosion-resistant materials, the cylinder features an anodised aluminium barrel and end caps, a stainless steel piston rod, and NBR/TPE-U seals. It meets corrosion resistance level CRC 2, making it suitable for demanding industrial environments.
Installation is made flexible with through-holes on the barrel and a broad selection of mounting accessories. This versatility allows for easy adaptation to various mounting requirements.
Two piston rod thread options are available: an internal thread (‑P‑A) and an external thread (‑A‑P‑A). This variety ensures compatibility with different types of load attachments, providing greater application flexibility.
Technical Parameters:
| Operating Pressure |
1.2 - 10 Bar |
| Bore |
12 mm |
| Operation |
Double-acting |
| Ambient Temperature |
-20 to +80 °C |
| Brand |
Festo |
| Series |
ADVU |
Applications:
Automated assembly lines benefit greatly from compact stations that handle a variety of tasks such as clamping, positioning, sorting, stopping, and ejecting workpieces efficiently. These integrated functions ensure smooth and continuous operation in manufacturing processes.
In the field of electronics and semiconductor manufacturing, precision is paramount. Applications include exact pick-and-place operations, careful handling of integrated circuits, PCB depaneling, and the assembly of sensitive components, all requiring meticulous attention to detail.
Packaging and filling machinery often operates within confined spaces, where tasks like carton pushing, sealing presses, and valve actuation need to be performed reliably. These machines are designed to optimize space while maintaining high performance in packaging workflows.
The medical devices and laboratory automation sectors demand smooth, low-force movements for equipment used in diagnostics, sample transportation, and liquid handling. Such gentle motion control is critical to ensure accuracy and prevent damage to delicate samples and instruments.
Printing and textile machines face challenging environments that may be oily or covered with ink. Processes such as paper positioning, cutting presses, and yarn clamping must be executed proficiently despite these conditions, ensuring consistent product quality.
Robot end effectors, particularly compact pneumatic gripper drives, play a vital role in collaborative robots and pick-and-place systems. Their design focuses on space-saving and precise grasping to improve automation efficiency across various industries.
