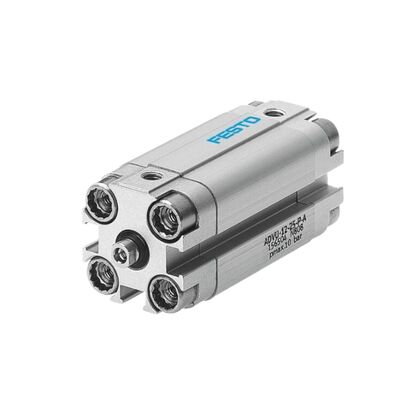

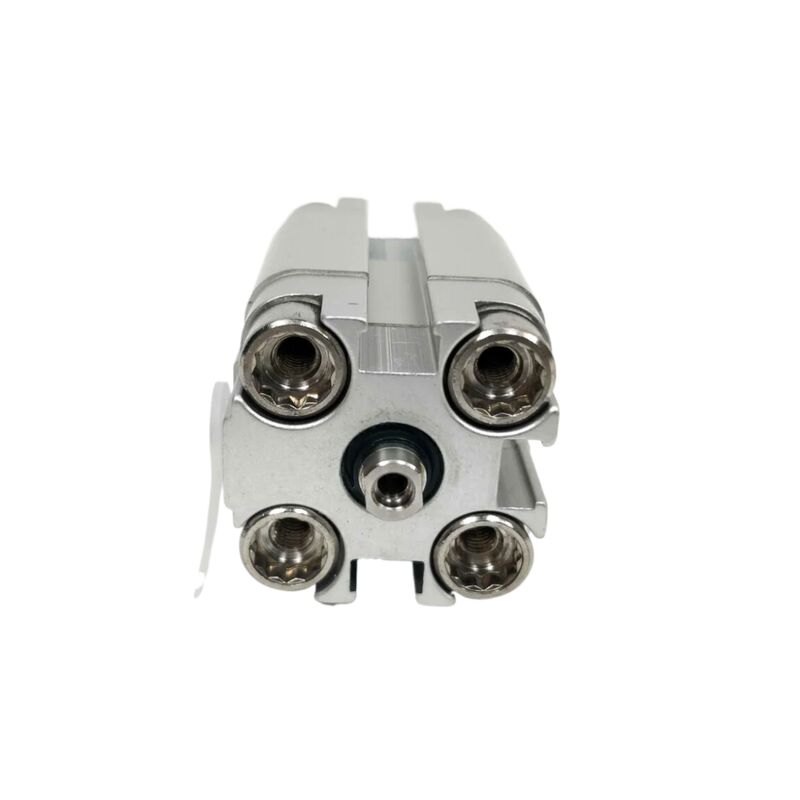

Pharmaceutical Industry ADVU-16-25-A-P-A 156597 Festo External Thread Pneumatic Cylinder 16mm Bore 25mm Stroke Double-Acting M5 Port Magnetic Piston Compact ISO 6432

Product Description:

The Festo ADVU-16 is a compact pneumatic cylinder designed for double-acting operation. It features a 16 mm bore size and includes an integrated magnetic piston, which enables precise position sensing. This makes it highly suitable for applications that demand accurate monitoring of the cylinder’s position.

Equipped with elastic cushioning rings at both ends, known as P-type cushioning, the ADVU-16 ensures smooth and noise-reduced movements during operation. The cylinder is offered with standard stroke lengths ranging from 5 mm up to 40 mm, catering to various application requirements.

Customers can choose between different piston rod configurations: either an internal thread version designated as -P-A, or an external thread version marked as -A-P-A. The operating pressure range of this cylinder spans from 1.0 to 10 bar, providing flexibility in pneumatic systems.

Overall, the Festo ADVU-16 is an excellent choice for automation solutions where space is limited but reliable position feedback and durable performance are essential.

Features:

This pneumatic cylinder boasts an ultra-compact design, reducing installation space by up to 50% compared to cylinders adhering to the ISO 15552 standard. Its minimized footprint makes it an ideal choice for machinery with limited space, allowing for tighter and more efficient machine layouts.

Featuring double-acting functionality, the cylinder delivers force during both the forward and return strokes. This ensures consistent, manageable motion in both directions, enhancing precision and control during operation.

The integrated magnetic piston allows for non-contact position detection via proximity switches. These sensors can be installed or replaced without needing any mechanical adjustments, facilitating easy maintenance and reliable position monitoring.

Equipped with flexible cushioning rings and plates at both ends, the elastic cushioning system reduces impact energy effectively. This design minimizes vibration and noise at the cylinder's end positions, promoting smoother and quieter operation.

Constructed from robust materials, the cylinder incorporates a wrought aluminium alloy barrel and end caps, a high-alloy stainless steel piston rod, and dynamic seals made from NBR/TPE-U (PU). It meets Corrosion Resistance Class (CRC) 2 standards, making it well-suited for demanding industrial environments.

The cylinder offers versatile installation options thanks to through-holes on the barrel and a comprehensive range of mounting accessories. This flexibility allows it to be mounted securely in virtually any position.

To accommodate different load attachments and application requirements, two piston rod thread configurations are available: an internal thread (‑P‑A) and an external thread (‑A‑P‑A). This choice allows for optimal adaptability to various operational scenarios.

Technical Parameters:

Applications:

Automated assembly lines benefit from compact production stations equipped to handle various tasks such as clamping, positioning, sorting, stopping, ejecting, and managing workpieces efficiently. These systems streamline manufacturing processes by integrating multiple functions in a small footprint.

In packaging and filling machinery, essential operations like carton pushing, sealing press actuation, conveyor diverter control, and valve management are performed within confined spaces. This ensures optimal use of available space while maintaining high-speed and accurate operation.

The electronics and semiconductor manufacturing sectors rely on precise processes including pick-and-place operations, PCB depaneling, component assembly, and positioning of testing equipment. These tasks demand high accuracy and reliability to support delicate and complex production requirements.

Material handling and conveyor systems utilize rotary and clamping stopper cylinders to control conveyor lines, diverters, and distribution networks. These components help regulate the flow and sorting of materials, enhancing overall system efficiency and safety.

Within the automotive industry, compact and dependable actuators are crucial for component assembly, parts feeding, and automating production lines. Robust performance and precision are key factors that enable manufacturers to meet strict quality and efficiency standards.

Medical devices and laboratory automation require smooth and controlled linear motion to support diagnostic equipment, sample handling, and various biotechnology applications. These motions ensure delicate procedures are conducted with the utmost care and accuracy.

Robot end effectors and grippers utilize compact pneumatic drives to power collaborative robots, pick-and-place units, and automated gripping systems. This technology allows for flexible and reliable manipulation of objects in diverse automation scenarios.

In printing and textile machinery, essential functions such as paper positioning, cutting press actuation, yarn clamping, and tension control are performed reliably even in challenging environments. These capabilities enable continuous and high-quality production in demanding conditions.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please ensure that you have the model number, specifications, and any relevant operational details ready when seeking assistance.

We offer comprehensive services including installation guidance, troubleshooting, maintenance tips, and spare parts replacement to maximize the lifespan and functionality of your pneumatic cylinder.

To ensure optimal operation, regularly check for air leaks, maintain appropriate lubrication, and verify the alignment of the cylinder within your system.

Our technical support team is equipped to help with system integration, customization options, and performance optimization to meet your specific application requirements.

For detailed manuals, CAD drawings, and software tools related to the Piston Pneumatic Cylinder, please refer to our online resources or product documentation.

We are committed to providing prompt and effective support to minimize downtime and enhance the productivity of your pneumatic systems.

Packing and Shipping:

Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective film to prevent scratches and corrosion. It is then placed in a custom-fitted foam insert within a sturdy cardboard box to minimize movement and absorb shocks.

For bulk orders, multiple units are securely packed in reinforced cartons, with additional padding materials used as needed to safeguard the products. All packages are clearly labeled with product details, handling instructions, and shipping information.

Shipping is handled via trusted carriers with options for standard or expedited delivery. We ensure timely dispatch and provide tracking information so customers can monitor their shipment status in real-time. Special care is taken to comply with all regulations for pneumatic components during transportation.
