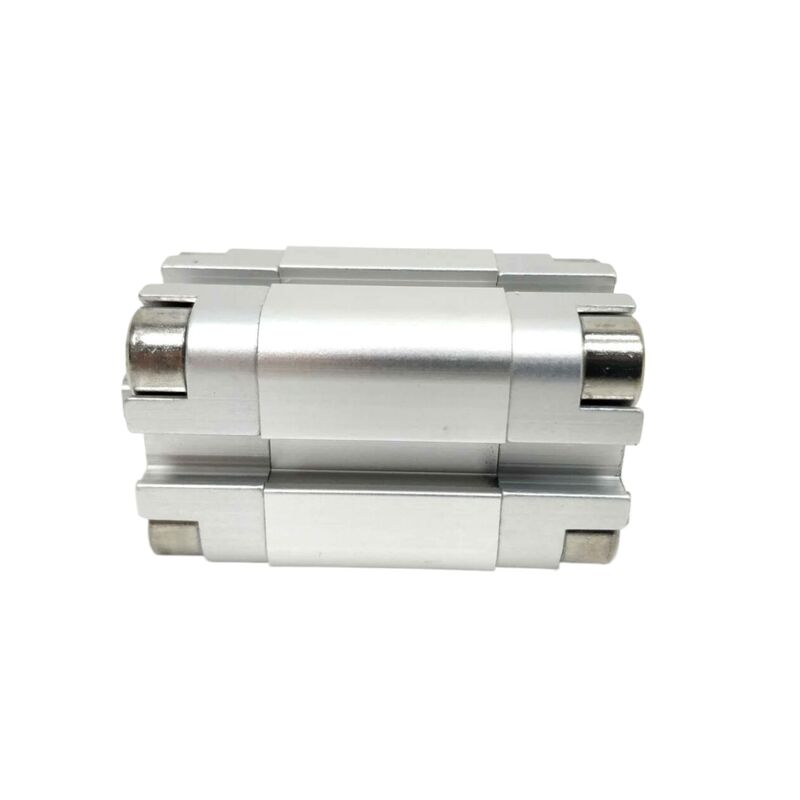

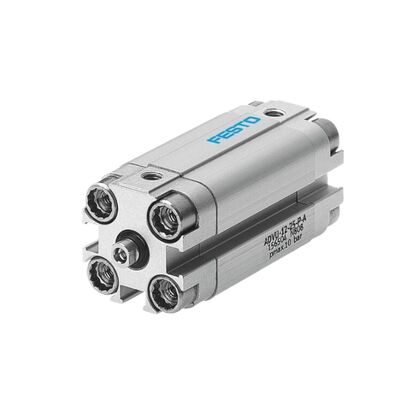

Medical Device Application ADVU-16-15-A-P-A 156595 Festo External Thread Air Cylinder 16mm Bore 15mm Stroke Double-Acting M5 Port Magnetic Ring Compact ISO 6432

Product Description:

The Festo ADVU-16 is a compact pneumatic cylinder designed for double-acting operation. It features a 16 mm bore and includes an integrated magnetic piston, which enables precise position sensing. This makes it suitable for applications where accurate feedback is essential.

Equipped with elastic cushioning rings at both ends, known as P-type cushioning, the cylinder ensures smooth operation and reduces wear, extending the product's service life. The ADVU-16 is available with a variety of standard stroke lengths, ranging from 5 mm up to 40 mm, allowing it to accommodate different automation needs.

Customers can choose between piston rods with either internal threads (-P-A) or external threads (-A-P-A), providing flexibility in mounting and installation. The cylinder operates efficiently within a pressure range of 1.0 to 10 bar, making it a reliable choice for various pneumatic systems.

Overall, the Festo ADVU-16 is ideal for compact automation setups where space is limited, yet accurate position feedback and dependable performance are required.

Features:

The design of this cylinder is ultra-compact, occupying up to 50% less installation space compared to standard cylinders based on ISO 15552. This compactness makes it an ideal choice for applications where machine layouts are tight and space is at a premium.

Featuring double-acting operation, the cylinder delivers driving force during both the forward and return strokes. This ensures consistent and controllable motion in both directions, enhancing precision and efficiency in various mechanical processes.

An integrated magnetic piston allows for non-contact position sensing using proximity switches. This design enables sensors to be mounted or replaced easily without requiring any mechanical adjustments, simplifying maintenance and improving reliability.

Equipped with elastic cushioning of the P-type, the cylinder includes flexible cushioning rings and plates at both ends. These components effectively reduce impact energy, minimizing vibration and noise at the end positions for smoother and quieter operation.

The cylinder is constructed from robust and corrosion-resistant materials, including a wrought aluminium alloy barrel and end caps, a high-alloy stainless steel piston rod, and dynamic seals made of NBR/TPE-U(PU). It meets corrosion resistance class CRC 2 standards, making it suitable for demanding industrial environments.

For versatile installation, the cylinder features through-holes on the barrel as well as a wide range of mounting accessories. This flexibility allows it to be mounted securely in any position according to the specific requirements of the application.

Customers can select between two piston rod thread options to accommodate different load attachments and needs. These include an internal thread (‑P‑A) and an external thread (‑A‑P‑A), providing adaptability across various uses.

Technical Parameters:

Applications:

Automated assembly lines utilize compact production stations for various functions such as clamping, positioning, sorting, stopping, ejecting, and efficient workpiece handling. These integrated systems enhance productivity and ensure precise operations.

In packaging and filling machinery, tasks like carton pushing, sealing press actuation, conveyor diverters, and valve control are performed effectively even within confined spaces. This allows for streamlined packaging processes without sacrificing accuracy.

The electronics and semiconductor manufacturing sector relies on precise pick-and-place operations, PCB depaneling, component assembly, and the accurate positioning of testing equipment. These activities demand a high level of precision to maintain product quality.

Material handling and conveyor systems benefit from the use of rotary and clamping stopper cylinders designed for conveyor lines, diverters, and distribution systems. These components ensure smooth and reliable transportation of goods throughout the production line.

Within the automotive industry, the focus is on component assembly, parts feeding, and comprehensive production line automation. The adoption of reliable, compact actuators is essential to meet the rigorous demands of automotive manufacturing processes.

Medical devices and laboratory automation require smooth and controlled linear motion for diagnostic equipment, sample handling, and various biotechnology applications. These precise movements contribute significantly to the accuracy and reliability of medical procedures.

Robot end effectors and grippers employ compact pneumatic drives to enhance the functionality of collaborative robots, pick-and-place units, and automated gripping systems. These drives facilitate flexibility and efficiency in robotic operations.

In printing and textile machinery, tasks such as paper positioning, cutting press actuation, yarn clamping, and tension control are performed in challenging environments. Robust and precise mechanisms are critical to maintaining consistent product quality under these demanding conditions.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a variety of industrial applications. For technical support, please refer to the user manual for installation guidelines, maintenance tips, and troubleshooting instructions to ensure optimal operation.

If you encounter any issues during installation or operation, verify that the cylinder is installed according to the specified orientation and that all pneumatic connections are secure and free from leaks. Regularly inspect the cylinder for signs of wear or damage and replace seals or components as necessary to maintain performance.

We offer comprehensive services including product customization, repair, and replacement parts to meet your specific needs. Our technical team is equipped to assist with system integration, performance optimization, and preventive maintenance planning to extend the life of your pneumatic cylinder.

For detailed technical documentation, CAD files, and application notes, please visit our website or consult the product support section. Ensuring proper use and maintenance of your Piston Pneumatic Cylinder will maximize efficiency and reduce downtime in your operations.
