Product Description:

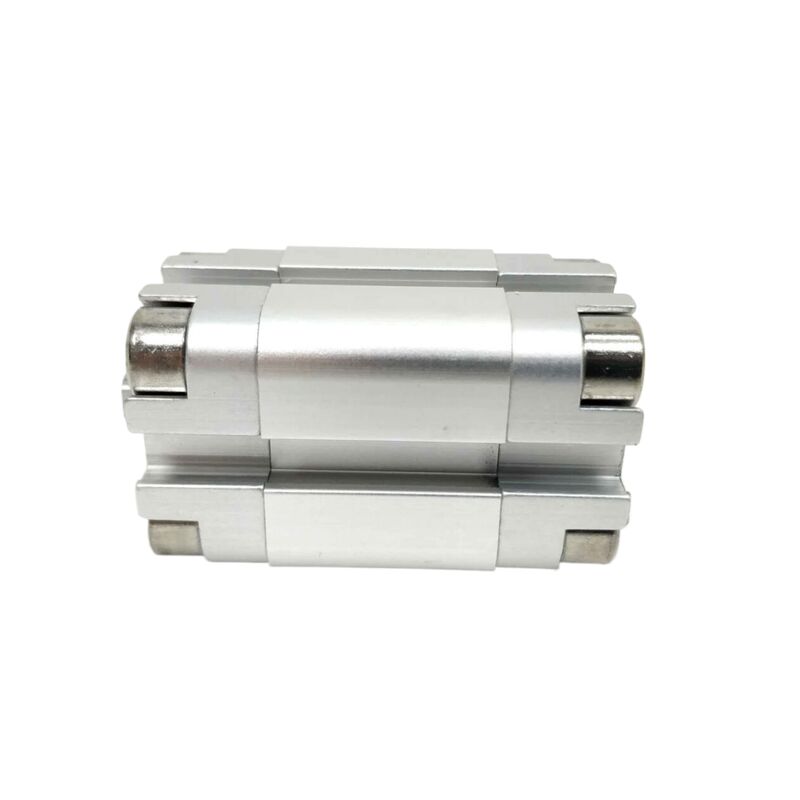

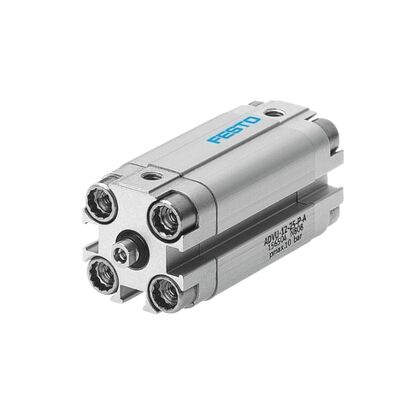

The Festo ADVU-16 is a compact pneumatic cylinder designed with a 16 mm bore and features a double-acting mechanism. It includes an integrated magnetic piston, which enables precise position sensing for enhanced operational control.
This cylinder is equipped with elastic cushioning rings at both ends, characterized as P-type cushioning, to ensure smooth and controlled motion. It is available in a range of standard stroke lengths, from 5 mm up to 40 mm, catering to various application requirements.
Customers can choose between two piston rod options: one with an internal thread, designated as -P-A, and another with an external thread, marked as -A-P-A. The device operates efficiently within a pressure range of 1.0 to 10 bar.
Due to its compact size and reliable position feedback capabilities, the ADVU-16 is ideal for automation scenarios where saving space is crucial without compromising performance.
Features:
The ultra-compact design of this cylinder offers up to 50% reduction in installation space compared to the ISO 15552 standard cylinders. This makes it an ideal choice for machines with limited space, where a compact layout is essential.
Equipped with double-acting operation, the cylinder delivers driving force during both the forward and return strokes. This feature ensures consistent and controllable bidirectional motion, enhancing overall performance and reliability.
An integrated magnetic piston allows for non-contact position sensing through the use of proximity switches. This design enables sensors to be mounted or replaced easily without requiring any mechanical adjustments, simplifying maintenance and setup.
The elastic cushioning found in the P-type model incorporates flexible cushioning rings and plates at both ends. These components help to absorb impact energy, thereby reducing vibration and noise when the piston reaches the end positions.
Constructed from robust and corrosion-resistant materials, the cylinder features a wrought aluminium alloy barrel and end caps, along with a high-alloy stainless steel piston rod and dynamic seals made from NBR and TPE-U(PU). This combination offers a corrosion resistance class of CRC 2, making it suitable for demanding industrial environments.
For versatile installation, the cylinder includes through-holes on the barrel and supports a wide range of mounting accessories. This flexibility allows the unit to be installed securely in any desired position to suit specific application requirements.
Additionally, there are two piston rod thread options available. Users can select between an internal thread (‑P‑A) or an external thread (‑A‑P‑A) configuration, enabling compatibility with various load attachments and adapting to different operational needs.
Technical Parameters:
| Bore |
16mm |
| Series |
ADVU |
| Brand |
Festo |
| Operating Pressure |
1.0 ... 10 Bar |
| Ambient Temperature |
-20 ... +80 °C |
| Operation |
Double-acting |
| Description |
ISO 6432 cylinder, Compact cylinder, Automation Cylinder |
Applications:
Automated assembly lines benefit greatly from compact production stations that efficiently handle clamping, positioning, sorting, stopping, ejecting, and overall workpiece management. These systems ensure smooth and precise operations, enhancing productivity.
In the realm of packaging and filling machinery, devices such as carton pushers, sealing press actuators, conveyor diverters, and valve controllers operate effectively within constrained spaces. Their design optimizes functionality without compromising on spatial limitations.
The electronics and semiconductor manufacturing sector demands high-precision processes like pick-and-place operations, PCB depaneling, component assembly, and accurate positioning of testing equipment. Advanced machinery meets these requirements to maintain quality and consistency.
Material handling and conveyor systems utilize rotary and clamping stopper cylinders to manage conveyor lines, diverters, and distribution networks. These components play a key role in ensuring smooth material flow and system reliability.
The automotive industry relies on dependable and compact actuators for component assembly, parts feeding, and full production line automation. These actuators help streamline manufacturing while maintaining high standards of efficiency and durability.
In medical devices and laboratory automation, smooth and controlled linear motion is essential for diagnostic equipment, sample handling, and various biotechnology applications. Precision in movement contributes to accurate results and operational safety.
Robot end effectors and grippers benefit from compact pneumatic drives that support collaborative robots, pick-and-place units, and automated gripping systems. This compactness enables flexibility and enhanced performance in robotic operations.
Finally, printing and textile machinery incorporate functions such as paper positioning, cutting press actuation, yarn clamping, and tension control, all within demanding work environments. These machines must withstand rigorous conditions while maintaining precision and reliability.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a variety of industrial applications. For technical support, please ensure you have the model number, specifications, and details of the issue ready when seeking assistance.
We offer comprehensive services including installation guidance, maintenance tips, troubleshooting support, and replacement parts availability to maximize the lifespan and functionality of your pneumatic cylinder.
To maintain optimal performance, regularly inspect the cylinder for signs of wear, leaks, or damage, and follow the recommended lubrication schedule. Our technical team is available to assist with any operational queries or technical difficulties you may encounter.
For repair services, ensure that the cylinder is returned following our specified packaging instructions to prevent further damage during transit. We recommend using genuine parts for replacements to maintain product integrity and safety standards.
Our support also includes customized solutions for specific application requirements. Please provide detailed information about your operational environment and performance needs to help us tailor the best advice and service options.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective plastic film to prevent scratches and corrosion. It is then placed in a custom-fitted foam insert to absorb shocks and vibrations. The foam insert and cylinder are enclosed within a sturdy corrugated cardboard box, designed to withstand rough handling and stacking during shipping.
For shipping, we use reliable carriers with tracking options to ensure timely and safe delivery. All packages are clearly labeled with handling instructions and product details. Additionally, multiple units can be securely packed in larger cartons with adequate padding to prevent movement and damage. We recommend inspecting the package upon arrival and reporting any damages immediately to facilitate prompt resolution.
