Product Description:

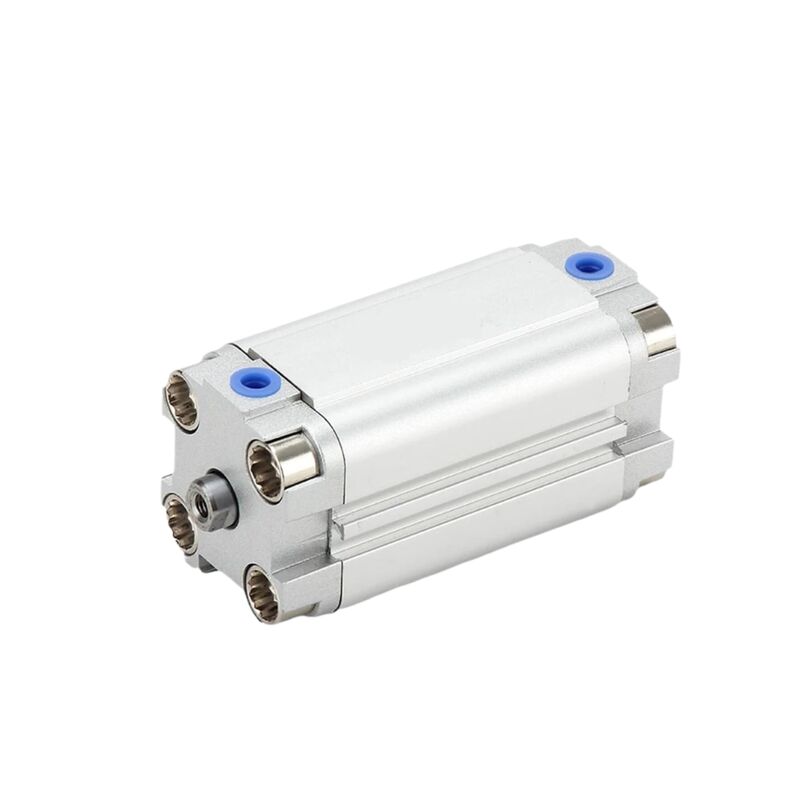

The Festo ADVU-16 is a compact pneumatic cylinder designed for double-acting operation. It features a 16 mm bore diameter, making it suitable for various precision automation tasks. In addition, the cylinder is equipped with an integrated magnetic piston, which facilitates accurate position sensing during operation.
This cylinder includes elastic cushioning rings located at both ends, known as P-type cushioning. These cushions help to absorb impact and reduce wear, enhancing the durability and smoothness of the cylinder’s movement.
The ADVU-16 is available with standard stroke lengths ranging from 5 mm to 40 mm. Customers can choose between two piston rod thread options: an internal thread (-P-A) or an external thread (-A-P-A), allowing flexibility to meet different mounting and connection requirements.
Operating within a pressure range of 1.0 to 10 bar, this pneumatic cylinder is a reliable component for automation systems that require both compact design and dependable position feedback. Its space-saving structure and integrated sensing capabilities make it an ideal choice for modern industrial applications.
Features:
The ultra-compact design of this cylinder requires up to 50% less installation space compared to the ISO 15552 standard cylinders, making it an excellent choice for machines with limited space or tight layouts.
Featuring double-acting operation, the cylinder delivers driving force in both the forward and return strokes. This ensures smooth, consistent, and controllable bidirectional motion for precise application performance.
An integrated magnetic piston allows for non-contact position sensing through proximity switches. These sensors can be easily mounted or replaced without the need for mechanical adjustments, simplifying maintenance and enhancing reliability.
The elastic cushioning mechanism, identified as P-type, incorporates flexible cushioning rings and plates at both ends. This design effectively reduces impact energy while minimizing vibration and noise at the cylinder’s end positions, contributing to quieter operation.
Constructed from robust and corrosion-resistant materials, the cylinder features a wrought aluminium alloy barrel and end caps, a high-alloy stainless steel piston rod, and dynamic seals made from NBR and TPE-U (PU). It achieves corrosion resistance class CRC 2, making it suitable for demanding industrial environments.
Installation is highly adaptable thanks to through-holes on the barrel and a wide variety of mounting accessories. This flexibility allows the cylinder to be securely mounted in virtually any orientation to meet diverse application requirements.
Users can select between two piston rod thread options to accommodate different load attachments and operational needs: an internal thread (-P-A) or an external thread (-A-P-A), providing versatility in connection methods.
Technical Parameters:
| Operating Pressure |
1.0 ... 10 Bar |
| Brand |
Festo |
| Ambient Temperature |
-20 ... +80 °C |
| Operation |
Double-acting |
| Bore |
16 mm |
| Series |
ADVU |
Applications:
In automated assembly lines, compact production stations utilize various functions such as clamping, positioning, sorting, stopping, ejecting, and handling workpieces efficiently. These integrated actions contribute to streamlined manufacturing processes and increased productivity.
Packaging and filling machinery operate effectively within limited spaces, performing tasks like carton pushing, sealing press actuation, controlling conveyor diverters, and managing valve operations. These functions ensure smooth packaging processes while optimizing the use of space.
The electronics and semiconductor manufacturing sector demands high precision in tasks such as pick-and-place operations, PCB depaneling, component assembly, and the positioning of testing equipment. Compact actuators play a crucial role in meeting these exacting requirements.
Material handling and conveyor systems benefit from rotary and clamping stopper cylinders that assist in controlling conveyor lines, diverters, and distribution systems. These components enable efficient and reliable movement of goods throughout production facilities.
Within the automotive industry, there is a significant need for reliable, compact actuators to support tasks like component assembly, parts feeding, and automation of production lines. These actuators contribute to enhancing manufacturing accuracy and repeatability.
Medical devices and laboratory automation require smooth and controlled linear motion for applications such as diagnostic equipment, sample handling, and biotechnology processes. Compact actuation solutions help maintain precision and reliability in these sensitive environments.
Robot end effectors and grippers rely on compact pneumatic drives to enable collaborative robots, pick-and-place units, and automated gripping systems to function effectively. These drives provide the necessary control and responsiveness for various robotic applications.
In printing and textile machinery, compact actuators facilitate essential tasks like paper positioning, cutting press actuation, yarn clamping, and tension control. These functions are critical for maintaining quality and efficiency in demanding operational conditions.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, ensure that the cylinder is installed according to the provided specifications and that all connections are secure. Regular maintenance includes checking for air leaks, inspecting seals for wear, and ensuring the piston rod is clean and lubricated as per the manufacturer's guidelines.
If you experience any issues with the Piston Pneumatic Cylinder, such as unusual noises, reduced speed, or air leakage, please refer to the troubleshooting section of the user manual. Common solutions include tightening fittings, replacing worn seals, and verifying air supply pressure.
We also offer a range of services including product installation assistance, routine maintenance programs, and repair services to maximize the lifespan and performance of your pneumatic cylinder. Our technical team is committed to providing detailed guidance and support to ensure your equipment operates smoothly and efficiently.
For replacement parts, upgrades, or custom configurations, please consult our product catalog or speak with your service representative to find the best solution tailored to your application requirements.
Packing and Shipping:
Product Packaging:
The Piston Pneumatic Cylinder is carefully packaged to ensure safe transportation and delivery. Each cylinder is wrapped in protective foam or bubble wrap to prevent any damage during handling. It is then placed in a sturdy, custom-fitted cardboard box that provides additional protection against impacts and environmental factors. The packaging is clearly labeled with product information, handling instructions, and safety warnings to facilitate proper storage and use.
Shipping:
Our Piston Pneumatic Cylinders are shipped using reliable carriers with tracking options to ensure timely and secure delivery. We offer multiple shipping methods to accommodate different customer needs, including standard, expedited, and freight shipping. Each shipment is carefully inspected before dispatch to guarantee product quality. International shipping is available with appropriate customs documentation to ensure smooth clearance. Customers will receive tracking information once the order has been dispatched.
