Robot End Effector Festo ADVU-16-40-P-A 156513 40mm Stroke Internal Thread Compact Cylinder 16mm Bore Double-Acting M5 Port Magnetic Piston ISO 6432

Product Description:

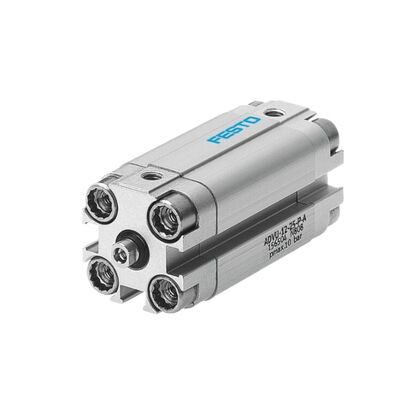

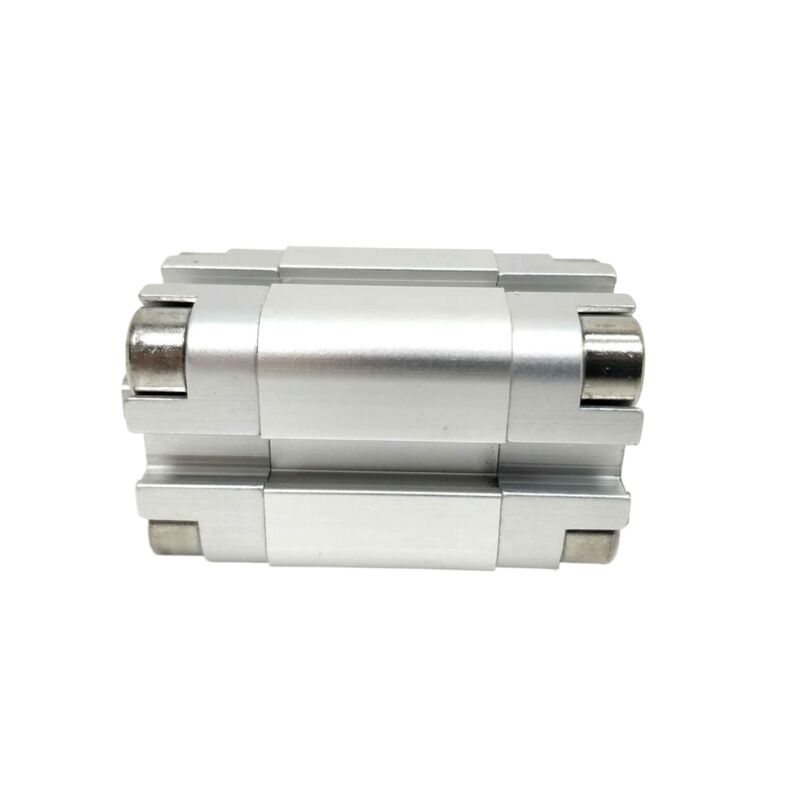

The Festo ADVU-16 is a compact pneumatic cylinder designed for double-acting operation. It features a 16 mm bore size and includes an integrated magnetic piston, which allows for precise position sensing during its operation.

This cylinder is equipped with elastic cushioning rings at both ends, known as P-type cushioning, to ensure smooth and controlled movement. It is available with standard stroke lengths ranging from 5 mm up to 40 mm to accommodate various application needs.

Customers can choose between two piston rod configurations: an internal thread option designated as -P-A, or an external thread option labeled as -A-P-A. The cylinder operates reliably within a pressure range of 1.0 to 10 bar.

Due to its compact size and integrated position feedback features, the Festo ADVU-16 is particularly well-suited for automation applications where space savings and dependable performance are critical.

Features:

Featuring an ultra-compact design, these cylinders require up to 50% less installation space compared to the ISO 15552 standard cylinders. This makes them an ideal choice for machinery with limited space, ensuring efficient use of available room without compromising performance.

The cylinders operate on a double-acting principle, delivering force during both the forward and return strokes. This capability ensures consistent and precise bidirectional motion, enhancing control in various industrial applications.

Equipped with an integrated magnetic piston, these cylinders support non-contact position sensing through proximity switches. This design allows sensors to be mounted or replaced easily, without the need for any mechanical adjustments, thereby simplifying maintenance and setup.

The elastic cushioning system, denoted as P-type, utilizes flexible cushioning rings and plates located at both ends. This feature effectively reduces impact energy while minimizing vibration and noise when the piston reaches its end positions, contributing to smoother operation and prolonged component life.

Constructed from robust and corrosion-resistant materials, the cylinders boast a wrought aluminium alloy barrel and end caps, complemented by a high-alloy stainless steel piston rod. Dynamic seals made of NBR and TPE-U (PU) enhance durability, while the corrosion resistance class CRC 2 ensures reliable performance even in demanding industrial environments.

Installation is made versatile with flexible mounting options. The barrel includes through-holes and is compatible with a wide range of mounting accessories, allowing for easy setup in virtually any orientation or position to meet diverse application requirements.

Additionally, customers can select between two types of piston rod threads to accommodate different load attachments: an internal thread (‑P‑A) or an external thread (‑A‑P‑A). This choice provides adaptability to various operational needs and enhances the cylinder's applicability.

Technical Parameters:

Applications:

In the realm of automated assembly lines, compact actuators play a crucial role in tasks such as clamping, positioning, sorting, stopping, ejecting, and handling workpieces within tightly integrated production stations. Their efficiency contributes to streamlined manufacturing processes and increased throughput.

Packaging and filling machinery benefit from these actuators by enabling carton pushing, activating sealing presses, diverting conveyors, and controlling valves within confined spaces. This allows for optimized packaging operations where space constraints are a significant consideration.

The electronics and semiconductor manufacturing sector relies on precise pick-and-place operations, PCB depaneling, component assembly, and accurate positioning of testing equipment. Compact actuators ensure the high precision and reliability demanded by these sensitive processes.

Material handling and conveyor systems utilize rotary and clamping stopper cylinders for managing conveyor lines, as well as diverters and distribution systems. The use of compact actuators enhances the control and flexibility of these material flow applications.

In the automotive industry, compact and dependable actuators are essential for component assembly, parts feeding, and broad production line automation. Their reliability under demanding conditions supports efficient mass production of automotive parts.

Medical devices and laboratory automation require smooth and controlled linear motion for diagnostic instruments, sample handling, and various biotechnology applications. Compact actuators provide the precise control necessary in these sensitive and critical environments.

Robot end effectors and grippers benefit from compact pneumatic drives, which are ideal for collaborative robots, pick-and-place units, and automated gripping mechanisms. These actuators contribute to the versatility and effectiveness of robotic handling systems.

Lastly, printing and textile machinery employ compact actuators for tasks such as paper positioning, cutting press actuation, yarn clamping, and tension control. These applications often operate in demanding environments where precision and durability are paramount.
