Product Description:

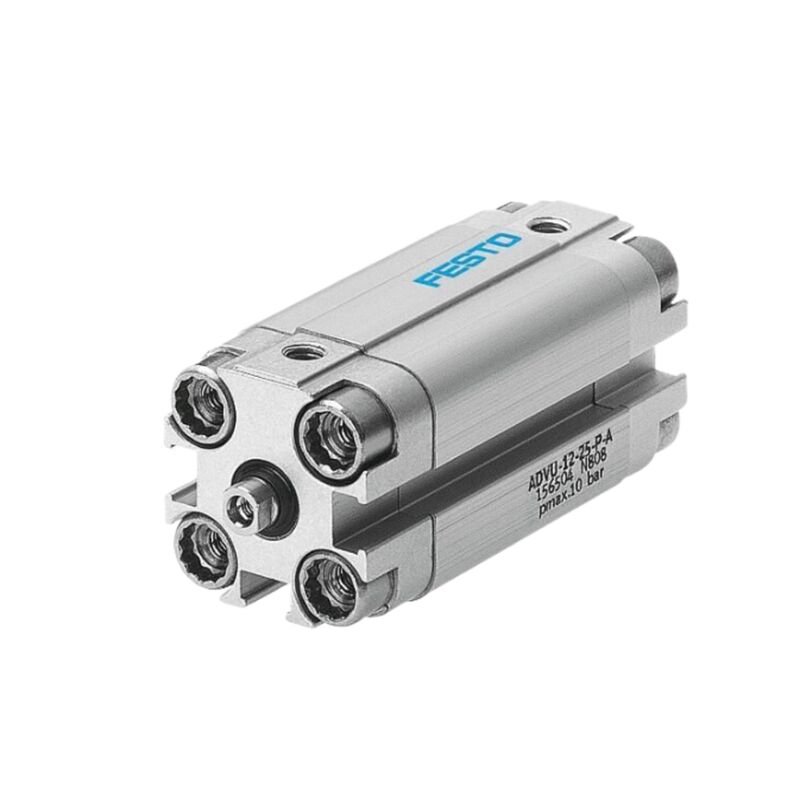

The Festo ADVU-16 is a compact pneumatic cylinder designed for double-acting operation. It features a 16 mm bore size and includes an integrated magnetic piston that allows for precise position sensing. This makes it a reliable choice for applications where monitoring piston position is critical.
Equipped with elastic cushioning rings at both ends, known as P-type cushioning, the cylinder ensures smooth and controlled motion, reducing impact and wear. It is available with standard stroke lengths ranging from 5 mm up to 40 mm, providing flexibility to suit various operational needs.
Customers can choose between two piston rod thread options: an internal thread version (-P-A) or an external thread version (-A-P-A). The cylinder operates effectively within a pressure range of 1.0 to 10 bar, making it suitable for a wide range of pneumatic automation tasks.
Thanks to its compact design and integrated position feedback, the ADVU-16 is ideal for automation applications where saving space without compromising on performance is essential.
Features:
Ultra-Compact Design
This cylinder boasts an ultra-compact design, requiring up to 50% less installation space compared to the ISO 15552 standard cylinders. It is an ideal solution for machinery with limited space, ensuring a perfect fit even in tight layouts.
Double-Acting Operation
Featuring double-acting functionality, the cylinder delivers driving force during both forward and return strokes. This ensures smooth, consistent, and controllable motion in both directions for enhanced operational efficiency.
Integrated Magnetic Piston
The integrated magnetic piston facilitates non-contact position sensing via proximity switches. These sensors can be conveniently mounted or replaced without the need for any mechanical adjustments, enhancing ease of maintenance.
Elastic Cushioning (P-type)
Equipped with flexible cushioning rings and plates at both ends, the elastic cushioning system effectively absorbs impact energy. This design significantly reduces vibration and noise at the cylinder’s end positions, resulting in smoother operation.
Robust and Corrosion-Resistant Materials
Constructed from robust materials, including a wrought aluminium alloy barrel and end caps, a high-alloy stainless steel piston rod, and durable NBR/TPE-U (PU) dynamic seals, the cylinder offers high corrosion resistance. It meets corrosion resistance class CRC 2, making it suitable for demanding industrial environments.
Flexible Mounting Options
The cylinder includes through-holes on the barrel and a wide selection of mounting accessories, enabling versatile installation possibilities. This flexibility allows it to be mounted in virtually any position according to application requirements.
Two Piston Rod Thread Variants
To accommodate diverse load attachments and application demands, there are two piston rod thread options available: an internal thread (-P-A) and an external thread (-A-P-A). This choice provides additional adaptability for various equipment setups.
Technical Parameters:
| Operation |
Double-acting |
| Operating Pressure |
1.0 ... 10 Bar |
| Series |
ADVU |
| Ambient Temperature |
-20 ... +80 °C |
| Bore |
16 mm |
| Brand |
Festo |
Applications:
Automated assembly lines require efficient mechanisms for tasks such as clamping, positioning, sorting, stopping, ejecting, and handling workpieces. These operations are often carried out within compact production stations, where space optimization is crucial.
In packaging and filling machinery, components like carton pushers, sealing press actuators, conveyor diverters, and valve controls operate effectively even in confined spaces. These elements ensure smooth packaging processes in limited environments.
The electronics and semiconductor manufacturing sector depends on highly precise operations such as pick-and-place, PCB depaneling, component assembly, and positioning of testing equipment. Accuracy and reliability are essential for maintaining product quality in these complex processes.
Material handling and conveyor systems utilize rotary and clamping stopper cylinders to manage conveyor lines, diverters, and distribution systems efficiently. These components help regulate the flow of materials, ensuring seamless operations.
Within the automotive industry, reliable and compact actuators facilitate component assembly, parts feeding, and full production line automation. These actuators play a vital role in maintaining high productivity and consistency in vehicle manufacturing.
The field of medical devices and laboratory automation benefits from smooth and controlled linear motion. Such motion is critical for diagnostic equipment, sample handling, and biotechnological applications, where precision and gentle movement are paramount.
Robot end effectors and grippers employ compact pneumatic drives that enable collaborative robots to perform pick-and-place tasks and automated gripping operations effectively. These drives contribute to enhanced flexibility and automation capabilities.
Printing and textile machinery demand robust solutions for paper positioning, cutting press actuation, yarn clamping, and tension control. These applications operate in challenging environments, requiring durable and precise control mechanisms.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting tips, and maintenance recommendations to ensure optimal operation.
We offer detailed product documentation, including user manuals, specification sheets, and CAD drawings to support your engineering and integration needs. Our technical support team is equipped to help with custom configurations and application-specific queries.
In addition to support services, we provide preventive maintenance programs and repair services to extend the lifespan of your pneumatic cylinders. Replacement parts and accessories are also available to ensure continuous and smooth operation of your equipment.
Our commitment is to deliver timely and effective solutions to maximize the productivity and reliability of your pneumatic systems.
