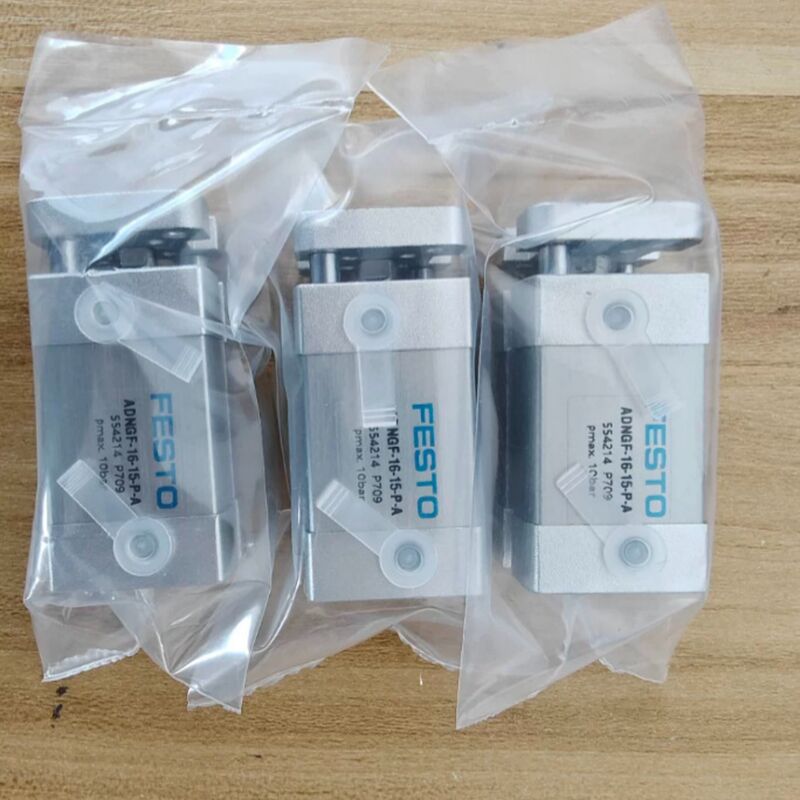

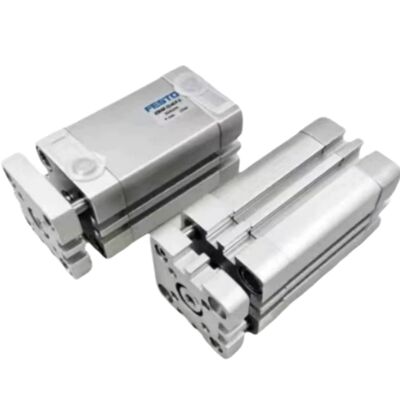

ADNGF-16-5-P-A Double Acting Thin Cylinder for electronic testing machinery

Product Description:

The FESTO ADNGF series double-acting compact cylinder is designed with a slim profile and includes a built-in guide rod, ensuring high positioning accuracy. Its sleek construction makes it suitable for applications where space is limited.

Constructed from high-quality aluminum alloy, this cylinder offers smooth operation and a long service life. The durable materials contribute to its reliable performance in demanding environments.

Equipped with a magnetic piston, the cylinder allows for easy and precise position sensing. This feature enhances control and efficiency in automated systems.

Ideal for use in automation equipment with narrow spaces, the FESTO ADNGF cylinder is widely employed for tasks such as clamping, positioning, pushing, and lifting across a variety of industrial machines.

Features:

The standard FESTO ADNGF double-acting thin cylinder features a compact and slim design, which helps to save valuable installation space in various applications.

It incorporates a built-in guide rod that provides strong anti-torsion capabilities, ensuring high positioning accuracy during operation.

The cylinder is equipped with a magnetic piston, making it simple to install a proximity sensor for precise position detection.

Constructed from high-quality aluminum alloy, the cylinder body offers excellent wear resistance, contributing to stable performance and an extended service life.

Designed to operate within a wide pressure range, it delivers consistent pushing and pulling forces along with smooth movement.

Various mounting styles are available for this cylinder, facilitating easy installation across a range of automation equipment.

Additionally, it features an integrated buffer pad that effectively reduces impact and minimizes running noise, enhancing operational comfort and durability.

Technical Parameters:

Applications:

This product is compatible with the FESTO ADNGF double-acting compact cylinder. It is extensively used in various industrial applications such as automated positioning, workpiece clamping, material pushing, stop positioning, and short-stroke lifting operations.

Its design makes it an ideal choice for electronic machinery, packaging equipment, and automotive production lines. Additionally, it is well-suited for 3C precision automation, assembly fixtures, food machinery, and other pneumatic-driven equipment where space is limited.

Thanks to its compact and efficient design, this cylinder provides reliable performance in environments requiring precise motion control within restricted spaces.

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, we provide comprehensive assistance including product selection guidance, installation instructions, maintenance tips, and troubleshooting help to ensure optimal operation.

We offer detailed technical documentation, including datasheets, user manuals, and CAD drawings, to support your engineering and integration needs. Our experienced support team is available to assist with custom configurations and answer any technical questions related to the pneumatic cylinder's specifications and compatibility.

Maintenance services include regular inspections, repair, and replacement of worn components to extend the lifespan of your pneumatic cylinders. We also provide training sessions and workshops to help your team understand best practices for handling and operating the product safely and efficiently.

For after-sales service, we ensure prompt response to warranty claims and product issues, aiming to minimize downtime and maximize productivity. Our commitment is to provide high-quality support and service to keep your pneumatic systems running smoothly.

Packing and Shipping:

Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-corrosive material and securely placed in a custom-fitted foam insert within a sturdy cardboard box. This packaging method prevents any damage from shocks, vibrations, or moisture.

For shipping, we use reliable carriers that offer tracking and insurance options. Depending on the destination, we provide multiple shipping methods including standard ground, expedited air, and freight services. All shipments are handled with care to ensure timely and safe delivery of your Piston Pneumatic Cylinder.
