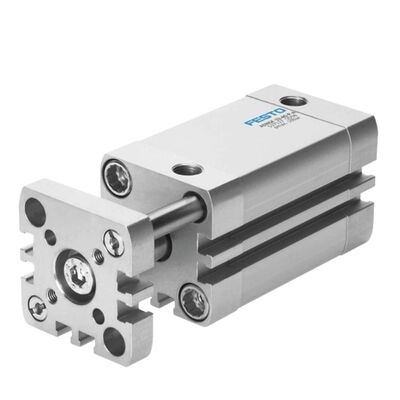

30mm Stroke Compact Double Acting Cylinder – Festo ADNGF-12-30-P-A, 12mm Bore with Guide Rod 554210

Product Description:

The FESTO ADNGF series double-acting compact cylinder is designed with a slim profile, incorporating a built-in guide rod to ensure high positioning precision. This innovative design makes it particularly suitable for applications where space is limited.

Constructed from high-quality aluminum alloy, the cylinder offers smooth operation and exceptional durability, guaranteeing a long service life even under demanding industrial conditions. Its robust materials and engineering contribute to reliable performance over time.

Equipped with a magnetic piston, the cylinder facilitates easy position sensing, enabling accurate and efficient control within automated systems. This feature enhances its versatility and functionality in various automation tasks.

Ideal for use in tight spaces, the ADNGF series is widely applied in many industrial automatic machines for functions such as clamping, positioning, pushing, and lifting. Its compact and efficient design helps optimize automation processes across different industries.

Features:

The standard FESTO ADNGF double-acting thin cylinder features a compact and slim design, which helps save installation space in various applications.

It incorporates a built-in guide rod, providing strong resistance to torsion and ensuring high positioning accuracy during operation.

The magnetic piston design simplifies the installation of proximity sensors, enabling easy and precise position detection.

Constructed with a high-quality aluminum alloy cylinder body and equipped with wear-resistant seals, this cylinder guarantees stable performance and a long service life.

With a wide working pressure range, it delivers consistent pushing and pulling forces, ensuring smooth and reliable movement.

Multiple mounting options are available, allowing for easy installation across a variety of automation equipment setups.

Additionally, it comes equipped with a buffer pad that effectively reduces impact and minimizes operating noise.

Technical Parameters:

Applications:

This product is designed to be compatible with the FESTO ADNGF double-acting compact cylinder. It finds extensive use in various automated processes such as precise positioning, workpiece clamping, material pushing, stop positioning, and short-stroke lifting tasks.

Its versatile application makes it ideal for industries like electronic machinery, packaging equipment, and automotive production lines. Additionally, it is well-suited for 3C precision automation, assembly fixtures, and food machinery.

The compact design ensures it operates efficiently in environments where space is limited, making it a perfect choice for pneumatic drive equipment requiring a small footprint.

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a wide range of industrial applications. For technical support, our team of experts is available to assist you with installation guidance, troubleshooting, maintenance tips, and optimization advice to ensure maximum productivity and longevity of the product.

We offer comprehensive services including customization options to meet your specific operational requirements, repair and replacement services, as well as regular maintenance programs to prevent downtime. Detailed product manuals and technical documentation are provided to help you understand the specifications and proper usage of the piston pneumatic cylinder.

Whether you need assistance with selecting the right cylinder model, understanding pressure ratings, or integrating the cylinder into your existing systems, our support services are dedicated to providing timely and effective solutions. We are committed to helping you achieve optimal results and sustained performance from your pneumatic cylinder investment.

Packing and Shipping:

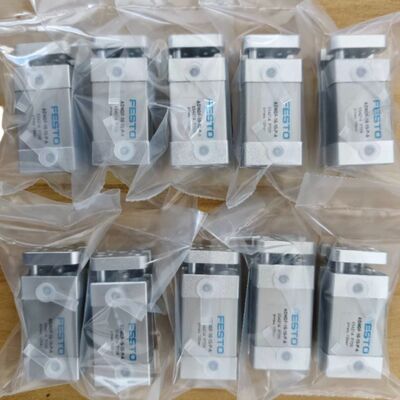

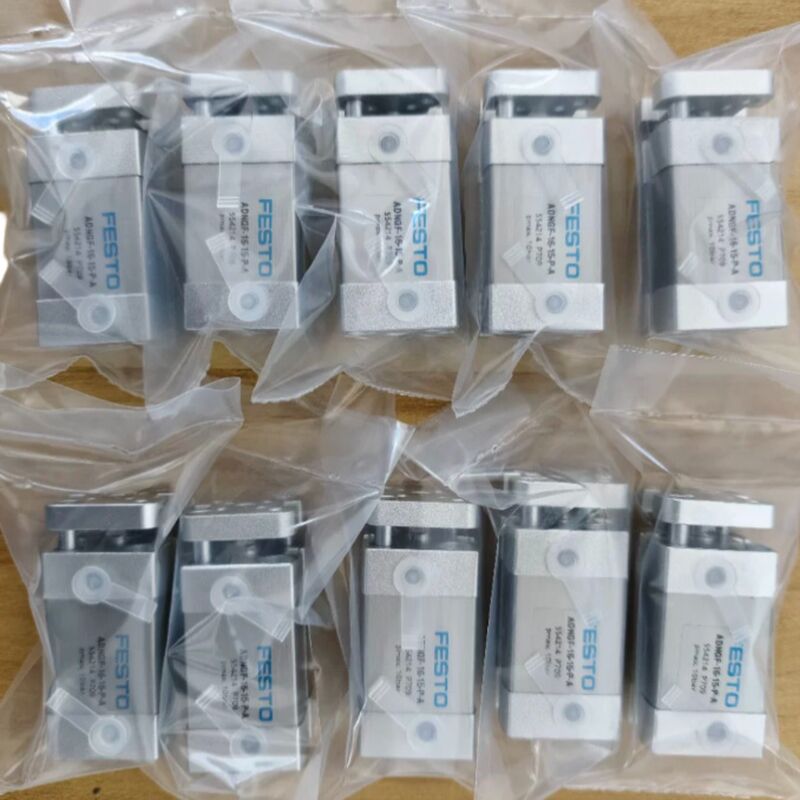

The Piston Pneumatic Cylinder is carefully packaged to ensure it arrives in perfect condition. Each cylinder is wrapped in protective foam and placed inside a sturdy cardboard box to prevent any damage during transit. The packaging is designed to withstand shocks, vibrations, and moisture exposure.

For shipping, we use reliable carriers that provide tracking and insurance options. The product is securely cushioned within the box to avoid movement and impact. Depending on the order size and destination, we offer multiple shipping methods including standard ground shipping, expedited air freight, and international delivery.

All packages are clearly labeled with handling instructions and product information to facilitate smooth customs clearance and safe handling. We prioritize timely delivery and provide customers with tracking details to monitor their shipment until it reaches their doorstep.
