High Stability FESTO ADNGF-12-25-P-A Air Cylinder For Automated Testing Machines 554209

Product Description:

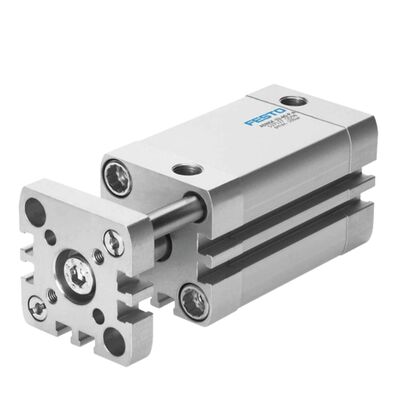

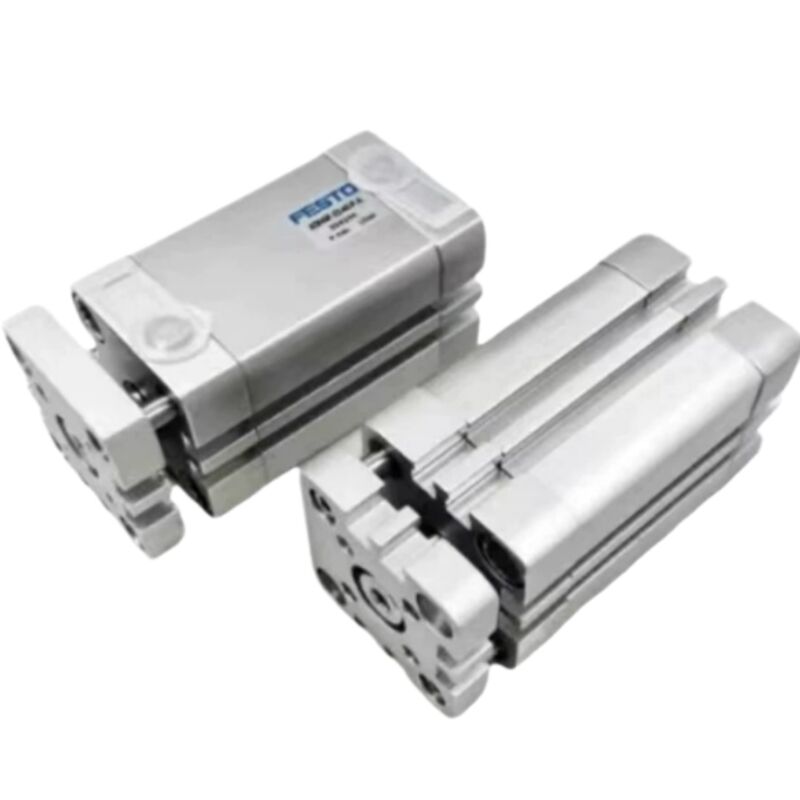

The FESTO ADNGF series compact cylinder is designed with a double-acting mechanism and boasts a slim, space-saving profile. It incorporates a built-in guide rod that enhances its structural stability and ensures high positioning precision during operation.

Constructed from high-quality aluminum alloy, this cylinder offers smooth movement and durability, resulting in an extended service life. The magnetic piston feature allows for straightforward and reliable position sensing, simplifying automation processes.

Thanks to its compact size and precise control, the ADNGF series is ideal for applications in cramped spaces within automated equipment. It is extensively utilized in various industrial machines for tasks such as clamping, positioning, pushing, and lifting, making it a versatile solution for automation needs.

Features:

The FESTO ADNGF standard double-acting thin cylinder features a compact and slim design, which helps save valuable installation space. Its streamlined structure makes it an ideal solution for applications where space is limited.

This cylinder incorporates a built-in guide rod that provides excellent resistance to torsion. This design enhances stability and ensures high positioning accuracy during operation, making it reliable for precision tasks.

Equipped with a magnetic piston, the cylinder allows for easy installation of proximity sensors to detect piston position. This feature facilitates seamless integration with automation systems, improving overall control and monitoring.

Manufactured from high-quality aluminum alloy, the cylinder body is durable and wear-resistant. The advanced sealing technology ensures stable operation and extends the service life of the cylinder, even under demanding conditions.

The FESTO ADNGF cylinder operates efficiently across a wide pressure range, delivering consistent pushing and pulling forces with smooth movement. This versatility makes it suitable for a variety of industrial applications.

Various mounting options are available, allowing for flexible installation to suit different automation equipment setups. This adaptability simplifies implementation and enhances compatibility.

Additionally, the cylinder comes equipped with a buffer pad that significantly reduces impact and operational noise. This feature contributes to a quieter working environment and helps protect the equipment from damage caused by sudden shocks.

Technical Parameters:

Applications:

This product is designed for use with the FESTO ADNGF double-acting compact cylinder, making it an ideal choice for various automation tasks. Its versatility allows it to be used in applications such as precise positioning, secure workpiece clamping, material pushing, stop positioning, as well as short-stroke lifting operations.

It is perfectly suited for a wide range of industries including electronic machinery, packaging equipment, and automotive production lines. Additionally, it plays a crucial role in 3C precision automation, assembly jigs, and food machinery, especially in environments where space is limited and pneumatic drive systems are required.

Thanks to its compact design and reliable performance, this component is a practical solution for any compact pneumatic driving equipment, enhancing efficiency and accuracy in automated processes.

Support and Services:

Our Piston Pneumatic Cylinder product is supported by a dedicated technical support team to ensure optimal performance and customer satisfaction. We offer comprehensive assistance including installation guidance, troubleshooting, maintenance tips, and performance optimization. Our experts are well-versed in pneumatic systems and can help you select the right cylinder specifications for your application.

We provide detailed product documentation, including user manuals, technical datasheets, and CAD drawings to facilitate seamless integration into your systems. Additionally, we offer training sessions and webinars to help your team understand the operation and maintenance of the piston pneumatic cylinders.

For service and repair, we recommend routine inspections to check for wear and tear, seal integrity, and proper lubrication. Our support team can guide you through replacement procedures and recommend genuine spare parts to extend the lifespan of your cylinders. We also offer custom modification services to tailor the cylinders to your specific requirements.

Our commitment to quality and customer support ensures that you receive timely and effective solutions to keep your pneumatic systems running smoothly. Please refer to our online resources or technical support portals for FAQs, troubleshooting guides, and software updates related to the piston pneumatic cylinder product.

Packing and Shipping:

Product Packaging and Shipping for Piston Pneumatic Cylinder

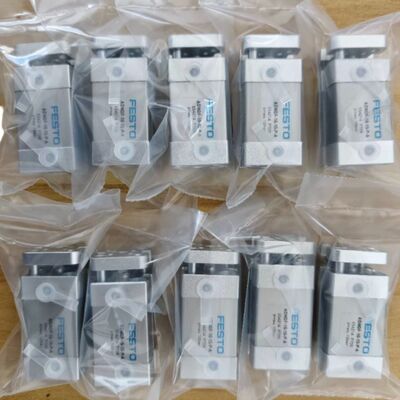

Each piston pneumatic cylinder is carefully packaged to ensure it arrives in perfect condition. The cylinder is first wrapped in protective bubble wrap to prevent any scratches or damage during transit. It is then placed in a sturdy, custom-sized cardboard box that provides additional cushioning and stability.

For bulk orders, cylinders are individually wrapped and securely packed in larger cartons with dividers to avoid movement and impact between units. All packages are clearly labeled with product information, handling instructions, and shipping details.

We offer multiple shipping options including standard ground, expedited air freight, and international shipping to meet your delivery needs. Our logistics partners ensure timely and safe delivery of the piston pneumatic cylinders to your specified address.

Upon receiving your order, please inspect the packaging for any signs of damage before signing for the shipment. In case of any issues, contact our customer service immediately for assistance.
