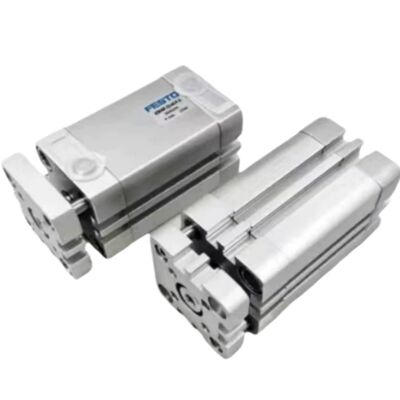

12mm Piston Diameter 20mm Stroke ADNGF-12-20-P-A Guide Cylinder for workpiece clamping and fixing

Technical Data

• Stroke20 mm
• Piston diameter12 mm
• Based on normISO 21287
• CushioningElastic cushioning rings/pads at both ends
• Mounting positionAny
• Structural designPiston Piston rod Profile barrel
• Position sensingVia proximity switch

Product Description:

The FESTO ADNGF series is a line of double-acting compact cylinders known for their slender design and integrated guide rod. These features contribute to exceptional positioning accuracy, making them highly reliable in precision applications.

Constructed from high-quality aluminum alloy, these cylinders ensure smooth operation and a long service lifespan. Their robust build enhances durability while maintaining lightweight characteristics, ideal for demanding industrial environments.

Equipped with a magnetic piston, the ADNGF series facilitates easy and accurate position sensing. This capability supports seamless integration with automation systems, improving overall efficiency and control.

Designed specifically for applications with limited space, these compact cylinders are perfect for automation equipment in tight areas. They are widely utilized for tasks such as clamping, positioning, pushing, and lifting across various types of industrial automatic machinery.

Features:

The FESTO ADNGF standard double-acting thin cylinder features a compact and slim design, which helps to save valuable installation space in various applications.

Its built-in guide rod design provides excellent anti-torsion capabilities, ensuring high positioning accuracy during operation.

The cylinder includes a magnetic piston, making it convenient to install a proximity sensor for precise position detection.

Manufactured from high-quality aluminum alloy, the cylinder body is equipped with wear-resistant seals, guaranteeing stable performance and an extended service life.

Designed to operate within a wide pressure range, this cylinder delivers consistent pushing and pulling forces with smooth movement throughout its operation.

With multiple mounting options available, the ADNGF cylinder can be easily installed on a variety of automation equipment to meet different needs.

Additionally, it comes equipped with a buffer pad that effectively reduces impact and minimizes running noise, enhancing overall operational efficiency.

Technical Parameters:

Applications:

The FESTO ADNGF double acting compact cylinder is an ideal choice for various industrial applications. Its design makes it highly suitable for automated positioning tasks, ensuring precise and reliable movements.

This compact cylinder is extensively used in workpiece clamping, material pushing, stop positioning, and short-stroke lifting operations. Its versatility allows it to perform efficiently in various mechanical processes.

Widely adopted across multiple industries, the FESTO ADNGF cylinder plays a crucial role in electronic machinery, packaging equipment, and automotive production lines. It is also perfect for 3C precision automation, assembly jigs, and food machinery.

Thanks to its compact size and robust performance, this cylinder is especially valuable in pneumatic driving equipment where space is limited, making it a preferred component in modern automated systems.

Support and Services:

Our Piston Pneumatic Cylinder products are designed for reliable performance in a wide range of industrial applications. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions.

If you encounter any issues during installation or operation, ensure that all connections are secure and that the cylinder is used within the specified pressure and temperature ranges. Regular maintenance, such as lubrication and inspection for wear or damage, will help extend the service life of the cylinder.

We offer comprehensive technical services including troubleshooting assistance, repair services, and replacement parts to ensure minimal downtime. Our expert technicians are available to guide you through diagnostics and recommend optimal solutions tailored to your application needs.

For customized solutions, our engineering team can assist with cylinder modifications or special configurations to meet unique operational requirements. We are committed to providing high-quality support and services to maximize the efficiency and longevity of your pneumatic systems.

Packing and Shipping:

Product Packaging and Shipping for Piston Pneumatic Cylinder

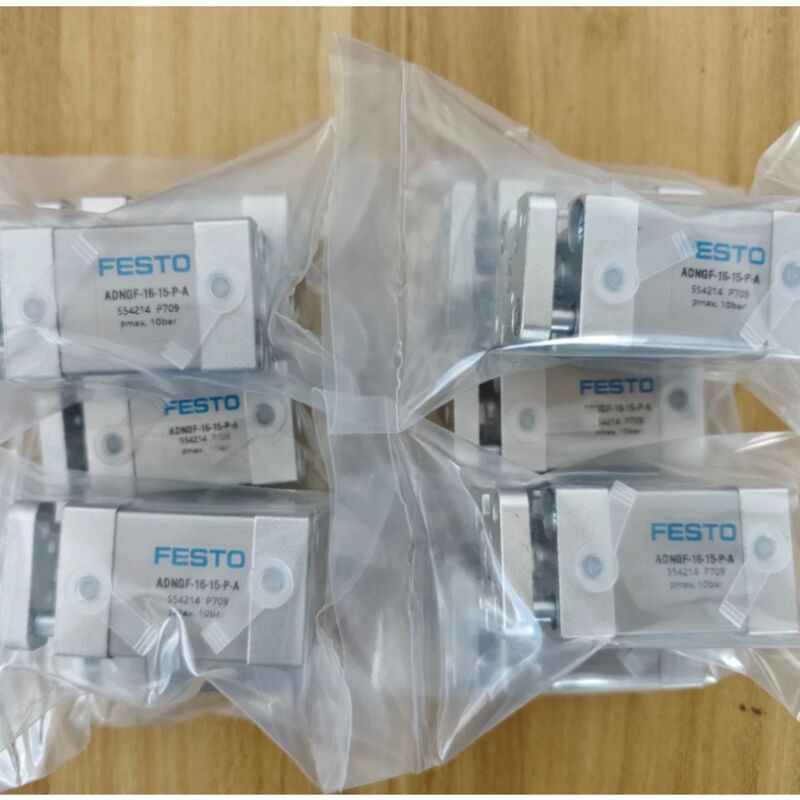

Each piston pneumatic cylinder is carefully packaged to ensure maximum protection during transportation. The cylinder is first wrapped in a protective plastic film to prevent moisture and dust ingress. It is then placed in a custom-fit foam insert or molded pulp tray to minimize movement and absorb shocks.

The protected cylinder is packed inside a sturdy corrugated cardboard box, which is reinforced with additional padding materials such as bubble wrap or packing peanuts if necessary. For bulk orders, multiple units are securely arranged in larger cartons with appropriate separators to avoid damage.

All packages are clearly labeled with product information, handling instructions, and shipping details. Fragile and orientation labels are applied as needed to ensure careful handling.

Shipping is carried out through reliable logistics partners with tracking options available. We offer various shipping methods including standard ground, expedited air freight, and international shipping to meet customer requirements. Each shipment is documented with packing lists and delivery confirmations to guarantee a smooth and secure delivery process.
