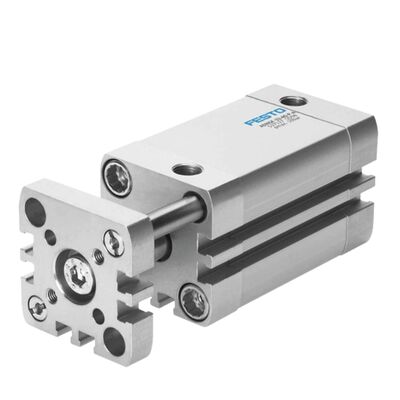

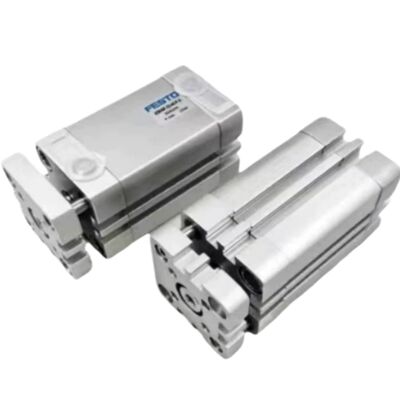

12mm Piston Diameter 15mm Stroke FESTO ADNGF-12-15-P-A Air Cylinder For Material Pushing

Product Description:

The FESTO ADNGF series double-acting compact cylinder is designed with a slim profile, integrating a built-in guide rod to ensure exceptional positioning accuracy. This compact design makes it highly suitable for applications where space is limited.

Constructed from high-quality aluminum alloy, the cylinder offers smooth operation and a long service life. Its robust materials contribute to durability and reliable performance in demanding industrial environments.

Equipped with a magnetic piston, the ADNGF series allows for easy and precise position sensing. This feature enhances control and monitoring capabilities in automated systems.

Ideal for use in narrow space automation equipment, these cylinders are widely employed in various industrial automatic machines. They excel in functions such as clamping, positioning, pushing, and lifting, making them versatile components in manufacturing processes.

Features:

The FESTO ADNGF standard double-acting thin cylinder features a compact and slim design, which helps save valuable installation space. Its streamlined structure is ideal for applications where space constraints are a concern.

This cylinder is equipped with an integrated guide rod, providing excellent resistance against torsional forces. This design enhances the cylinder's stability and ensures high accuracy in positioning during operation.

The magnetic piston incorporated in the cylinder allows for effortless installation of proximity sensors, making position detection simple and reliable. This feature is particularly beneficial for automation systems requiring precise control.

Constructed from high-quality aluminum alloy, the cylinder body offers durability and is paired with wear-resistant seals to guarantee stable performance and a long service lifespan. These materials contribute to the overall robustness of the product.

With a wide operating pressure range, the cylinder delivers consistent pushing and pulling forces along with smooth motion. This makes it suitable for a variety of industrial tasks demanding reliable actuation.

Several mounting options are available to accommodate different installation requirements, ensuring easy integration with various automation equipment. This versatility enhances its usability across multiple applications.

Additionally, the cylinder comes equipped with a buffer pad that effectively minimizes impact and reduces operational noise, promoting quieter and more efficient machine performance.

Technical Parameters:

Applications:

The FESTO ADNGF double acting compact cylinder is an ideal choice for various industrial applications. Its design makes it perfect for tasks such as automated positioning, clamping of workpieces, pushing materials, stopping at precise positions, and performing short-stroke lifting operations.

This compact cylinder is extensively used across multiple fields, including electronic machinery, packaging equipment, and automotive production lines. Its versatility allows it to fit seamlessly into 3C precision automation systems, assembly jigs, and food machinery.

Thanks to its compact size and reliable pneumatic drive, the FESTO ADNGF cylinder is especially suited for equipment operating within limited space constraints. It ensures efficient and accurate pneumatic motion control in environments where space optimization is crucial.

Support and Services:

Our Piston Pneumatic Cylinders are designed for reliable and efficient performance in various industrial applications. For optimal operation, ensure that the cylinder is installed according to the provided specifications and that all pneumatic connections are secure and free from leaks.

Regular maintenance is recommended to extend the life of the cylinder. This includes periodic inspection of seals, rods, and mounting hardware, as well as lubrication of moving parts as specified in the product manual.

If you experience any issues such as air leakage, unusual noises, or reduced performance, please refer to the troubleshooting section of the product manual. Common causes include contaminated air supply, worn seals, or misalignment of the cylinder.

Replacement parts and service kits are available to help you maintain your Piston Pneumatic Cylinder in peak condition. Using genuine parts ensures compatibility and preserves the integrity of the product.

For detailed technical support, including installation guidance, maintenance procedures, and troubleshooting advice, please consult the product documentation or visit our official support website.
