Product Description:
The Festo DAMT-V1-A series trunnion mounting kit is a genuine standard accessory specifically designed for ISO15552 standard pneumatic cylinders. This includes cylinders adhering to previously known standards such as VDMA24562, ISO6431, NF E49003.1, and UNI10290. It is compatible with Festo DSBC and DNC series cylinders, accommodating bore sizes ranging from 32mm up to 125mm.
This trunnion mounting kit enables a swing pivot installation mechanism for pneumatic actuators. It allows the cylinder to rotate freely during operation, effectively meeting the requirements for multi-angle installations that are commonly needed in automated production lines. This feature greatly enhances operational flexibility and adaptability in various industrial applications.

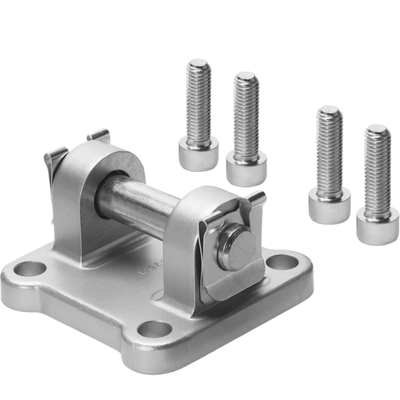

Each kit is supplied fully assembled, including the trunnion flange, clamping blocks, a high-alloy stainless steel pivot pin, and galvanized mounting screws. These components ensure a straightforward, one-step installation process without the need for additional spare parts, thereby simplifying setup and reducing downtime.
Features:
Global Standard Compliance
Our products are meticulously manufactured in accordance with the ISO15552 international cylinder standard. This ensures they are fully compatible and interchangeable with original Festo spare parts. Additionally, they seamlessly fit the mainstream ISO standard pneumatic cylinders across various well-known brands, offering great versatility and reliability.
Premium Anti-Corrosion Material
The trunnion flange, clamping pieces, and screws are made from galvanized carbon steel, providing excellent resistance to corrosion. The pivot shaft is crafted from high-alloy stainless steel with a CRC1 low corrosion resistance grade, and is free from copper and PTFE. These materials comply with RoHS and VDMA-PWIS LABS standards, making them suitable for use in lithium battery manufacturing equipment.
Ultra-Wide Working Temperature Range
Designed to perform reliably under extreme conditions, our cylinders maintain stable operation within a broad temperature range from -40℃ to 150℃. This adaptability makes them ideal for high-temperature baking lines as well as low-temperature refrigeration automation environments.
Flexible Swing Mount Design
The innovative swing mount design supports rotary trunnion installation for the cylinder. It allows adjustable assembly clearance and effectively buffers lateral forces acting on the cylinder. This design feature significantly enhances the lifespan of the cylinder by reducing wear and tear.
Full Size Complete Specification
We offer a comprehensive one-stop size range, including bore diameters of 32, 40, 50, 63, 80, 100, and 125mm. This extensive selection covers the majority of industrial standard cylinder installation requirements, ensuring you find the perfect fit for your application.
Technical Parameters:
| Material |
Galvanized Steel + Stainless Steel Pin |
| Bore |
32-125mm |
| Certification |
RoHS & LABS Approved |
| Operating Temperature |
-40℃~150℃ |
| Standard |
ISO15552 |
| Fit |
Festo DSBC/DNC Cylinder |
Applications:
Automotive Manufacturing
In the automotive manufacturing sector, automated fixtures play a crucial role. This includes stamping assembly lines and the installation of pneumatic actuators for car body welding, ensuring precision and efficiency in production processes.
Food & Beverage Machinery
The food and beverage industry utilizes equipment such as filling and capping machines. Packaging conveyor cylinders and swing mounting mechanisms are also integral components that support smooth and reliable packaging operations.
Packaging & Printing Industry
Pneumatic accessories are widely used in the packaging and printing sectors, especially in machinery involved with carton folding, sealing, and labeling. These components enhance productivity and maintain consistent quality throughout the packaging process.
Electronic & Lithium Battery Equipment
Within the electronics and lithium battery manufacturing industry, SMT automation and battery cell assembly production lines are essential. Notably, the use of copper-free materials complies with strict lithium workshop requirements, ensuring safety and performance standards.
Logistics & Warehouse Automation
Logistics and warehouse operations benefit from automation technologies such as conveyor sorters and the installation of lifting stopper cylinders. These innovations contribute to enhanced efficiency and streamlined material handling.
General Industrial Machinery
The general industrial machinery category covers a broad range of equipment, including textile, rubber, hydraulic and pneumatic devices, as well as equipment dedicated to environmental protection processing. These machines support diverse industrial applications.
