Product Description:

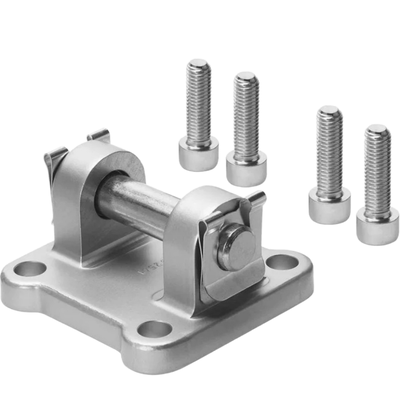

The Festo DAMT-V1-A series trunnion mounting kit is a genuine accessory designed specifically for standard pneumatic cylinders that comply with the ISO15552 standard. This standard was formerly known as VDMA24562, ISO6431, NF E49003.1, and UNI10290. The mounting kit is compatible with various Festo cylinders, including the DSBC and DNC series, and supports bore sizes ranging from 32mm up to 125mm.
This trunnion mounting kit enables swing pivot installation for pneumatic actuators, allowing the cylinder to rotate freely during operation. This feature effectively addresses the need for multi-angle installations commonly required in automated production lines, providing flexibility and enhanced functionality.
Each kit is supplied as a complete set, which includes the trunnion flange, clamping blocks, a high-alloy stainless steel pivot pin, and galvanized mounting screws. This comprehensive package ensures a straightforward, one-step installation process without the need for additional spare parts, making it convenient and time-saving for users.
Features:
Global Standard Compliance
Our products are meticulously manufactured in accordance with the ISO15552 international cylinder standard. This ensures full compatibility and interchangeability with original Festo spare parts. Additionally, they are designed to easily fit with mainstream ISO standard pneumatic cylinders from various brands.
Premium Anti-Corrosion Material
The trunnion flange, clamping piece, and screws are made from galvanized carbon steel, providing excellent resistance to corrosion. The pivot shaft is constructed from high-alloy stainless steel with a CRC1 low corrosion resistance rating. Furthermore, our materials are free from copper and PTFE, complying with RoHS and VDMA-PWIS LABS standards, making them suitable for use in lithium battery production machinery.
Ultra-Wide Working Temperature Range
These cylinders maintain stable performance across a broad temperature spectrum, from -40℃ to 150℃. This wide range allows them to be effectively used in both high-temperature baking lines and low-temperature refrigeration automation environments.
Flexible Swing Mount Design
Featuring a swing mount design, the cylinders support rotary trunnion installation with adjustable assembly clearance. This design efficiently buffers lateral forces acting on the cylinder, significantly extending the service life of the equipment.
Comprehensive Size Range
Offered in a complete range of bore sizes including 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, and 125mm, our cylinders cover the majority of industrial standard installation requirements in one convenient solution.
Technical Parameters:
| Material |
Galvanized Steel + Stainless Steel Pin |
| Bore |
32-125mm |
| Temperature Range |
-40℃~150℃ |
| Certification |
RoHS & LABS Approved |
| Standard |
ISO15552 |
| Fit |
Festo DSBC/DNC Cylinder |
Applications:
Automotive Manufacturing
This sector involves the use of automated fixtures and stamping assembly lines to enhance production efficiency. Key processes include the installation of pneumatic actuators for car body welding, ensuring precision and reliability in vehicle assembly.
Food & Beverage Machinery
In the food and beverage industry, machinery focuses on filling, capping, and packaging operations. Pneumatic cylinders are commonly used for conveyor systems and swing mounting applications, facilitating smooth and consistent production flows.
Packaging & Printing Industry
The packaging and printing sector utilizes pneumatic accessories in various equipment such as carton folding machines, sealing devices, and labeling systems. These components are essential for maintaining high-quality packaging standards.
Electronic & Lithium Battery Equipment
Automation in electronic manufacturing includes SMT processes and battery cell assembly lines. Materials used here are copper-free to comply with lithium workshop requirements, supporting safe and efficient production environments.
Logistics & Warehouse Automation
Automation solutions in logistics involve conveyor sorters and the installation of lifting stopper cylinders. These components help streamline material handling and improve warehouse operational efficiency.
General Industrial Machinery
This category covers a wide range of equipment including textile machinery, rubber processing tools, as well as hydraulic and pneumatic systems. Additionally, environmental protection processing equipment is part of this diverse industrial field.
