Product Description:
The Festo DAMT-V1-A series trunnion mounting kit is an original accessory specifically designed for standard ISO15552 pneumatic cylinders. This includes cylinders that comply with former standards such as VDMA24562, ISO6431, NF E49003.1, and UNI10290. It is compatible with Festo’s DSBC and DNC series cylinders, accommodating bore sizes ranging from 32mm to 125mm.
This trunnion mounting kit facilitates a swing pivot installation for pneumatic actuators, enabling free rotational movement of the cylinder during operation. This feature effectively addresses the demands of multi-angle installation applications, making it ideal for automated production lines where flexibility is crucial.

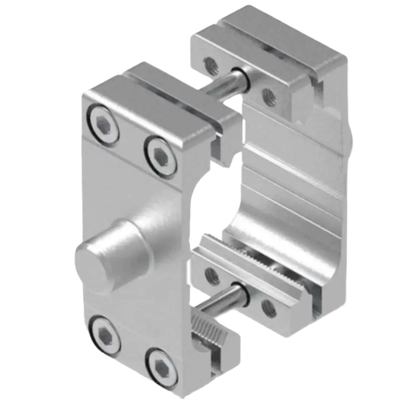

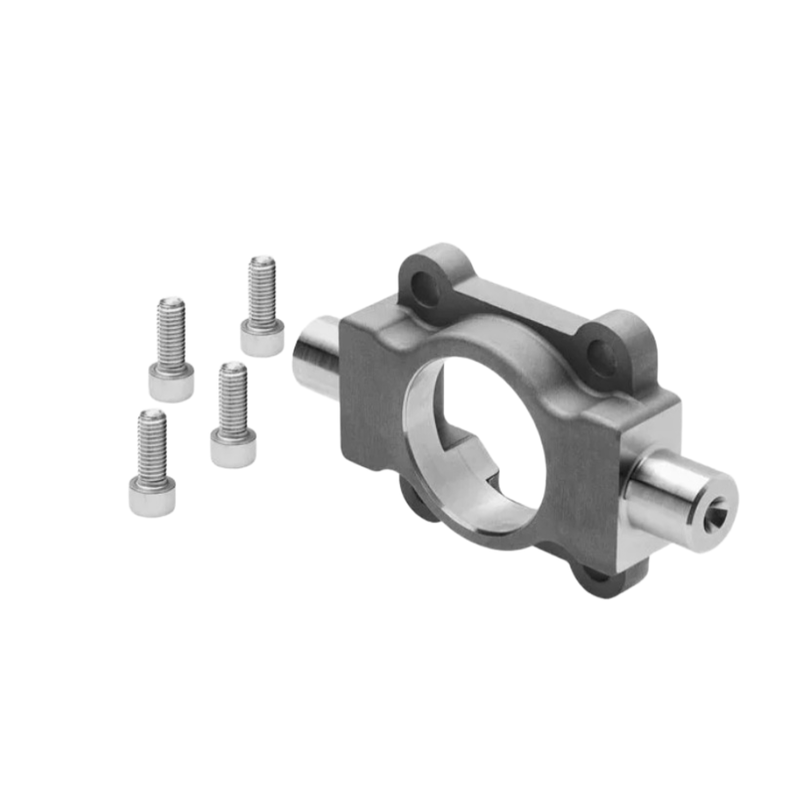

Each kit is supplied complete with all necessary components, including the trunnion flange, clamping blocks, a high-alloy stainless steel pivot pin, and galvanized mounting screws. This ensures a one-step installation process without the need for additional spare parts, streamlining setup and maintenance.
Features:
Global Standard Compliance
These cylinders are meticulously manufactured according to the ISO15552 international cylinder standard. They offer perfect interchangeability with original Festo spare parts and are compatible across major ISO standard pneumatic cylinders from various brands.
Premium Anti-Corrosion Material
The trunnion flange, clamping pieces, and screws are made from galvanized carbon steel to ensure durability. The pivot shaft is crafted from high-alloy stainless steel with a CRC1 low corrosion resistance rating. Additionally, these components are copper-free and PTFE-free, complying with RoHS and VDMA-PWIS LABS standards, making them suitable for lithium battery production equipment.
Ultra-Wide Working Temperature
Designed to perform reliably in extreme conditions, these cylinders maintain stable functionality across a temperature range from -40℃ to 150℃. This makes them ideal for high-temperature baking lines as well as low-temperature refrigeration automation environments.
Flexible Swing Mount Design
The flexible swing mount enables rotary trunnion installation for the cylinder, allowing adjustable assembly clearance. This design effectively absorbs lateral forces during operation, significantly extending the service life of the cylinder.
Full Size Complete Specification
Offering a comprehensive size range from 32mm to 125mm bore (32, 40, 50, 63, 80, 100, and 125mm), these cylinders cover most industrial standard installation requirements in a one-stop solution.
Technical Parameters:
| Bore |
32-125mm |
| Certification |
RoHS & LABS Approved |
| Material |
Galvanized Steel + Stainless Steel Pin |
| Fit |
Festo DSBC/DNC Cylinder |
| Standard |
ISO15552 |
| Temperature Range |
-40℃~150℃ |
Applications:
Automotive Manufacturing
This sector involves the implementation of automated fixtures and stamping assembly lines. It also encompasses the installation of pneumatic actuators for car body welding, enabling efficient and precise manufacturing processes.
Food & Beverage Machinery
In the food and beverage industry, pneumatic technology is applied in filling, capping, and packaging conveyor systems. This includes the mounting of cylinders and swing devices to streamline production workflows.
Packaging & Printing Industry
This industry utilizes pneumatic accessories extensively in machines responsible for carton folding, sealing, and labeling, enhancing operational performance and reliability.
Electronic & Lithium Battery Equipment
The electronics sector incorporates SMT automation and battery cell assembly production lines. Notably, copper-free materials are used to comply with stringent lithium workshop requirements.
Logistics & Warehouse Automation
Automation in logistics involves the installation of components like conveyor sorters and lifting stopper cylinders, which improve the efficiency of material handling and storage systems.
General Industrial Machinery
This broad category includes applications in textile, rubber, hydraulic, and pneumatic equipment, as well as machinery dedicated to environmental protection and processing.
