DAMT-V1-32-A 2213233 Festo Trunnion Mount For Pneumatic Cylinder RoHS LABS Approved Durable Component Ideal Pneumatic System Integration

Product Description:

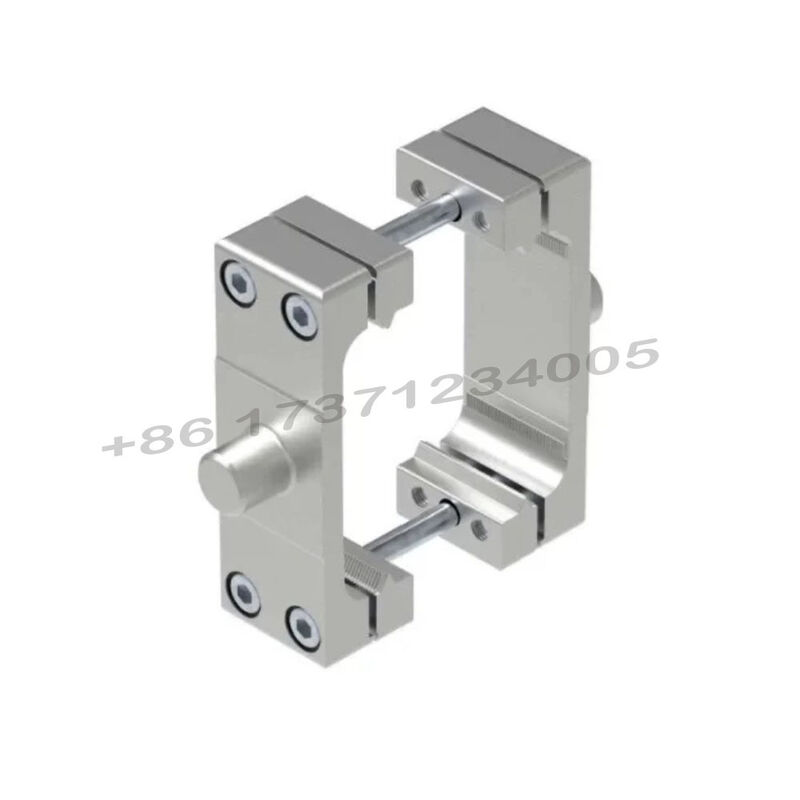

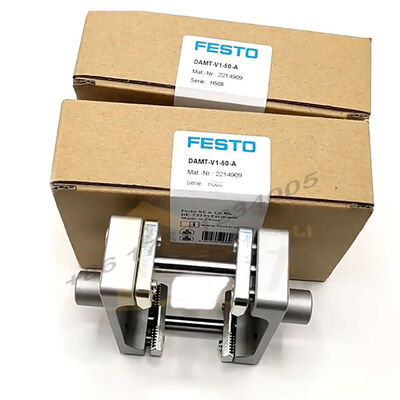

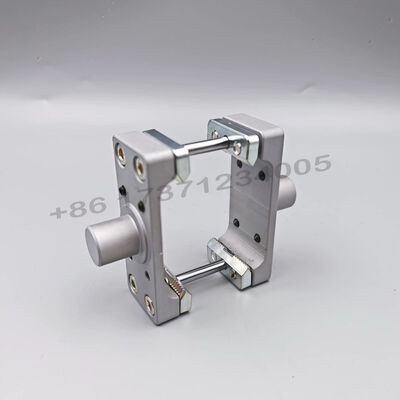

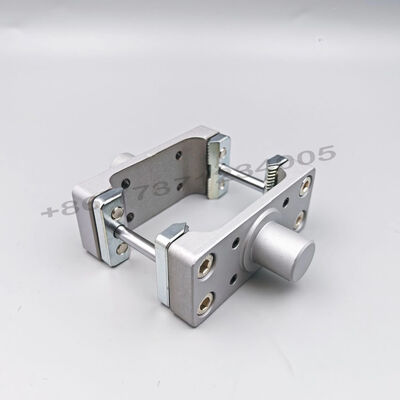

The DAMT-V1 series is an original mounting assembly from Festo, specifically designed for middle trunnion installations. It is compatible with ISO15552 standard cylinders, previously known as ISO6431 and VDMA24562. This assembly supports the DSBC and DNC series ISO standard cylinders, accommodating cylinder bore sizes of 32, 40, 50, 63, 80, 100, and 125 mm. The product model is designated as DAMT-V1-XX-A, where "XX" represents the specific cylinder bore size.

Constructed from high-quality materials, the DAMT-V1 series features a galvanized steel flange and clamping piece, a high-alloy stainless steel pivot shaft, and galvanized steel screws. It meets the CRC1 low corrosion resistance grade and uses copper-free materials, ensuring compliance with LABS/PWIS and RoHS standards. This makes it highly suitable for demanding environments such as lithium battery production workshops.

The assembly is built to operate efficiently within a wide ambient temperature range from -40°C to 150°C. It boasts a high mechanical load-bearing capacity and enables a middle pivot swing installation for pneumatic cylinders. This design helps to significantly reduce installation stress on the cylinder, preventing deformation during reciprocating movements, and simplifies onsite mounting through a complete set of fixing accessories.

The DAMT-V1 series is widely compatible with Festo DSBC and DNC standard cylinders and is extensively used in various applications. These include automated production lines, packaging equipment, printing machinery, new energy lithium systems, and pneumatic actuating systems for food processing. Its versatility and reliability make it a preferred choice in numerous industrial environments.

Technical Parameters:

• Size32
• Based on normISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
• Corrosion resistance class (CRC)1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Suitability for the production of Li-ion batteriesMetals with more than 1% by mass of copper are excluded from use. Circuit boards, lines, electrical push-in connectors and coils are excluded
• Ambient temperature-40 °C ... 150 °C
• Max. load capacity0.9 kN
• Product weight220 g
• Note on materialsRoHS compliant
• Material of screwsSteel Galvanized
• Trunnion flange materialSteel, galvanized
• Clamping piece materialSteel, galvanized
• Rod materialhigh-alloy stainless steel

Applications:

We specialize in a diverse range of advanced industrial equipment designed to enhance manufacturing efficiency. Our automation machinery integrates the latest technology to streamline various production processes.

Our packaging and filling equipment is engineered to provide precise and reliable solutions for the packaging industry, ensuring products are handled with care and accuracy.

In the field of energy storage, we offer comprehensive lithium battery production lines that support high-quality and scalable battery manufacturing.

Additionally, our printing machinery delivers exceptional performance for various printing needs, combining speed with high-resolution output.

We also provide robust rubber and plastic equipment tailored to meet the demands of modern material processing industries.

Furthermore, our general pneumatic automation systems are designed to improve operational efficiency by utilizing compressed air technology across multiple applications.
