Product Description:

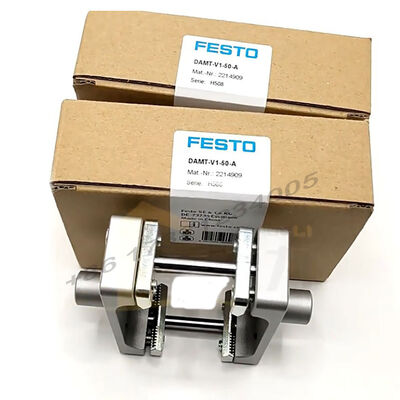

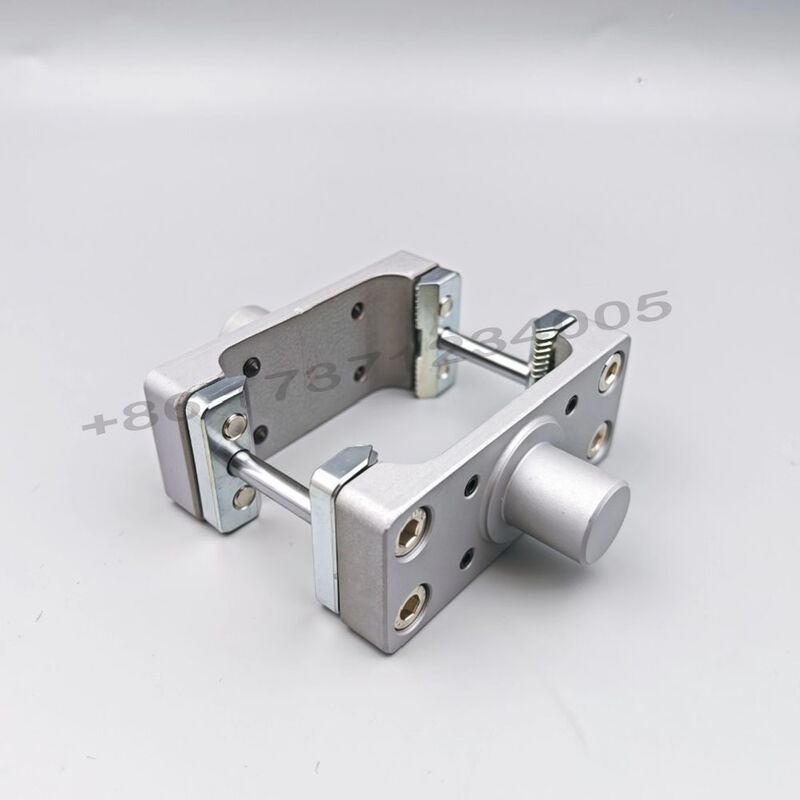

The DAMT-V1 series is the original Festo middle trunnion mounting assembly, specifically engineered for ISO15552 (previously ISO6431, VDMA24562) standard cylinders, including the DSBC and DNC series. It is compatible with ISO standard cylinders with bore sizes of 32, 40, 50, 63, 80, 100, and 125 mm. The model number follows the format DAMT-V1-XX-A, where "XX" represents the cylinder bore size.
Constructed from galvanized steel for the flange and clamping piece, the assembly features a high-alloy stainless steel pivot shaft and galvanized steel screws. It is rated CRC1, indicating a low level of corrosion resistance, and uses copper-free materials. The product complies with LABS/PWIS and RoHS standards, making it suitable for environments such as lithium battery production workshops.
Designed to operate within a wide ambient temperature range from -40°C up to 150°C, the DAMT-V1 series offers high mechanical load-bearing capacity. It enables a middle pivot swing installation of pneumatic cylinders, which effectively reduces installation stress and prevents cylinder deformation during reciprocating movements. This design also simplifies on-site mounting work by providing a complete set of fixing accessories.
The DAMT-V1 mounting assemblies are widely compatible with Festo DSBC and DNC standard cylinders. They are extensively used in various industries, including automated production lines, packaging machinery, printing equipment, new energy lithium battery devices, and pneumatic actuator systems in food processing.
Technical Parameters:
| Bore |
32-125mm |
| Fit |
Festo DSBC/DNC Cylinder |
| Certification |
RoHS & LABS Approved |
| Material |
Galvanized Steel + Stainless Steel Pin |
| Temperature Range |
-40℃~150℃ |
| Standard |
ISO15552 |
Applications:
Our expertise covers a wide range of industrial machinery, including automation machinery designed to optimize production processes and increase efficiency.
We also specialize in packaging and filling equipment, which are essential for ensuring products are safely and accurately packed for distribution.
In addition, our services extend to the production lines for lithium batteries, supporting the growing demand for energy storage solutions with advanced manufacturing technology.
Our selection includes state-of-the-art printing machinery, enabling high-quality prints for various applications in diverse industries.
Furthermore, we provide rubber and plastic equipment that caters to the needs of molded and fabricated components, supporting a variety of manufacturing sectors.
Lastly, our general pneumatic automation systems offer reliable solutions for automating repetitive tasks, improving overall operational productivity.
Packing and Shipping:
Product Packaging:
The Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static bubble wrap and placed inside a sturdy corrugated cardboard box. Internal cushioning materials, such as foam inserts or molded pulp, are used to prevent movement and absorb shocks. The packaging is labeled with handling instructions and product details for easy identification.
Shipping:
Our Piston Pneumatic Cylinders are shipped via reliable carriers with options for standard, expedited, or freight shipping depending on order size. Each package is securely sealed and tracked to ensure timely delivery. We comply with all applicable shipping regulations and provide customers with tracking information once the order has been dispatched. For international shipments, all necessary customs documentation is included to facilitate smooth clearance.
