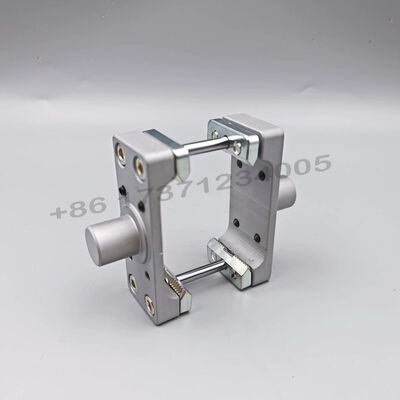

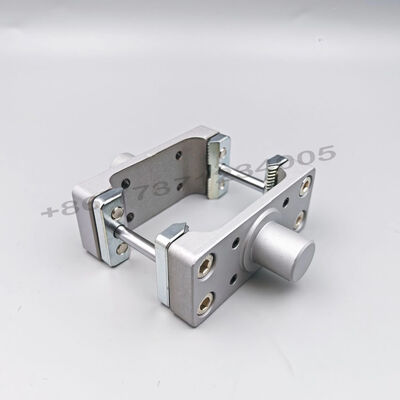

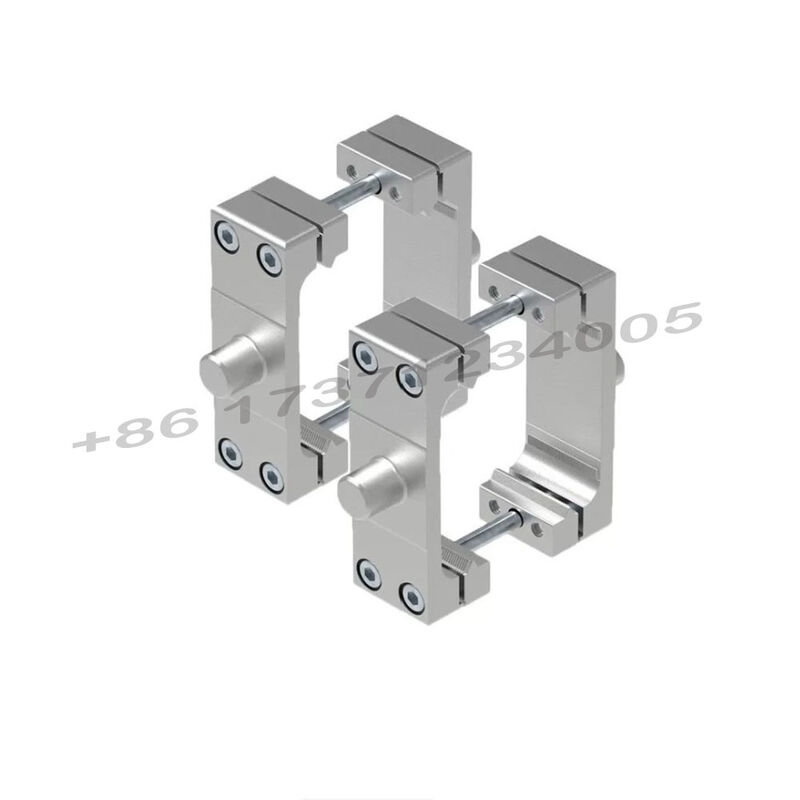

ZNCM-32 ZNCM-40 ZNCM-50 ISO15552 cylinder trunnion bracket galvanized steel stainless steel pin durable mounting bracket

Product Description:

The DAMT-V1 series is the original trunnion mounting assembly from Festo, specifically designed for the ISO15552 standard (formerly ISO6431, VDMA24562) cylinders. It is compatible with DSBC and DNC series ISO standard cylinders and supports cylinder bore sizes of 32, 40, 50, 63, 80, 100, and 125 mm. The model naming follows the format DAMT-V1-XX-A, where "XX" represents the cylinder bore size.

Constructed from galvanized steel for the flange and clamping components, the assembly features a high-alloy stainless steel pivot shaft and galvanized steel screws. It is rated CRC1 for low corrosion resistance and is made from copper-free materials, meeting LABS/PWIS and RoHS standards. This makes it especially suitable for environments such as lithium battery production workshops.

The DAMT-V1 series operates effectively within a wide ambient temperature range, from -40℃ to 150℃. Its robust mechanical load-bearing capacity enables a middle pivot swing installation of pneumatic cylinders. This design helps to significantly reduce cylinder installation stress, prevents deformation during reciprocating movements, and simplifies onsite mounting tasks thanks to a comprehensive set of fixing accessories.

These mounting assemblies are widely compatible with Festo DSBC and DNC standard cylinders. They find extensive use in various fields, including automated production lines, packaging machinery, printing equipment, new energy lithium battery devices, and pneumatic actuation systems in food processing applications.

Technical Parameters:

Applications:

Our product range includes sophisticated automation machinery designed to enhance efficiency and precision in various industries. These machines are tailored to streamline production processes while maintaining high standards of quality.

We also specialize in packaging and filling equipment, which are essential for the safe and efficient handling of products. These systems are engineered to support diverse packaging needs and ensure accurate filling operations.

Additionally, our expertise extends to the manufacturing lines for lithium batteries. These production lines integrate cutting-edge technology to improve battery assembly, testing, and quality control, meeting the demands of the modern energy market.

Our catalog further includes advanced printing machinery that supports various printing techniques and applications. These machines offer precision and reliability to fulfill complex printing requirements.

In the realm of material processing, we offer equipment specifically for rubber and plastic industries. These tools facilitate molding, shaping, and finishing processes, helping to optimize material utilization and product quality.

Lastly, our general pneumatic automation solutions provide versatile and energy-efficient systems for controlling industrial operations. These pneumatic devices are vital for automation tasks requiring speed and accuracy.
