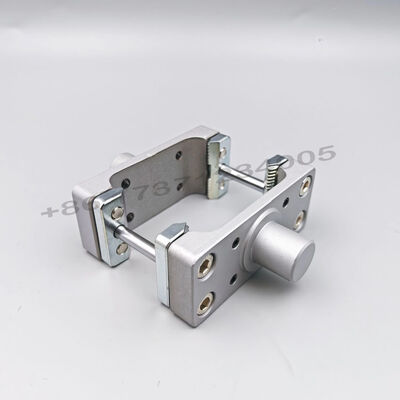

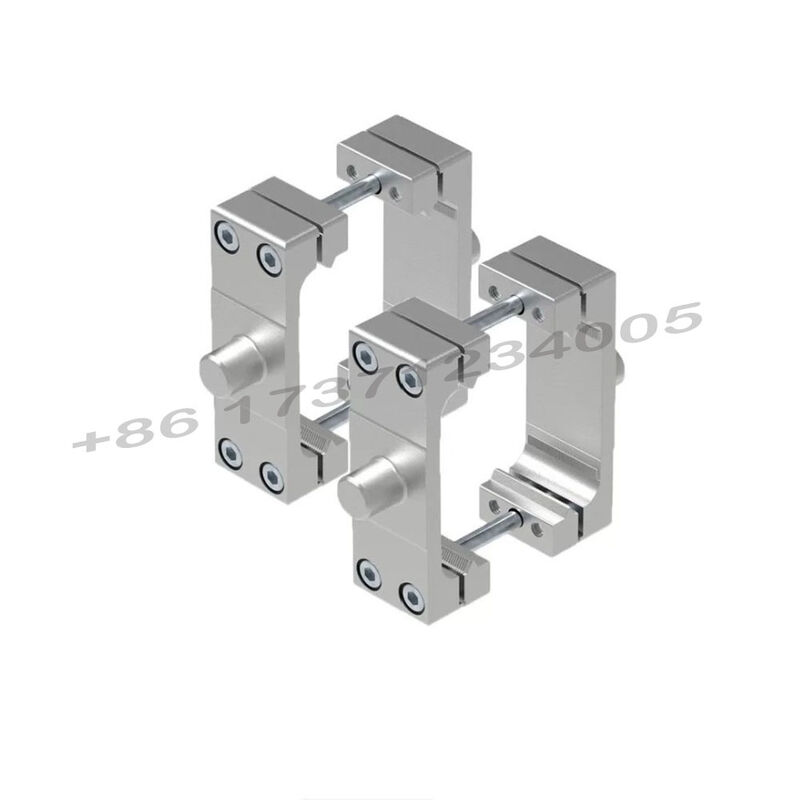

DAMT-V1-80-100-125-A Festo cylinder swing ear shaft installation component Trunnion mounting kit

Product Description:

The DAMT-V1 series represents the original Festo middle trunnion mounting assembly, specifically engineered for ISO15552 standard cylinders, which were formerly known as ISO6431 and VDMA24562. This assembly is compatible with DSBC and DNC series ISO standard cylinders and supports a range of cylinder bore sizes including 32, 40, 50, 63, 80, 100, and 125mm. The product model is designated as DAMT-V1-XX-A, where "XX" indicates the cylinder bore size.

Constructed using a galvanized steel flange and clamping piece, the DAMT-V1 features a high-alloy stainless steel pivot shaft alongside galvanized steel screws. It utilizes CRC1 grade materials offering low corrosion resistance while remaining copper-free. This design complies with LABS/PWIS and RoHS standards, making it especially suitable for environments such as lithium battery production workshops.

The assembly can operate efficiently across a wide ambient temperature range from -40℃ to 150℃. It boasts a high mechanical load-bearing capacity and allows for middle pivot swing installation of pneumatic cylinders. This design effectively reduces installation stress on the cylinder, prevents deformation during reciprocating movements, and simplifies on-site mounting tasks thanks to a comprehensive set of fixing accessories.

Widely compatible with Festo’s DSBC and DNC standard cylinders, the DAMT-V1 series finds extensive application in various automated production lines, packaging equipment, printing machinery, next-generation lithium energy devices, and pneumatic actuating systems in food processing industries.

Technical Parameters:

Applications:

Our expertise covers a wide range of automation machinery designed to enhance industrial productivity and efficiency. We provide advanced solutions that streamline manufacturing processes across various sectors.

In addition, we specialize in packaging and filling equipment that ensures precise and reliable handling of products. These systems are tailored to meet the demands of high-speed and high-volume operations.

Our lithium battery production lines are engineered to support the growing energy storage market, featuring cutting-edge technology for battery assembly and quality control.

We also offer printing machinery that delivers high-quality printing solutions suitable for diverse materials and applications, catering to businesses seeking precision and versatility.

Furthermore, our range includes rubber and plastic equipment designed for molding, shaping, and processing activities within those material sectors.

Lastly, our general pneumatic automation products provide reliable and efficient solutions for various industrial automation tasks, improving overall operational performance.

Packing and Shipping:

Each Piston Pneumatic Cylinder is carefully packaged to ensure safe delivery. The cylinder is first wrapped in protective foam or bubble wrap to prevent any damage during transit. It is then placed in a sturdy, appropriately sized cardboard box with additional cushioning materials such as air pillows or packing peanuts to minimize movement within the box. The packaging is clearly labeled with handling instructions and product details.

For shipping, we use reliable carriers that offer tracking and insurance options. The packages are handled with care to avoid any impact or exposure to moisture. We also offer expedited shipping options to meet urgent requirements. Upon receipt, customers are advised to inspect the packaging and product for any visible damage and report any issues immediately to ensure prompt resolution.
